Instrument Manual Ver. 3.5

STAP 9406

For UAV Reader version 5.4 and ﬁrmware version 7.1

BMI PN: 83-00036-01A

February 16, 2021

Table of Contents

Need help?

Do you have a question about the STAP 9406 and is the answer not in the manual?

Questions and answers

Summary of Contents for BRECHTEL STAP 9406

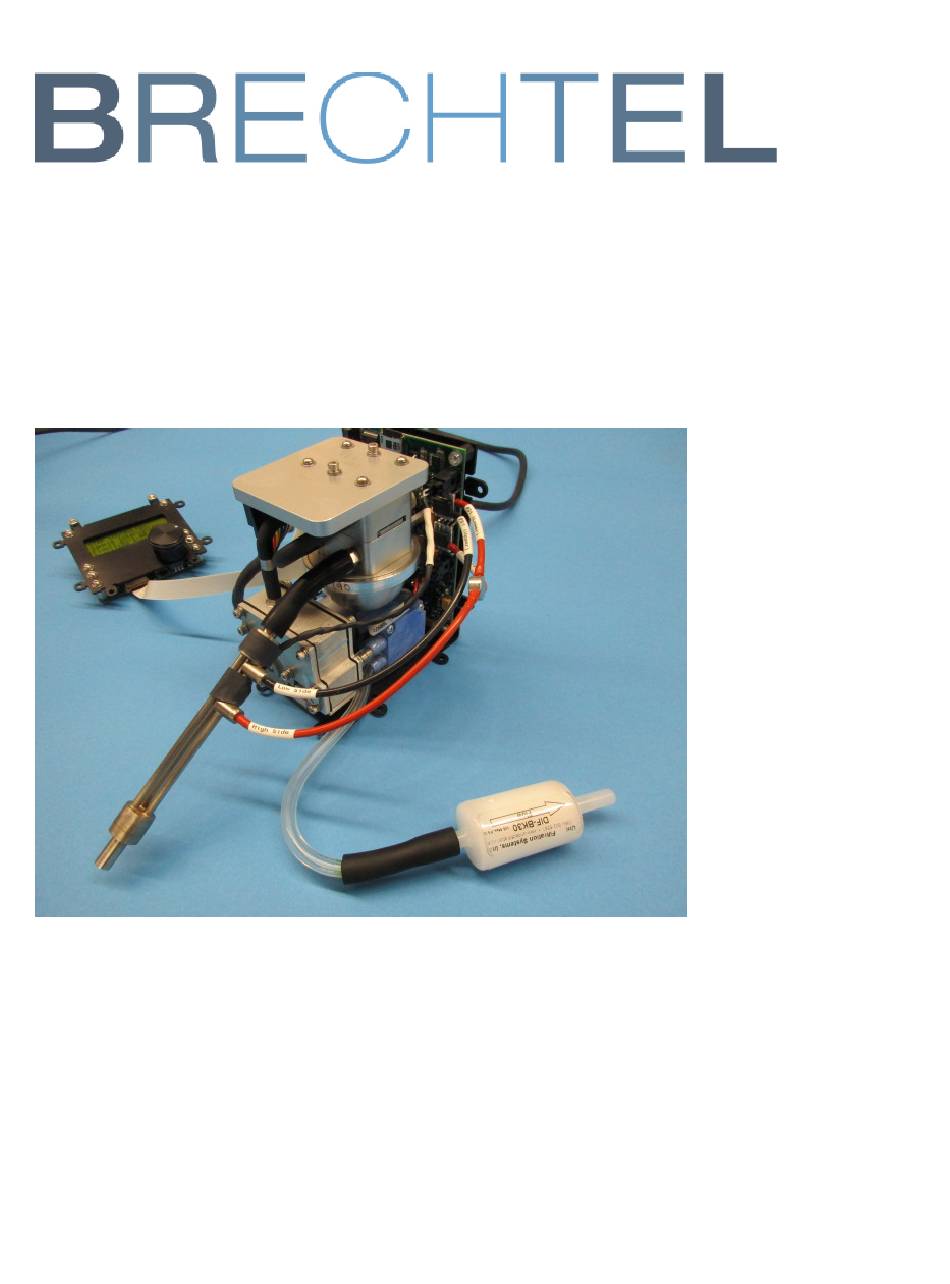

Page 1 Instrument Manual Ver. 3.5 STAP 9406 For UAV Reader version 5.4 and ﬁrmware version 7.1 BMI PN: 83-00036-01A February 16, 2021...
Page 2: Table Of Contents
........83-00036-01A STAP 9406 Page 1 of 46...
Page 3 Data File Format ......7.7 UAV Reader Software 83-00036-01A STAP 9406 Page 2 of 46...
Page 4 11.2 Calibrating the STAP ......Sample Flow LFE 83-00036-01A STAP 9406 Page 3 of 46...
Page 5: Caution
1.2 Shock during shipping If the shock watch installed on the shipping case has tripped, contact BRECHTEL. Oper- ate the unit to conﬁrm proper operation before using for actual measurements. 83-00036-01A...
Page 6: Changes
5/24/2018 v3.1 Update software discussion Various 10/26/2018 v3.2 Add new pictures, ESD Various 12/8/2018 v3.3 RS232 hexadecimal command Various 12/12/2018 v3.4 Add ﬁrmware update procedure Appendix 5/14/2019 v3.5 Add calibrator description Appendix 2/16/2021 83-00036-01A STAP 9406 Page 5 of 46...
Page 7: Contact Brechtel
Contact BRECHTEL 3 Contact BRECHTEL 3.1 Getting Help Contact BRECHTEL for any questions or assistance with this product. Include the model and serial numbers when contacting Brechtel. 1789 Addison Way Hayward, California 94544 Telephone: (510) 732-9723 Fax: (510) 732-9153 Email: sales@brechtel.com...
Page 8: Unboxing
Unboxing 4 Unboxing Each BRECHTEL STAP is inspected and tested in-house at BRECHTEL to ensure out of the box operation upon delivery. Prior to opening, inspect the packaging container and ShockWatch impact indicators. Carefully open the package and inspect the instrument and any accessories for broken parts, scratches, dents or other signs of damage incurred during shipping.
Page 9 Unboxing Figure 2: Remove the red brackets and bolts, be sure to replace be- fore shipping. 83-00036-01A STAP 9406 Page 8 of 46...
Page 10: Stap Overview
The STAP has a single sample ﬁlter and a single reference ﬁlter through which the sam- ple ﬂow passes downstream of the sample ﬁlter. For applications requiring multiple sample channels, Brechtel offers the Model 2901 TAP with 8 sample ﬁlter spots and 2 reference ﬁlter spots.
Page 11: Theory Of Operation
This analysis is not unique to the PSAP. Unfortunately, this assumption does not take into account the ﬁlter material or the prop- erties of the bulk developed in depositing the particles both on and in the ﬁlter, but we 83-00036-01A STAP 9406 Page 10 of 46...
Page 12: Absorption Coefficient Correction
ﬂow through both the sample and reference channel, and is the area of each sensor spot. Here τ τ ) = ( 0796 is the experimentally determined correction function for ﬁlter loading, ⟨ ⟩ color dark ⟨ ⟩ colorref darkref 83-00036-01A STAP 9406 Page 11 of 46...
Page 13: Component Technical Descriptions
ﬁrmware have higher un- certainties (15%) than values calculated by post-processing the raw data using the IGOR software routine provided by BRECHTEL. The post-processing also allows the scattering correction to be applied, which is NOT applied within the ﬁrmware.
Page 14: Stap Options
Figure 3: Major compo- nents of the STAP. 5.4 STAP Options There are several optional accessories external to the device that can be added at any time depending on your changing measurement needs. 83-00036-01A STAP 9406 Page 13 of 46...
Page 15 Additional 12 VDC power supply Duplicate supply to operate STAP in two for ground operation of any locations ACCESS module ACC-PC Computer loaded with UAV Easily operate STAP in multiple locations. Reader Software 83-00036-01A STAP 9406 Page 14 of 46...
Page 16: Stap Specifications
Physical size 5.3 x 4.3 x 3.9 in/13.5 x 10.9 x 9.9 cm Weight 1.45 lbs/0.66 kg Supply voltage 12 VDC Power usage 10 watts Mounting Multiple hard mounting points through metal body brackets 83-00036-01A STAP 9406 Page 15 of 46...
Page 17: System Setup
Table 3: STAP Assembly Parts Description STAP Base Unit Front Panel Display Display Ribbon Cable Sample LFE Assy Ship Kit Power supply Figure 4: View of STAP assembly. Numbers refer to table items. 83-00036-01A STAP 9406 Page 16 of 46...
Page 18: Tubing Connections
6.4 Electrical Connections When connecting ribbon cable item 3 in Fig. 4 be very careful that it is inserted per- pendicular to the mating brown connector on the circuit board. Be sure to connect the 83-00036-01A STAP 9406 Page 17 of 46...
Page 19: Communication Connections
ﬁrmware upgrade. 2. USB Port Micro USB port for communication with computer running UAV Reader software. 3. COM Port Serial communication port between the STAP and user PC. 4. SPI Bus Not currently used 83-00036-01A STAP 9406 Page 18 of 46...
Page 20 A DB9 adapter is included with each STAP ship kit. The detailed settings for the serial port: RS232: 8 data bits, 1 stop bit, no parity, Baud rates: 38.4k, 57.6k, 115.2k and USB with 230k. 83-00036-01A STAP 9406 Page 19 of 46...
Page 21: Computer Connections
USB Port on the STAP main board as shown in ﬁgure 6. The UAV Reader software may be purchased as an accessory to the STAP installed on a ruggedized tablet, contact BRECHTEL for information. Connect the USB cable prior to running the software. Do not disconnect the USB cable while the software is running.
Page 22 System Setup Figure 7: STAP assembly overall dimensions (inches and millimeters in paren- theses). 83-00036-01A STAP 9406 Page 21 of 46...
Page 23 System Setup Figure 8: STAP mounting bracket detailed dimensions (inches and millimeters in parentheses). Figure 9: Front panel dis- play mounting bracket de- tailed dimensions (inches and millimeters in paren- theses). 83-00036-01A STAP 9406 Page 22 of 46...
Page 24: Operating The Stap
LED brightness. The STAP uses a 20 bit A/D converter to read the sample and reference photodiodes. This means the raw sample and reference readings range from 0 to 1,048,575. The tricolor 83-00036-01A STAP 9406 Page 23 of 46...
Page 25: Electrostatic Discharge Practices
ﬁrmware have higher un- certainties (15%) than values calculated by post-processing the raw data using the IGOR software routine provided by BRECHTEL. The post-processing also allows the scattering correction to be applied. It is important to note that a scattering correction is NOT included in the STAP and needs to be applied by the user.
Page 26: Changing The Filters
• Pull the detector board and underlying aluminum STAP body piece away from the unit to reveal the two stainless steel ﬁlter sealing pieces shown in Fig. 11. The two 10 mm diameter ﬁlters are held underneath the two stainless steel pieces. 83-00036-01A STAP 9406 Page 25 of 46...
Page 27 (Fig. 10). • Re-attach the detector board cable to the main PC board if it was disconnected to perform the ﬁlter change. (This should not be necessary on newer units.) 83-00036-01A STAP 9406 Page 26 of 46...
Page 28 ﬁlter change. If the ﬂow rate is signiﬁcantly differ- ent, the ﬁlters may not be fully seated, or you may have accidentally inserted multiple ﬁlters. Figure 11: Second step to changing STAP ﬁlters. Figure 12: Third step to changing STAP ﬁlters. 83-00036-01A STAP 9406 Page 27 of 46...
Page 29: White Filter Check / Filter Initialization
3 = RESET_LEDS (resets the LED power levels to 0) 4 = ADJUST_LEDS (adjust the LED brightness) 5 = READING_INIT (take initialization readings) 6 = REMOVE_HEPA (waiting for user to conﬁrm HEPA ﬁlter is removed) 83-00036-01A STAP 9406 Page 28 of 46...
Page 30: Startup & Shutdown
A long press will take users from ”READINGS” mode to ”DEFAULT SETTINGS” mode and back again. Settings are saved when going from “DEFAULT SET- TINGS” mode back to “READINGS” mode. The sections below discuss the details of each menu in the STAP ﬁrmware. 83-00036-01A STAP 9406 Page 29 of 46...
Page 31: Sd Card Menu
Sample Interval: (1-60 seconds, can only be changed in settings mode) Flow: measured sample ﬂow / ﬂow setpoint (both in lpm) P: pump power (0-200 = duty cycle 0-100%) Pres: (pressure in mbar) Temp: (temperature in deg C) 83-00036-01A STAP 9406 Page 30 of 46...
Page 32: Display Menu
(auto report: Off, On) rpt_lbl: (report labels: Off, On) Main Defaults Menu ﬂow_sp: (ﬂow setpoint: 0.5 to 2.0 lpm) intervl: (averaging interval: 1-60 seconds) stapctl: (STAP Control: Off, On) sd_save: (SD card save: Off, On) 83-00036-01A STAP 9406 Page 31 of 46...
Page 33: Diagnostics Menu
”READINGS” mode from ”DEFAULT SETTINGS” mode. If changes are made without returning to ”READINGS” mode, e.g. powering off while in ”DEFAULT SETTINGS” mode, the new settings will not be remembered. 83-00036-01A STAP 9406 Page 32 of 46...
Page 34: Data Files
These parameter names are also used for serial communication. Data File Format Raw data at the end of each line has the Dark or Dark Ref value already subtracted from 83-00036-01A STAP 9406 Page 33 of 46...
Page 35 #blkreﬁ=8042 (initial black intensity reading in counts of the reference channel) #red_led=230 (power output setting of red LED) #grn_led=240 (power output setting of green LED) #blu_led=225 (power output setting of blue LED) #initﬂw=1.00 (average ﬂow during initialization) 83-00036-01A STAP 9406 Page 34 of 46...
Page 36 12. blk_smp: Black intensity, sample 13. blk_ref: Black intensity, reference 14. smp_ﬂw: Sample ﬂow measured (lpm) 15. smp_tmp: Sample temperature measured (deg C) 16. smp_prs: Sample pressure measured (mb) 17. pump_pw: Pump power (0-255) 83-00036-01A STAP 9406 Page 35 of 46...
Page 37: Uav Reader Software
Data may be stored on the PC in addition to the STAP SD card. The GUI creates the opportunity to remotely control the STAP through external serial port commands. This feature can be useful during UAV ﬂights or remote location deployments. 83-00036-01A STAP 9406 Page 36 of 46...
Page 38 ﬁrmware, diagnostic readings, manufacturing information and ﬁnally, calibration coefficient values. Figure 14: STAP Details tab in UAV Reader software). If remote control commands will be used via the reader tablet serial port, using the ’s_select’ 83-00036-01A STAP 9406 Page 37 of 46...
Page 39 - sets averaging interval (sec) (not SD save interval) s_clk_sec - set clock seconds s_clk_min - set clock minutes s_clkhour - set clock hours s_clk_day - set clock day s_clk_mon - set clock month 83-00036-01A STAP 9406 Page 38 of 46...
Page 40: External Serial Commands
ﬁle_save - sets data ﬁle saving on/off by UAV Reader (1=on, 0=off) for currently selected STAP stapctl - sets STAP on/off (LEDs and pump) (1=on, 0=off) sd_save - sets SD Card save on/off (1=on, 0=off) ﬂt_typ - sets ﬁlter type (0=Pall, 1=EMFAB, Azumi, 2=Azumi) 83-00036-01A STAP 9406 Page 39 of 46...
Page 41 - sets averaging interval (sec) (not SD save interval) s_clk_sec - set clock seconds clk_min - set clock minutes clkhour - set clock hours clk_day - set clock day clk_mon - set clock month clkyear - set clock year 83-00036-01A STAP 9406 Page 40 of 46...
Page 42: Maintenance
Remove the LFE from the unit and ﬂush with clean DI water and IPA. Sonicate for 2 hours submerged in water. Blow dry with ﬁltered air after sonication and re-install. 83-00036-01A STAP 9406 Page 41 of 46...
Page 43: Stap Errors
EEPROM after initialization. If the readings are too low, the “BAD Stored Value” error will appear at the next power up because the EEPROM values are checked when they are read at power up. 83-00036-01A STAP 9406 Page 42 of 46...
Page 44: Troubleshooting
Sample ﬂow incorrect Calibration drift Recalibrate LFE LFE clogged Clean LFE Sensor failure Replace main board Absorption too low Detector failure Replace detector board LED failure Replace LED board Sample ﬂow incorrect Calibrate LFE 83-00036-01A STAP 9406 Page 43 of 46...
Page 45: Appendix
”Propeller.exe”. • Click ”File->Open” and navigate to the new ﬁrmware version eeprom ﬁle ”XXXX.eeprom” supplied by BRECHTEL that has been saved to your computer. • Open the ﬁle. • This will bring up the ”Object Info” window. Click on the ”Load EEPROM” but- ton near the bottom of the window.
Page 46: Calibrating The Stap
To use the program, you must have a Windows PC (ver 7 to 10) with Labview 2011 Runtime Engine installed and a free USB port. Obtain the program from BRECHTEL or your local technical representative if you cannot ﬁnd it on the USB stick that shipped with your STAP.
Page 47 STAP ﬁrmware. • Conﬁrm the new coefficients were properly written to the STAP ﬁrmware by verifying their presence in the Defaults Calibration Coef menu on the STAP. 83-00036-01A STAP 9406 Page 46 of 46...
Page 48 Flash Memory, SD Card, 4 GB, Micro and Adapter 903100031A Memory Card Reader, USB 96-00004-01A IM2450 - foam ﬁlled (Pick n Pluck) - black case 96-00007-02A Shock Label, 7/8” x 2”, 25 G Sensitivity, Resettable POWER CORD (OPTION by Country/Voltage) 83-00036-01A STAP 9406 Page 47 of 46...
