- Page 1 Owner’s Manual www.varlascooter.com...
- Page 3 Thanks for choosing Varla Eagle One Scooter! We sincerely hope you could enjoy the fun and freedom of riding Varla Scooter. Please check out this letter to make sure you are well prepared to ride before you hop on the scooter.
-
Page 4: Table Of Contents
Content Safety Warnings · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Scooter Overview ·... -
Page 5: Safety Warnings
Safety Warnings ☆ Riding an electric scooter does present potential risks and caution is required. Like any vehicle, an electric scooter has inherent hazards associated with its use (for example, falling off or riding it into a hazardous situation). ☆ The recommended minimum rider age is 16 and older. Any rider unable to fit comfortably on the scooter should not attempt to ride it. ☆... - Page 6 Safety Warnings 1. Please wear a helmet during the riding 2. Charge the battery with the original 3. Do NOT press the SINGLE/DUAL button and other protective gear, such as elbow charger, and someone needs to be nearby and ECO/TURBO button during riding. and knee protectors.
-
Page 7: Scooter Overview

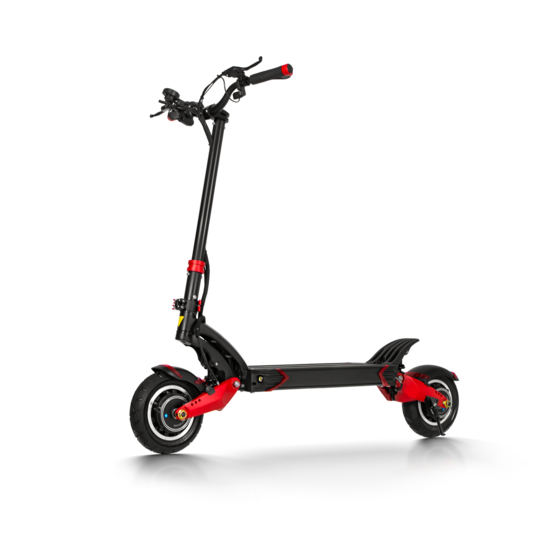

Scooter Overview Brake Single / Dual Turbo LCD Display ON / OFF Headlights Deck Taillights Fold Clamp Front Fender Rear Shock Absorption Front Shock Absorption Rear Fender Rear Motor Front Motor Battery Kickstand · 3 ·... -
Page 8: Product Specification
Product Specification Battery 52V 18.2Ah Lithium Battery Motor Dual Motor, 1000W *2 Display Max Speed 40 MPH Max. Range 40 Miles Charging Time 8~9 Hours（Single charger） 4~5 Hours（Two chargers） Material Aluminum Alloy Climbing Angle 30 Degrees Lighting LED, Front & Rear Waterproof Rating IP54 Payload Capacity... -
Page 9: Assembly
Assembly How to Unfold the Scooter 2.Lift up the main rod 1.Unlock the clamp 3.Lock the clamp How to Fold the Scooter Step 3: Put down the main rod Step 1: Power off Step 2: Unlock the clamp · 5 ·... -
Page 10: Parts Instruction
Parts Instruction Power Switch Press and hold the Power button for 3 seconds to turn on the LCD screen. The screen will automatically turn off after 90 seconds stop. Speed Control When the power is on, it would show gear 1, the top speed is 15 mph; Press the MODE button once, it would show 2 as gear 2, the top speed is 25 mph;... - Page 11 LCD Display When the power is on, the total mileage(ODO) shows on the screen. Press the Power button once, the single mileage(TRIP) shows on the screen. Press the Power button twice, the screen show the voltage. When it shows the single mileage(TRIP), press and hold MODE button for three seconds to reset the TRIP. 3 LEVELS OF GEAR TRIGGER THROTTLE SPEED INDICATOR...
- Page 12 Eco/Single Button The default is Single-motor mode and Turbo mode. Press the ECO/TURBO button in, then the scooter is in Eco mode. Press the SINGLE/DUAL button in, then the scooter is in Dual motor mode; Turbo/Eco button affects top speed for each gear, Single/Dual button affects acceleration more strongly. Do NOT press the SINGLE/DUAL button and ECO/TURBO button during riding.
- Page 13 Battery Introduction The battery capacity, to a great extent, decides the endurance mileage of the scooter. Battery with larger capacity could have longer endurance mileage. Please fully charge your e-scooter, before the first ride. Battery Functions ◆ Balance the charge protection: balance the cell voltage automatically to protect the battery. ◆...
- Page 14 Charge ◆ Power off the scooter. ◆ Plug the charger to the outlet, then plug the charger to one of charging port on the scooter. ◆ The optimum charging temperature is between 5-40 degrees. If the cell’s temperature is not in this range, the battery will cease charging. ◆...
-
Page 15: How To Ride
◆ Teens under the age of 16 and the elderly over 60 are not recommended to ride a scooter. ◆ Do NOT push the SINGLE/DUAL button and ECO/TURBO button during riding. Disclaimer: Varla Scooter will not accept liability for any claim for property loss or personal injury related to the improper use of the product. · 11 ·... -
Page 16: Daily Maintenance And Repair
Daily Maintenance and Repair Scooter’s Cleaning and Storage Clean the main external metal components ◆ Dip a rag in soapy water, squeeze out as much water as possible, then scrub the parts. ◆ Brush the corners with an old toothbrush, such as the inside of the shock absorption, brake and calipers. ◆... - Page 17 ◆ It is forbidden to use high-pressure water gun to spray and wash. ◆ Make sure that the electric scooter is in the off state, and the charging cable has been pulled out and the rubber cover of the charging port has been fastened.
- Page 18 the battery. In addition, the battery can exert a higher range and performance when used at normal temperature; and if it is used in an environment below 0°C, the battery life and performance will decrease. Typically, in an environment of -20°C, the cruising range may be only half or lower than at normal temperature.
- Page 19 Tire Pressure ◆ The maximum air pressure displayed on the Eagle One tire sidewall is 50, the recommended tire pressure is between 40-50 ◆ If the weather is hot, you can slightly lower 2-3 psi the air pressure inside the inner tube, and vice versa if the weather is cold. For heavier rider, you can slightly higher 2-3 psi in the inner tube.
- Page 20 P-Setting Instruction Accessing Settings ◆ Hold the MODE and Power buttons (3 seconds) to access the P-setting menu. ◆ Press the Power button to select the P-setting to adjust. ◆ Press the MODE button to adjust the value. ◆ To save settings, allow the LCD display to timeout (8 seconds) or long press MODE and Power buttons to exit the menu. Setting Menu Setting Feature...
- Page 21 Setting Feature Notes Battery voltage (do not adjust) From 24V to 60V Default: 52V Auto-off time 0: not set 60: 60 min Default: 5 Unused Wheel diameter (do not adjust) Default: 10.0 Motor magnets (do not adjust) From 0 to 255 Default: 28 Power level 1: slowest...
- Page 22 Setting Feature Notes Unused Regenerative/Electronic brake strength 0: off 1: weak 5: max Default: 3 Acceleration 0: off 1: weak 5: strong Default: 3 Unused Unused Automatic scooter voltage shut-down (do not From 37.0 to 47.0 adjust) Default: 42.0 Lifetime odometer reset Long-press Mode button to reset to 0 ·...
- Page 23 Setting Feature Notes Cruise control 0: off 1: on Default: 0 Unused Unused Communication protocol (can not adjust) Default: 4 · 19 ·...
- Page 24 6 km/h cruise Faulty comms between controller and LCD Battery under voltage BMS failure Headlight failure Motor faulty Controller faulty When the dashboard displays an error code, please contact the Varla after-sales team as soon as possible. After-sales: customer@varlascooter.com · 20 ·...
-
Page 25: After Sales Service
After Sales Service Warranty Details If you encounter any problems in the following forms during the warranty period, Varla will guarantee to provide complete after-sales service. Part Name Warranty Period Service Content Throttle 24 months Free maintenance Controller 24 months... - Page 26 5. The use of electric scooters for other purposes to perform dangerous actions such as special effects, which leads to rapid aging and malfunction of this product. 6. Natural disasters, man-made irresistible reasons cause vehicle damage. Note: Please visit Varla’s official website for the latest after-sales, return policy, warranty information, etc. Official Website: USA www.varlascooter.com EU www.varlascooter.eu...
-
Page 27: Warranty Card
WARRANTY CARD Please complete the following details Owner’s Name: Address: City: State: Zip Code: Order Number(s): Serial number(s): Date of Purchase: phone number: Email: · 23 ·... - Page 28 www.varlascooter.com...
