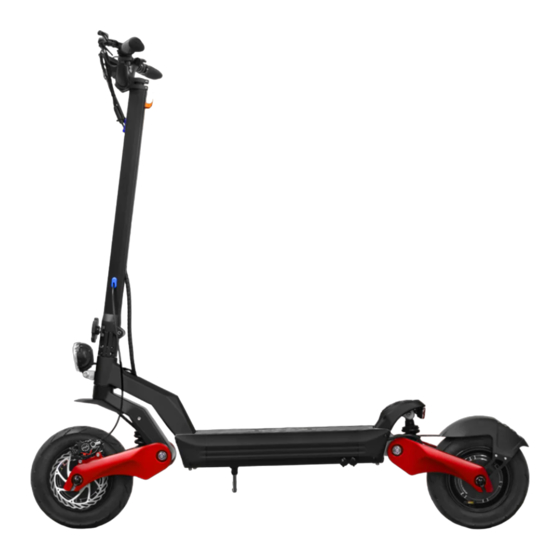

- Page 1 EAGLE ONE PRO Owner’s Manual varlascooter.com...
- Page 3 Dear Customer, Thanks for choosing Varla Scooter! We sincerely hope you could enjoy the fun and freedom of riding Varla Scooter. Please spend some time reading and understanding this entire manual before you ride. Safety always comes �irst. You will work out how to ride your electric scooter quickly, however, remember to practice riding in a safe place with limited obstacles.
-
Page 4: Table Of Contents
CONTENTS Safety Warnings · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 Product Speci�ications ·... -
Page 5: Safety Warnings
Safety Warnings ☆ Riding an electric scooter does present potential risks and caution is required. Like any vehicle, an electric scooter has inherent hazards associated with its use (for example, falling off or riding it into a hazardous situation). ☆ The recommended minimum rider age is 16 and older. Any rider unable to �it comfortably on the scooter should not attempt to ride it. ☆... - Page 6 Safety Warnings 1. Please wear a helmet during the 2. Charge the battery with the original 3. Do not ride on bumpy and slippery riding and other protective gear, such charger, and someone needs to be roads, such as dirt road, gravel road, as elbow and knee protectors.
-
Page 7: Product Speci�Ications
Product Speci�ications Motor 2x1000W Speed 45 MPH Climbing Angle 30+ Degrees Battery 60V/27Ah Battery Range 45 Miles (depends on riding condition) Brake Dual Hydraulic Brake Tire 11 inches Air Tubeless Tires Display 3.5 inches LCD Display NFC Card Frame Material Aluminum Alloy Suspension Dual... -
Page 8: Product Dimensions
Product Dimensions Handlebar Length Standing Height Overall Height Deck Length Folded Height Deck Width Overall Length To improve quality and safety of the product, the speci�ication might be changed without prior notice. -
Page 9: Electric Scooter Parts
Electric Scooter Parts LCD Display Steering Bar Brake Folding Clamp Deck mat Front light Deck Front Fender Taillight Rear Fender Rear Caliper Front Motor Front Tire Kickstand Rear Motor Charging Port Front Rear Suspension Suspension Rear Tire Front Caliper... -
Page 10: Assembly
Assembly Put the handlebar on the stem, align center. Put the cover and tighten the screws at both ends. Install the LCD display, adjust to appropriate angle, and tighten the �ix screws. - Page 11 Assembly When connecting these two connectors, the arrow must be aligned with the arrow. You can turn on the power only when the assembly is completed.
- Page 12 Assembly How to Unfold the Scooter Lift up the steering bar Rotate disc lock to right Insert the insurance pin How to Fold the Scooter Rotate disc lock to left Pull out the insurance pin Put down the steering bar...
- Page 13 Dashboard LIGHT INDICATOR BATTERY LEVEL INDICATOR DUAL MOTOR INDICATOR CRUISE CONTROL INDICATOR SPEED INDICATOR SPEED UNIT INDICATOR VOLTAGE OUTPUT INDICATOR 3 LEVELS OF GEAR DISTANCE INDICATOR...
-
Page 14: General Operation
Press and hold the Power button for 3 seconds to turn on the LCD Display. ☆ Power Switch Place Varla's card at the designated location on the Press and hold the Power button for 3 seconds to turn on the dashboard and the scooter will be successfully unlocked. - Page 15 General Operation When it shows “ ” (Dual Motor Mode) on the display, press and hold “ + ” button for 2 seconds to enter Single Motor Mode, then the “ ” doesn't show ☆ Dual/Single Motor Switch on the display. *Don't switch Single/Dual-mode during riding! •...
- Page 16 General Operation • Balance the charge protection: balance the cell voltage automatically to protect the battery. ☆ Battery • Overcharge protection: overcharge would damage the battery severely. Our battery would stop charging after been fully charged. • Charging temperature protection: when the charging temperature is below 5 degrees celsius or over 40 degrees celsius, it will harm the battery, and may cause the battery to not be used normally.
- Page 17 General Operation Charger getting warm during use is normal. If your charger does not get warm during use, it does not mean that it is not working properly. ☆ Note: Don’t charge the scooter immediately after a long-distance ride. Please wait for at least 30 minutes. Continue charging the scooter even if light turns green prior to 12 hours.
-
Page 18: Accessing Settings
Accessing Settings • Long press the “ + ” and “ - ” button at the same time to access the P-setting menu. • Press the Power button to toggle through P-settings. • Use the +/- button to adjust the value. •... - Page 19 P-Setting Instruction Setting Feature Notes From 0-99 Rim size (do not adjust) Default: 11 Battery voltage (do not adjust) Default: 60V The number of magnetic poles (do not adjust) Default: 30 Speed signal Default: 0 0: kph Speedometer units 1: mph Default: 0 0: zero start Start mode...
- Page 20 P-Setting Instruction Setting Feature Notes 0: off Cruise control 1: on Default: 0 From 1-5 1: weak Start strength (do not adjust) 5: strong Default: 3 5: slowest Power level 100: fastest Default: 100 km/h From 0-2 ABS level Default: 1 Card: 000 Safety setting Default: 002...
- Page 21 LCD Display Error Code: 006 Battery under voltage 007 Motor faulty 008 Throttle faulty 009 Controller faulty 010 Communication receive faulty 011 Communication sending faulty (In the Event of a Problem) ERROR CODE INDICATOR...
-
Page 22: Pre-Ride Checklist
Pre-Ride Checklist Check the brake kits for proper function. When you pull the brake lever, the brake should provide positive braking action. ☆ Brake *When riding in gear 2 or above, the front and rear brakes must be braked together when you brake! Periodically inspect the tires has suf�icient tread remaining. -
Page 23: Warranty And Contact Information
Warranty and Contact Information Your purchase includes the following warranty. The warranty would be registered automatically when the initial purchaser ordered it in the online shop. The warranty is ONLY under the INITIAL PURCHASER. The 2-year warranty would be started since the initial owner receives it. Affected Part Warranty Period Service Content... - Page 24 HOW TO MAKE A WARRANTY CLAIM If you believe your Varla scooter has a warranty issue, your �irst point of contact should be your Store where you purchased. If you purchased directly from Varla Online Store, please contact our customer service team: customer@varlascooter.com.
- Page 26 WARRANTY CARD WARRANTY CARD Please complete the following details. Owner’s Name: Address: City: State: Zip Code: Order Number(s): Serial number(s): Date of Purchase: Phone number: Email:...
