- Page 1 Varla Scooter PEGASUS Owner’s Manual Varla Electric Scooter www.varlascooter.eu...
- Page 2 3. Please look ahead while riding! This may sound a little bit silly but people could be distracted by their surroundings. Be careful! 4. Make sure you’re familiar with the scooter’s functions. 5. DO NOT play your phone while riding. water damage. warranty. These are some basic tips, now start your learning of the Pegasus scooter in details!
-
Page 3: Table Of Contents
CONTENTS Safety Warnings · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 ·... -
Page 4: Safety Warnings
Safety Warnings ☆ ☆ ☆ Keep this product away from small children and remember that it is intended for use only by persons who are, at a minimum, completely comfortable and competent while operating the scooter. ☆ ☆ ☆ Obey the local laws or regulations. Always check and obey any local laws or regulations which may affect the locations where the electric scooter may be used. - Page 5 Safety Warnings 1. Please wear a helmet during the 2. Charge the battery with the original 3. Do not ride on bumpy and slippery charger, and someone needs to be as elbow and knee protectors. snow-piled and gathered water road. charging.
- Page 6 Rated Motor 2x500W Top Speed 20km/h Climbing Angle 25 degrees Battery 48V/15.6Ah Battery Max Range Brake Dual Disc Brake Tire 8 inches Fat Tire Display Frame Material Aluminum+Magnesium Alloy Suspension Dual Spring Suspension Throttle Thumb Throttle Max. 127 kg Payload Capacity Recommended 113 kg Self Weight 29.9 kg...
-
Page 7: Product Dimensions
Product Dimensions 52.8cm Handlebar Length 99.8cm Standing Height 125.9cm Overall Height 50.0cm Deck Length 48.0cm Folded Height 17.0cm 119.8cm Deck Width Overall Length... -
Page 8: Electric Scooter Parts

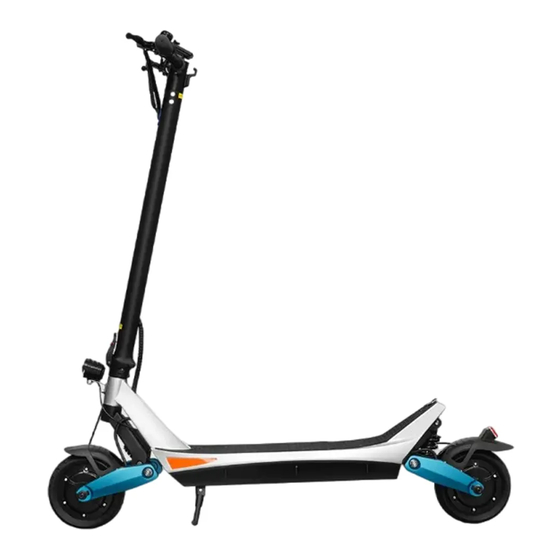

Electric Scooter Parts LCD Display Steering Bar Brake Deck Lock Rear Caliper Folding Clamp Deck mat Front light Deck Taillight Front Fender Rear Fender Rear Motor Kickstand Front Motor Front Charging Solid Tire Port Rear Rear Suspension Front Solid Tire Front Caliper Suspension... -
Page 9: Assembly
Put the handlebar on the stem, align center. - Page 10 When connecting these two connectors, the arrow must be aligned with the arrow.
- Page 11 How to Fold the Scooter Step 1: Power off Step 3: Put down the main rod...
- Page 12 Screw *Please check if the folding buckle is fastened before you go. If it is loose, please adjust the nut and screw.
- Page 13 BATTERY LEVEL INDICATOR ERROR CODE INDICATOR SPEED INDICATOR 5 LEVELS OF ASSIST BACKLIGHT INDICATOR DISTANCE INDICATOR...
-
Page 14: General Operation
General Operation When the power is on, it will show PAS 1, the top speed is 10 mph; ☆ Riding Methods Press the UP button, it will show PAS 2, the top speed is 16 mph; Press the UP button twice, it will show PAS 3, the top speed is 28 mph; ☆... - Page 15 General Operation Please only use the recommended charger. Make sure the power is turned OFF before you charge it. ☆ Charger Step 1 Plug the charger into wall outlet. Step 2 Plug the charger into the charger port. The light on the charger should turn red during charging. The light will turn green again when charging is complete.
-
Page 16: Accessing Settings
Accessing Settings Press the M button to toggle through P-settings. - Page 17 P-Setting Instruction Setting Feature Backlight brightness Notes 1: low 2: mid 3: high Default: 1 Speedometer units 0: kph 1: mph Default: 0 From 24V to 60V Default: 48V Auto-off time 0: not set 60: 60 min Default: 5 Gear number 0: 0-3 gears 1: 0-5 gears 2: 0-9 gears...
- Page 18 P-Setting Instruction Setting Feature Default: 15 Notes 1: slowest 100: fastest Default: 100 km/h Start mode 1: kick to start Default: 0 0: only PAS, no throttle 1: only electricity no pas mode 2: PAS and throttle both work Default: 2 From 1-24 1: lowest 24: highest...
- Page 19 P-Setting Instruction Setting Feature Value: 5/8/12 Notes Default: 12 From 10-20 Default: 20A Default: 40 Unused Unused...
- Page 20 P-Setting Instruction Setting Feature Notes Unused Unused...
- Page 21 LCD Display Error Code: E07 Motor faulty E08 Throttle faulty E09 Controller faulty E11 Communication sending faulty ERROR CODE INDICATOR E13 Headlight faulty...
-
Page 22: Pre-Ride Checklist
Pre-Ride Checklist ☆ Brake ☆ Tire ☆ Battery ☆ or break a frame. ☆ Safety gear Always check and obey any local laws or regulations. ☆ Law and regulations Exposure to UV rays, rain and other bad weather may damage the materials, store cool and dry indoors when not in use. ☆... -
Page 23: Warranty And Contact Information
Warranty and Contact Information Affected Part Warranty Period Throttle 24 months Free maintenance Controller 24 months Free maintenance Frame 24 months Free maintenance Motor 12 months Free maintenance Battery 12 months Free maintenance Charger 12 months Free maintenance Kickstand 1 Month or 100KM Free replacement Fenders 1 Month or 100KM... - Page 24 HOW TO MAKE A WARRANTY CLAIM Warranty Notes 1. Failure to follow this instruction manual for maintenance. 5. The use of electric scooters for other purposes to perform dangerous actions such as special effects, which leads to rapid aging and malfunc- tion of this product.
