Tyco Illustra Flex Gen 3 Quick Start Manual

Quick Start Guide
(8200-1937-03_B0)

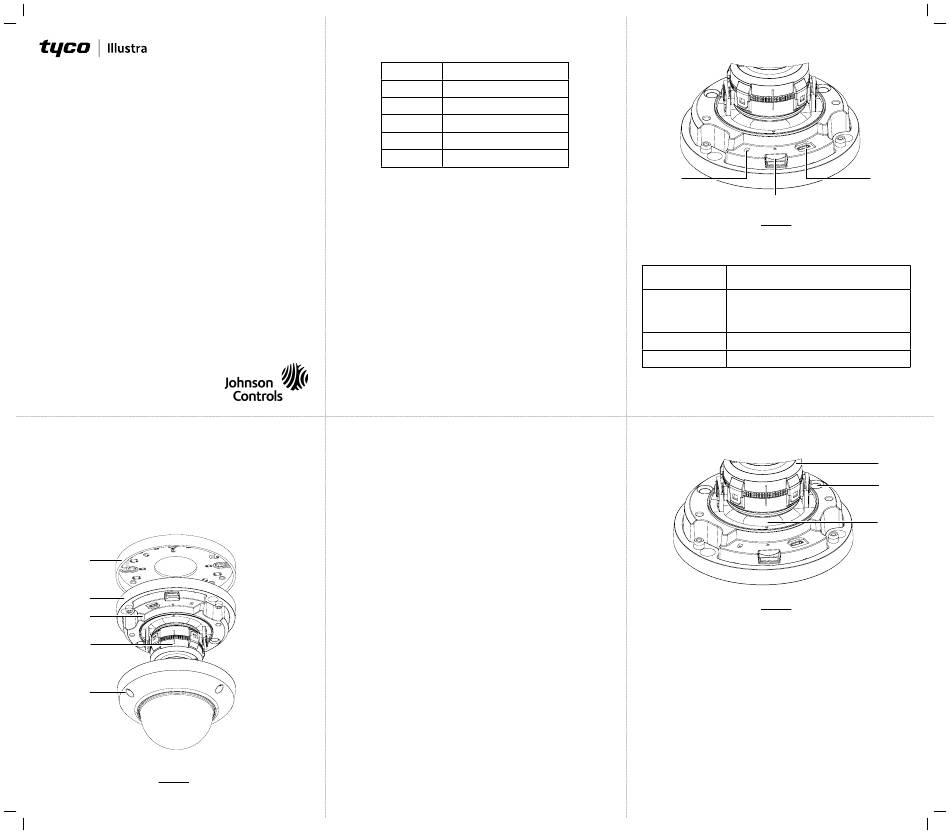

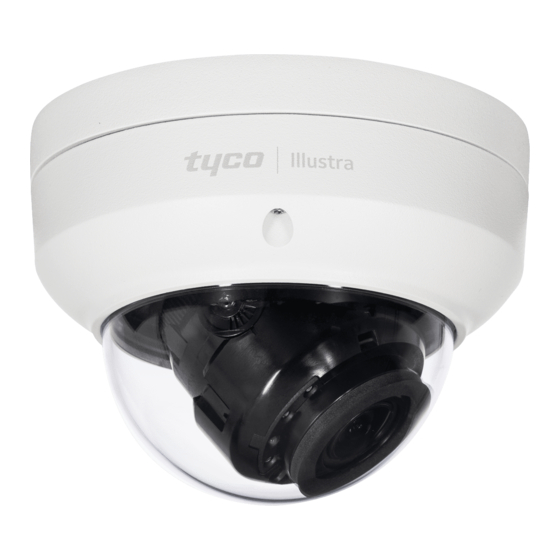

Illustra Flex Gen 3 Compact Dome Camera

In the box

y 1 x Compact Dome camera
y 1 x Mounting template sticker
y 1 x Mounting plate
y 3 x 40x6mm plastic screw anchors
y 3 x 50x4mm tapping screws
y 3 x 10x4mm mounting plate screws
y 1 x Printed Quick Start Guide
y 1 x Waterproof RJ45 cable accessory
y 1 x Torx driver

Installation tools

y 1 x Screw driver
y 1 x Torx driver
y 1 x Drill

Quick reference

y Default IP: 192.168.1.168 (DHCP enabled)
y Default Username: admin
y Default Password: admin
y Power: PoE 802.3af
Camera Parts: Figure 1
1
2
3
4
5
Figure 1

Table 1: Camera part descriptions

Camera Part Description
Mounting Plate
1
2 Camera Base
3 Camera body
4 Camera lens
5 Dome cover

Mounting and powering up the camera

1. Place the mounting template sticker on the mounting surface.
2. On the mounting surface drill three Ø 6mm holes and cut out an
Ø 22mm cabling hole as per the markings identified on the mounting
template sticker.
3. Securely place the three screw anchors into the three Ø 6mm holes.
4. Unscrew the three screws on the camera dome (5) (Figure 1) to remove
the dome cover from the camera base.
5. Place the PoE cable:
a. through the cable side entry slot on the camera base (2) (Figure 1).
OR
b. through the cable hole on the mounting plate (1) (Figure 1).
Mounting and powering up the camera (continued)
6. Place the camera base (2) (Figure 1) on to the camera mounting plate
(1) (Figure 1) and ensure that the three holes on the camera base align
with the three holes on the mounting plate.
Note: If the PoE cable is placed through the cable hole on the mounting
plate then insert the PoE cable through the Ø 22mm hole on the
mounting surface.
7. Hold the mounting plate and camera base up to the mounting template
and align the three holes on the mounting plate and camera base with
the three holes on the mounting template.
8. Insert the three screws onto the three holes on the camera base and
securely attach the mounting plate and camera base to the surface.
9. Cover the camera body with the dome cover (5) (Figure 1) and securely
attach the dome to the camera with the three screws.
10. Connect the RJ-45 jack to a PoE compatible network device that
supplies power through the Ethernet cable.
Camera buttons and connections: Figure 2
1
2
Figure 2

Table 2: Camera buttons and connections descriptions

Camera button /
Description
connection
Reset button
1 y Hold for 5 seconds for soft reset
y Hold for 20 seconds for hard reset
2 Micro SD card
USB cable connection
3
Adjusting the camera position: Figure 3
Figure 3
1. Rotate: The rotate range of the 3-axis gimbal is 0° to a minimum of
355°
2. Tilt: The tilt range of the 3-axis gimbal is 0° to 67°.
3. Pan: The pan range of the 3 axis gimbal is 0° to 355°.
3
1
2
3
