Tyco Illustra Flex Gen 3 Quick Start Manual

Quick Start Guide
(8200-1937-09_C0)

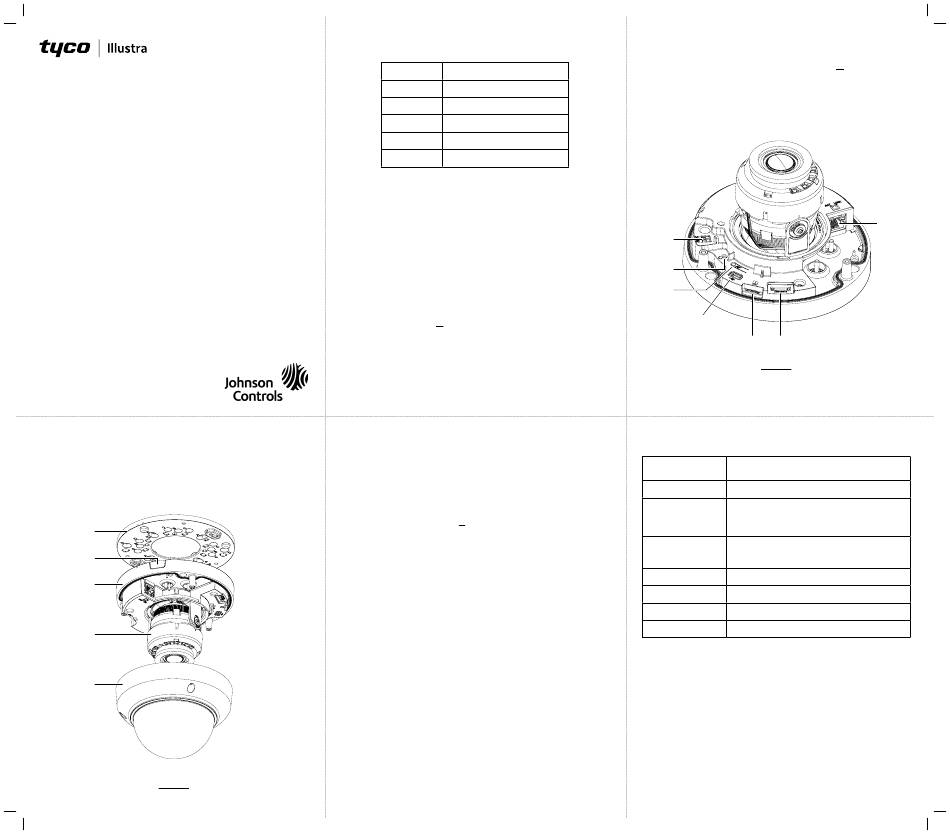

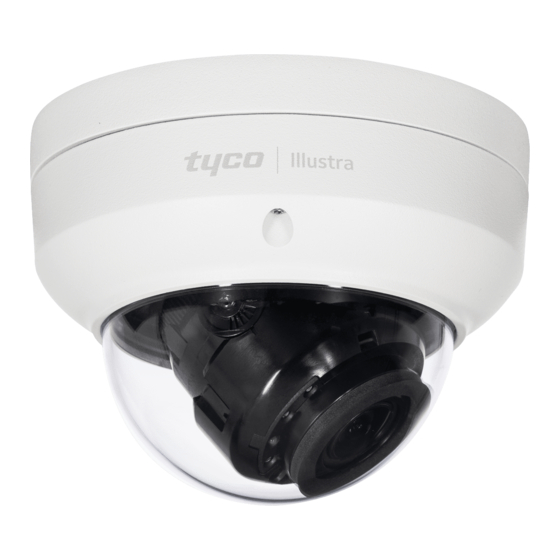

Illustra Flex Gen 3 Outdoor Dome Camera

In the box

y 1 x Dome camera
y 1 x Mounting template sticker
y 1 x Mounting plate
y 3 x 10x4mm mounting plate screws
y 3 x 40x6mm plastic screws anchors
y 3 x 50x4mm tapping screws
y 1 x Cap Installer
y 3 x Cable Bush
y 1 x Printed Quick Start Guide
y 1 x Torx driver
y 1 x Safety wire
y 2 x 8x3mm screw

Installation tools

y 1 x Screw Driver
y 1 x Torx driver
y 1 x Drill

Quick reference

y Default IP: 192.168.1.168 (DHCP enabled)
y Default Username / Password: admin / admin
y Power: AC24V / PoE 802.3af

Camera Parts: Figure 1

1
2
3
4
5
Figure 1

Table 1: Camera part descriptions

Camera Part Description
Mounting Plate
1
2 Cable side entry
3 Camera base
4 Camera lens
5 Dome Cover

Mounting and powering up the camera

1. Place the mounting template sticker on the surface that you want to
attach the camera.
2. On the surface drill three Ø6mm holes, cut out a larger Ø 60mm
cabling hole and triangle as per the markings identified on the mounting
template sticker.
3. Securely place the three screw anchors into the three Ø 6mm holes.
4. Unscrew the three screws on the camera dome (5) (Figure 1) to remove
the dome from the camera base (3) (Figure 1).
5. Insert the PoE cable or AC24V cable through the hole on thecamera
base.
Note: Ensure that the rubber plugs on the cable is correctly inserted
into the cable hole on the camera base.
Mounting and powering up the camera (continued)
6. Connect the PoE cable to the PoE slot on the camera.
OR
Connect the AC24V cable to the AC24 connection on the camera.
7. Before you lock the mounting plate (1) (Figure 2) to the camera base
you must place the cable through the cable side entry slot on the
camera base (2) (Figure 1) or through the cable hole in the camera
mounting plate.
y When using the cable side entry slot you must first remove the cable
side entry screw that holds the cable side entry cover in place.
y If the cable is placed through the hole on the camera mounting plate
then insert the cable through the hole on the mounting surface.
8. Place the camera base onto the mounting plate and rotate the camera
base to lock it to the mounting plate.
Note: The mounting plate includes a 'lock' and 'unlock' symbol to assist
with step 8.
9. Hold the mounting plate with camera base up to the mounting template
and align the three holes on the mounting template with the three holes
on the camera base.
10. Insert the three screws into the three holes on the camera base and
securely attach the mounting plate and camera base to the surface.
11. Cover the camera with the dome cover and securely attach the dome
to the camera with the three screws.
Mounting and powering up the camera (continued)
12. Connect the AC24V cable to the AC 24V terminal or connect the
RJ-45 jack to a PoE compatible network device that supplies power
through the Ethernet cable.

Camera buttons and connections: Figure 2

1
2
3
4
5 6
Figure 2

Table 2: Camera buttons and connections descriptions

Camera button /
Description
connection
1 AC cable connection
Factory reset
2 y Hold for 5 seconds for soft reset
y Hold for 20 seconds for hard reset
Focus button
3
y Hold for 3 seconds to runone touch focus
4 USB cable connection
5 Micro SD card slot
Audio / Alarm cable connection
6
7 PoE cable slot
7
