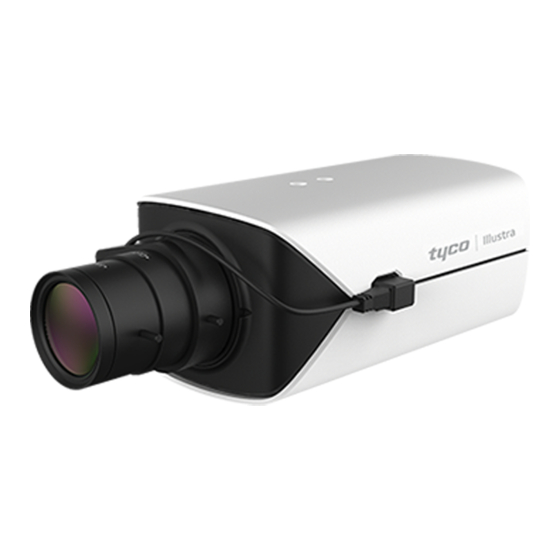

Tyco Illustra Standard Series Quick Start Manual

Illustra Standard Series
ISV-X02N003S
ISV-X02N004S
Quick Start Guide
■ Please read this instruction carefully before using the product and
keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without notice.
1

Warning and Caution

■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Keep away from liquid while in use.
■ In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall, the device shall be firmly fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold, dusty or damp
locations, and do not expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
2

Package

V
Camera
Box Camera
Terminal block for power
3

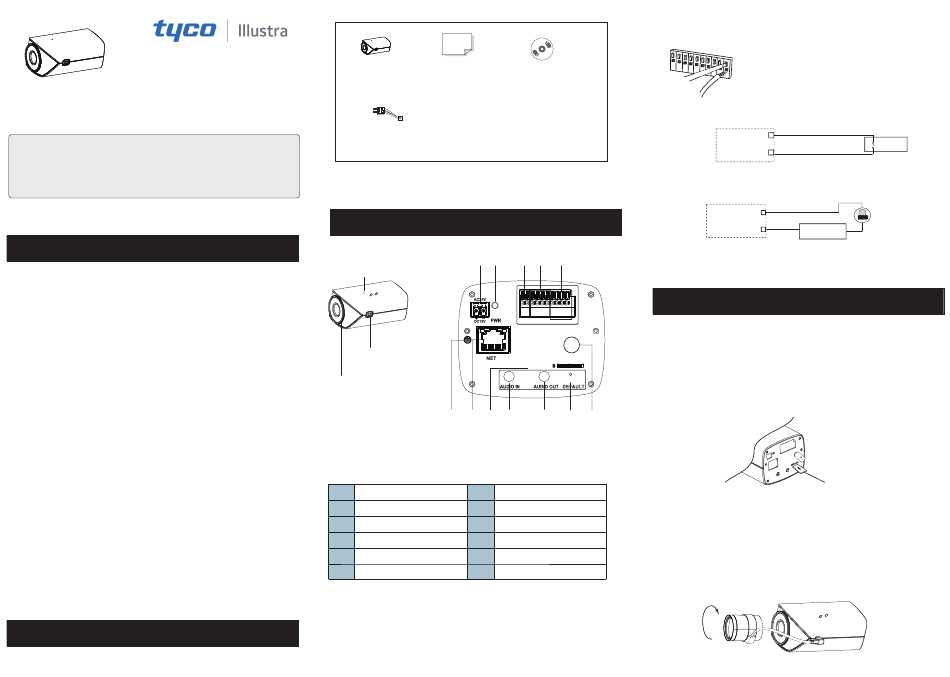

Overview

Microphone
Auto Iris Interface Auto Iris Interface

Focus Adjusting

Focus Adjusting: When it still fails to realize focusing after having
confirmed the correct installation of lens, the back focus adjustment
may be required.
1 Power port (
Power indicator
2
RS 485; connectors for PTZ
3
Alarm output
4
Alarm input
5
6 Ground
*
Default: Restore device factory default setting. When system is running
normally, press and hold the DEFAULT button for 10 seconds, the system
can restore factory default setting.
*Power indicator: red light means the camera is powered normally.
CD
Quick start guide
1 2 3 4 5
A B 1A 1B 2A 2B 1 GND1 2 GND2
RS485 ALARM OUT ALARM IN
VIDEO OUT
TF CARD
6 7 8 9 10 11
DC 12V/ AC 24V)
Ethernet connector (PoE)
7
8 Micro SD card slot
Audio input
9
10
Audio output
11 Restore factory default setting
12 Video output

RS 485/ Alarm input/Output Cable Connection

Use the small slotted screwdriver to press the
corresponding button. Then insert the cable into
Screwdriver
the cable groove. After that, release the screwdriver.
Cable
Alarm Input:
1 2 /
IPC
GND1/GND2
Alarm Output:
1A/2A
IPC
1B/2B
4

Installation

Please make sure that the wall is strong enough to withstand 3 times
the weight of the camera and the bracket. Please install the camera
under dry environment. Here we take wall mounting for example.
① Insert a micro SD card into the card slot as shown below.
12
② Remove the protection cover of the lens interface and then install
the lens (not supplied) to the camera. Rotate the lens clockwise
until it is fixed firmly. Then plug the cable of auto iris to the auto
iris interface of the camera.
Sensor
+
Alarm
-
Power
+ -

Insert a micro SD card
