Assembly Instructions (cont.)
Assembling the Fan
1. Remove the rear grille locking nut (7) from the motor housing (11) by rotating it
anticlockwise.
2. Insert the rear grille (8) onto the motor housing (11) and position it so that the
locator posts on the motor housing align with the slotted holes on the rear grille.
3. Lock the rear grille into place with the rear grille locking nut (7) by tightening
the nut clockwise till the rear grille sits securely against the motor housing (11).
4. Slide the fan blade (6) onto the motor shaft (9) until the grooves of the fan
blade align with the pins of the motor shaft and the fan blade cannot be
pushed back any further.
5. Screw in the blade locking nut (5) onto the end of the motor shaft and tighten
by rotating it anticlockwise.
6. Attach the front grille (1) to the rear grille (8) by following the steps below:
I.
Firstly, install the grille cover (2) onto the front grille (1) using the grille cover
screw (4).

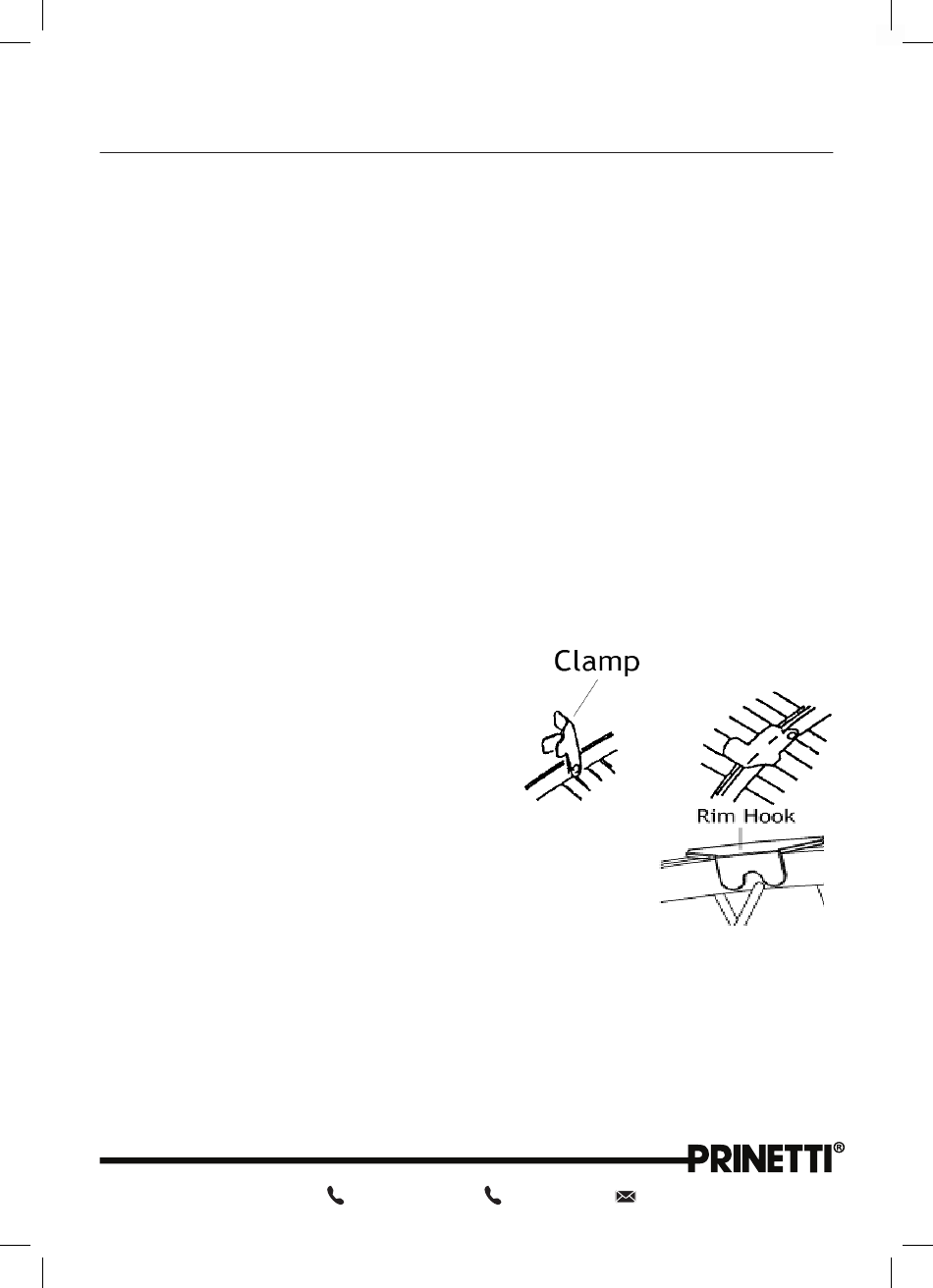

II. Pull up the clamps on the front grille
(1). Align the front and the rear grilles
ensuring that the two small holes found
on the bottom of the grilles line up.
III. Press down on the clamps ensuring
the rim of both front and rear grilles
are secured within the inside slot of
the clamps and push down on the rim
hook until it locks into place.
7. Insert the grille screw (3) into the aligned hole and tighten
it using the supplied nut.
8. Place the Fan on a dry, flat stable surface. You are now ready for operation.
