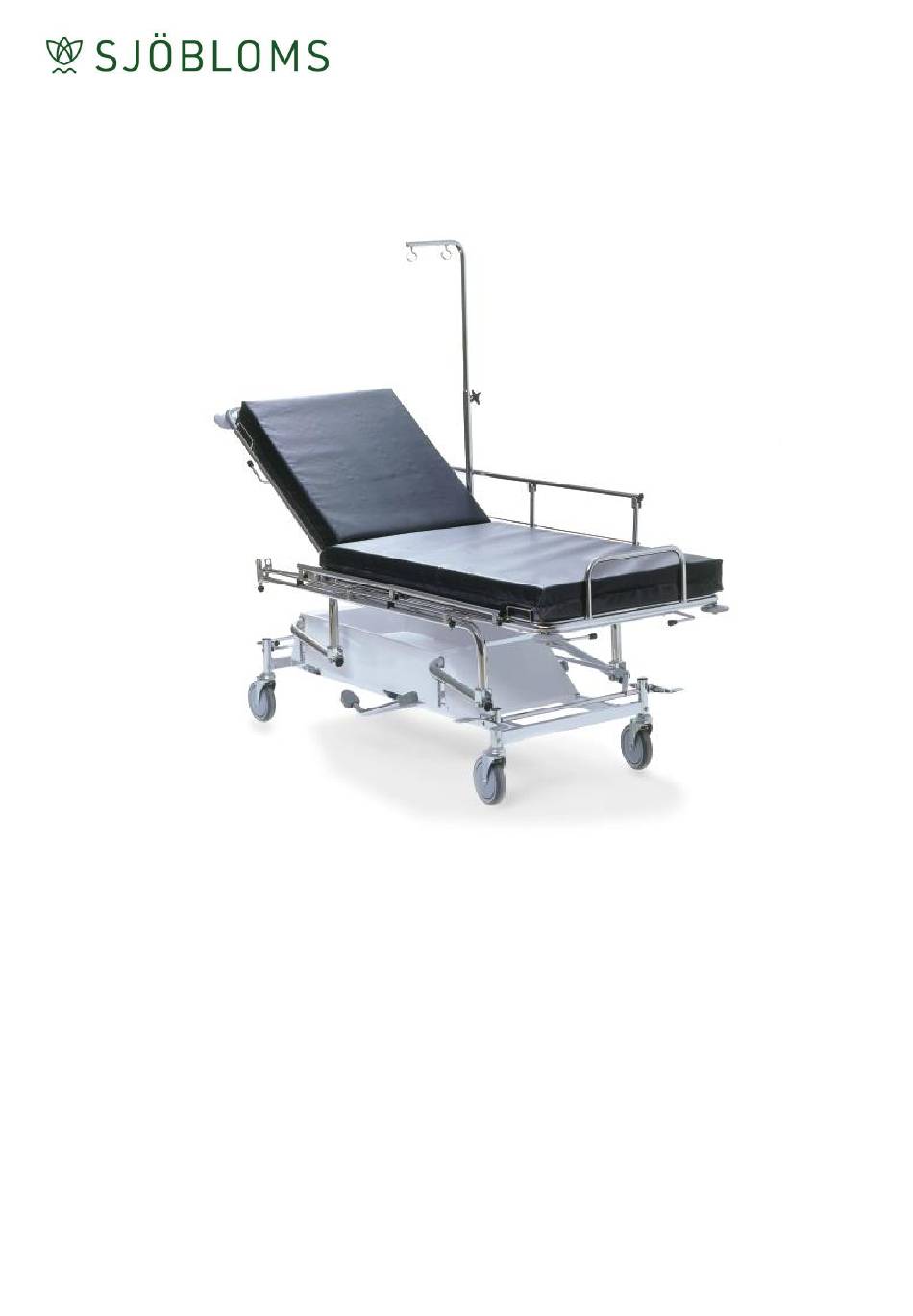

- Page 1 USER MANUAL EMERGENCY & PATIENT TROLLEY For models 030-1050, 030-1100 NOTE! The operator must read the user manual carefully BEFORE the product is used, to avoid unnecessary risks to the patient and operator. Ver 200319...
-
Page 2: Table Of Contents
Emergency patient trolley Table of contents TABLE OF CONTENTS Foreword Warranty Important information 1. Function Description General description 2. Operation Height adjustment Adjusting the backrest Adjusting the Trendelenburg position The function of the castors Side rails IV stand Paper roll holder The basket 3. -
Page 3: Warranty
Emergency patient trolley Foreword, warranty, information FOREWORD Welcome as the owner of a product manufactured by Sjöbloms Sjukvårdsutrustning AB. We hope that you will be pleased and satisfied with our quality product. If a problem should arise with this or any of our products, you are always welcome to contact us, and our service department will assist you with the expertise needed to solve the problem. -
Page 4: Function Description General Description
Emergency patient trolley Operation Functional description, General description 1. FUNCTIONAL DESCRIPTION This emergency patient trolley is meant for professional use in health care, for examination of the patient. It is designed to be a functional and user-friendly tool for the operator and patient. Note that the product must only be used by competent health professionals who read the user manual, for correct handling. -
Page 5: Operation
Emergency patient trolley Operation Height adjustment 2. OPERATION 2.1 Height adjustment To raise the emergency trolley Pump the longer part of the pedal to raise the chassis to the desired height. To lower the emergency trolley Press the shorter part of the pedal to lower the chassis to a desired height. NOTE! Ensure that no unauthorized persons are in the couch's working range, as a pinch hazard exists when raising and lowering the product. -
Page 6: Adjusting The Backrest
Emergency patient trolley Operation Adjusting the backrest 2.2 Adjusting the backrest Raising the backrest Press the handles that are positioned on the side of the back rest. Press the handle and the gas piston helps to raise the back rest (variably adjustable). -
Page 7: Adjusting The Trendelenburg Position
Emergency patient trolley Operation Adjusting the Trendelenburg position 2.3 Adjusting the Trendelenburg position Raising the Trendelenburg Stand at the foot-end side of the couch. Press one or both handles. Press the handle and the gas piston helps to raise the Trendelenburg position (variably adjustable). -
Page 8: The Function Of The Castors
Emergency patient trolley Operation The castors 2.4 The function of the castors The patient trolley is equipped with central locking castors and a directional-locking function, which helps transporting the chassis straight in long corridors. Unlocked castors Directional locked mode Braked mode SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 9: Siderails
Emergency patient trolley Operation The siderails 2.5 Siderails 1. Lift the black ball. 2. Fold the siderails using the other hand in the direction of the arrow. Done! When raising the siderails, make sure its mechanic clicks into position indicating it is fully raised. -
Page 10: Paper Roll Holder
Emergency patient trolley Operation The IV stand 2.6 IV stand The IV stand may be adjusted in height. Lock/open the knob and adjust the height. When the IV stand is folded, it may be stored as shown above. 2.7 Paper roll holder (accessory) It is possible to mount a paper roll holder onto a patient trolley. -
Page 11: The Basket
Emergency patient trolley Operation The basket 2.8 The basket (Accessory) Remove the black plug Place the basket holder on the foot-end side of the trolley. Insert the basket holder where the black plugs where placed. Done! Make sure that the pegs are pointed away from the trolley as shown. -
Page 12: Maintenance & Cleaning
Emergency patient trolley Maintenance and Cleaning Routine checks 3. MAINTENANCE AND CLEANING 3.1 Routine checks Routine inspections should be made to ensure proper functionality. Important! Failure to perform the following routine can cause the patient and/or operator to be exposed to unnecessary risks and the couch may have a reduced life expectancy. Please check all functions and parts on a regular basis. -
Page 13: Lubrication
Emergency patient trolley Maintenance & cleaning Lubrication 3.3 Lubrication Lubrication according to the schedule should be performed every 6 months or as needed. 1. First lock the castors. 2. Enlist the help of another person and tip the couch on the side, in order to lubricate the moving joints. -
Page 14: Spare Parts
Emergency patient trolley Maintenance & cleaning Spare parts 3.4 Spare parts Art no Article G0001-M Gas spring 00027848 Castor 00032427 Castor, directional locking HY001 Hydraulic pump SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 15: Accessories
Emergency patient trolley Maintenance & cleaning Spare parts 3.5 Accessories IV stand, siderails SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 16: Solutions For Lubrication, Cleaning And Disinfecting
Emergency patient trolley Declaration of conformity 3.6 Solutions for lubrication, cleaning and disinfection R-1, Cleaning solution for artificial leather 5557001, Lubrication C068, Disinfection solution, DAX Plus Cleaning solution Lubrication Disinfection SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 17: Technical Specification
Emergency patient trolley Technical specification Dimensions 4. Technical specification 4.1 Dimensions Length: 200 cm (215 including bumper wheels) Width: 70 cm Width including bumper wheels: 73 cm Width including siderails: ca 78 cm Height: 53-93 cm (with 5 cm pad) Length of backsupport: 75 cm Angle of backsupport: +64°... -
Page 18: Labels On The Product
Emergency patient trolley Technical specification Labels 4.5 Labels on the product The CE label contains the date, order number, serial number and our contact information. Max patient weight 200 kg. Displays the adjustment of the back rest. There is a label on each side of the chair. -
Page 19: Eu-Declaration Of Conformity
CE-marking Directive 93/68/EEC Type of equipment: Patient trolley, hydraulically adjustable Manufacturer: Sjöbloms Sjukvårdsutrustning AB Model: 030-1050 Product registration number: 13814 Model: 030-1100 Product registration number: 13814 The appendix contains documents that have been applied for verification of compliance. - Page 20 Emergency patient trolley Declaration of conformity Appendix to Declaration of Conformity The following harmonized standards have been applied: Standards Date Listing SS-EN 60601-1 C1 2010-05-06 SS-EN 60601-1-2 C1 2010-05-06 The following company standards or other technical specifications have been applied: Standards Date Listing...
- Page 21 Emergency patient trolley Contact information 6. CONTACT INFORMATION SJÖBLOMS Myrängsvägen 8 891 50 Örnsköldsvik Sweden Tel: +46 660 842 51 Fax: +46 660 180 00 E-mail: info@sjobloms.com Web page: www.sjobloms.com SJÖBLOMS +46 660 842 51 info@sjobloms.com...
