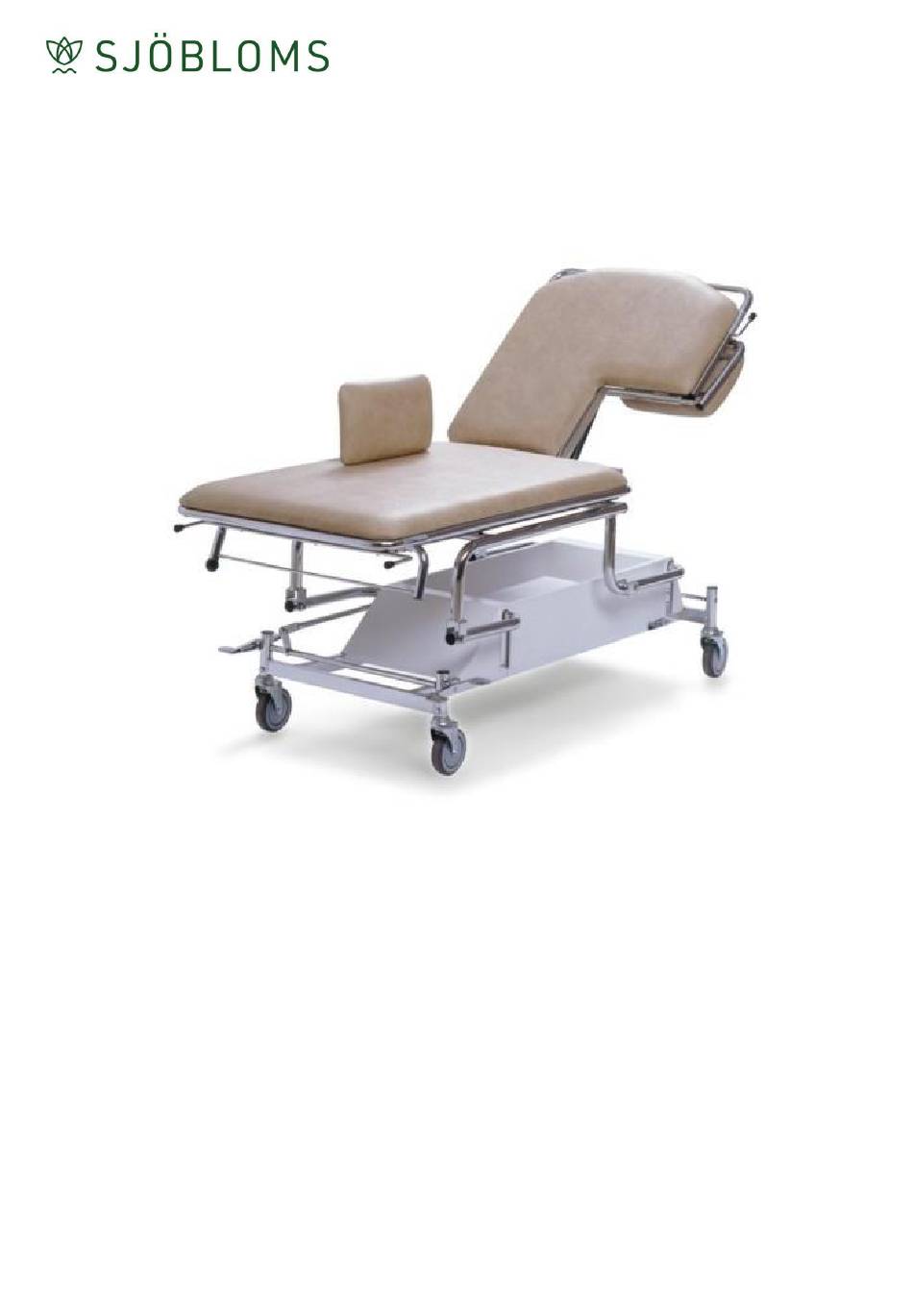

- Page 1 USER MANUAL ULTRASOUND TABLE For models 010-8251, 011-8251 NOTE! The operator must read the user manual carefully BEFORE the product is used, to avoid unnecessary risks to the patient and operator. Ver 200320...
-
Page 2: Table Of Contents
Ultrasound table Table of contents TABLE OF CONTENTS Foreword Warranty Important information 1. Function Description General description 2. Operation Connection Height adjustment Adjusting the backrest Adjusting the Trendelenburg position Replacing the paper roll Paper dispenser The function of the castors Cut-out pad section 3. -
Page 3: Foreword
Ultrasound table Foreword, important information FOREWORD Welcome as the owner of a product manufactured by Sjöbloms Sjukvårdsutrustning AB. We hope that you will be pleased and satisfied with our quality product. If a problem should arise with this or any of our products, you are always welcome to contact us, and our service department will assist you with the expertise needed to solve the problem. -
Page 4: Function Description
Ultrasound table Function description 1. FUNCTION DESCRIPTION This product is meant for professional use in health care, for examination of the patient. It is designed to be a functional and user-friendly tool for the operator and patient. Note that the product must only be used by competent health professionals who read the user manual, for correct handling. -
Page 5: Operation
Ultrasound table Operation Connection, height adjustment 2. OPERATION 2.1 Connection The plug should be connected to a grounded 230V outlet. The product is now ready for use. 2.2 Height adjustment Hydraulic Electric, foot controll Electric, hand control To raise the product (optional) (standard) Pump the longer part of... -
Page 6: Adjusting The Backrest
Ultrasound table Operation Adjusting the backrest 2.3 Adjusting the backrest Gas spring Electric, foot control Electric, hand control Raising the backrest Press at least one of the handles positioned on the side of the backrest. For exam table with two motors: The right pair regulates the backrest. -
Page 7: Adjusting The Trendelenburg Position
Ultrasound table Operation Adjusting the Trendelenburg 2.4 Adjusting the Trendelenburg position Electric, foot control Electric, hand control Gas spring (optional) To raise the (standard) Trendelenburg position, stand at the foot-end side of the table. Press one of, or both, the handles. -
Page 8: Replacing The Paper Roll
Ultrasound table Operation Paper-roll holder, dispenser 2.5 Replacing the paper roll (placed at the foot-end side) A. Unscrew the black ball. B. Push the metal rod to the left. C. Pull the rod gently towards you until it comes loose on the right side. -
Page 9: The Function Of The Castors
2-sectioned exam table Operation Castors 2.6 The function of the castors The product is equipped with either central locking castors or separately locking castors. Both versions include a directional-locking function, which helps transporting the chassis straight in long corridors. Central locking castors Directional locking mode Free castors Braked mode... -
Page 10: Cut-Out Pad Section
Ultrasound table Operation Cut-out section 2.7 Cut-out pad section Pull out the pad section. NOTE! Don’t leave the section hanging, risk of pinching. SJÖBLOMS +46 660 10580 info@sjobloms.com... - Page 11 Ultrasound table Operation Cut-out section Fold the pad all the way around as shown. Make sure the pin is inserted in the hole as shown. Done! SJÖBLOMS +46 660 10580 info@sjobloms.com...
-
Page 12: Maintenance & Cleaning
Ultrasound table Maintenance & cleaning Routine check-ups 3. MAINTENANCE & CLEANING 3.1 Routine check-ups Routine check-ups should be made to ensure proper functionality. Important! Failure to perform the following routine can cause the patient and/or operator to be exposed to unnecessary risks and the couch may have a reduced life expectancy. Please check all functions and parts on a regular basis. - Page 13 Ultrasound table Maintenance & Cleaning Lubrication 3.3 Lubrication Lubrication according to the scheme should be performed every 6 months or as needed. HYDRAULIC ELECTRIC 1. First lock the castors. 2. Enlist the help of another person and tip the couch on the side, in order to lubricate the moving joints.
-
Page 14: Spare Parts, Hydraulic
Ultrasound table Maintenance & Cleaning Spare parts, hydraulic 3.4 Spare parts, hydraulic Art no Article G0001 Gas spring 010-8540 Paper roll holder including ball 12532142120LPZ Castor, standard 12532142122LPZ Castor, braked 12532142123LPZ Castor, directional locked 125321630T2LPZ Castor, central-locking 125321630T3LPZ Castor, central-locking, directional-locking HY001 Hydraulic pump SJÖBLOMS... -
Page 15: Spare Parts, Electric
Ultrasound table Maintenance & Cleaning Spare parts, electric 3.5 Spare parts, electric Art no Article G0001 Gas spring 010-8540 Paper roll holder including ball 12532142120LPZ Castor, standard 12532142122LPZ Castor, braked 12532142123LPZ Castor, directional locked 125321630T2LPZ Castor, central locked 125321630T3LPZ Castor, central locked, directional locked HB814500001+01 Hand control, one motor, Linak HB824500004+11 Handkontroll två... - Page 16 Ultrasound table Maintenance & Cleaning Spare parts, electric 15-16 Art no Article FS1001 Fotkontroll en motor, Linak FS2001 Fotkontroll två motorer, Linak FS3001 Fotkontroll tre motorer, Linak CB9140AE3+000F0 Styrenhet Linak, nätfrånskiljare 314100+1115004E Lyftmotor Linak 312100+3115004C Ryggstödsmotor Linak 312100+1110004C Chocklägesmotor Linak SJÖBLOMS +46 660 10580 info@sjobloms.com...
-
Page 17: Accessories
Ultrasound table Maintenance & Cleaning Acessories 3.6 Accessories Central locking castors Back support Not in picture Battery backup (for electric ultrasound tables only) Electrically adjustable backrest (for electric ultrasound tables only) Electrically adjustable Trendelenburg (for electric ultrasound tables only) SJÖBLOMS +46 660 10580 info@sjobloms.com... -
Page 18: Solutions For Lubrication, Cleaning And Disinfecting
Ultrasound table Maintenance & Cleaning Solutions for lubrication and cleaning 3.7 Solutions for lubrication and cleaning R-1, Artificial leather cleaning solution 5557001, Lubrication for medical furniture C068, Disinfection solution Lubrication Cleaning solution Disinfection solution SJÖBLOMS +46 660 10580 info@sjobloms.com... -
Page 19: Technical Specification
Ultrasound table Technical specifications Dimensions 4. TECHNICAL SPECIFICATION 4.1 Dimensions Length 200 cm Length backrest 75 cm Width 70 cm Weight 67 kg Height 53-91 cm Max patient weight 200 kg SWL 220 kg Angle backrest 71 Angle Trendelenburg -14 SJÖBLOMS +46 660 10580 info@sjobloms.com... -
Page 20: Motors And Control Units
Ultrasound table Technical specifications Motors, control units 4.2 Motors and control units The motors comply with EMC directives in accordance with standard EN 60601-1-2. At full load, the motors can be used a maximum of 6 minutes/hour. The actuator manufacturer guarantees at least 10 000 cycles performance. Control units Max. -
Page 21: Battery Backup
Ultrasound table Technical specifications Battery backup 4.3 Battery backup (optional) General The batteries used in the control unit are sealed lead batteries. The included power cord should be plugged into an electrical outlet with 230 volts. The charger will recharge the battery in less than 12 hours. The charger can safely be connected for charging for extended periods. -
Page 22: Labels
Ultrasound table Technical specifications Labels 4.4 Labels The CE label contains the date, order number, serial number and our contact information. Max patient weight 200 kg. Displays the adjustment of the backrest. There is a label on each side of the table. Displays the adjustment of the Trendelenburg position. -
Page 23: Eu-Declaration Of Conformity
CE-marking Directive 93/68/EEC Type of equipment: Examination table, hydraulic or electric Manufacturer: Sjöbloms Sjukvårdsutrustning AB Model: 010-8251 Product registration number: 13958 Model: 011-8251 Product registration number: 13949 The appendix contains documents that have been applied for verification of compliance. - Page 24 Ultrasound table Contact info 6. CONTACT INFORMATION SJÖBLOMS Myrängsvägen 8 891 50 Örnsköldsvik Sweden Tel: +46 660 105 80 Fax: +46 660 180 00 E-mail: info@sjobloms.com Web page: www.sjobloms.com SJÖBLOMS +46 660 10580 info@sjobloms.com...
