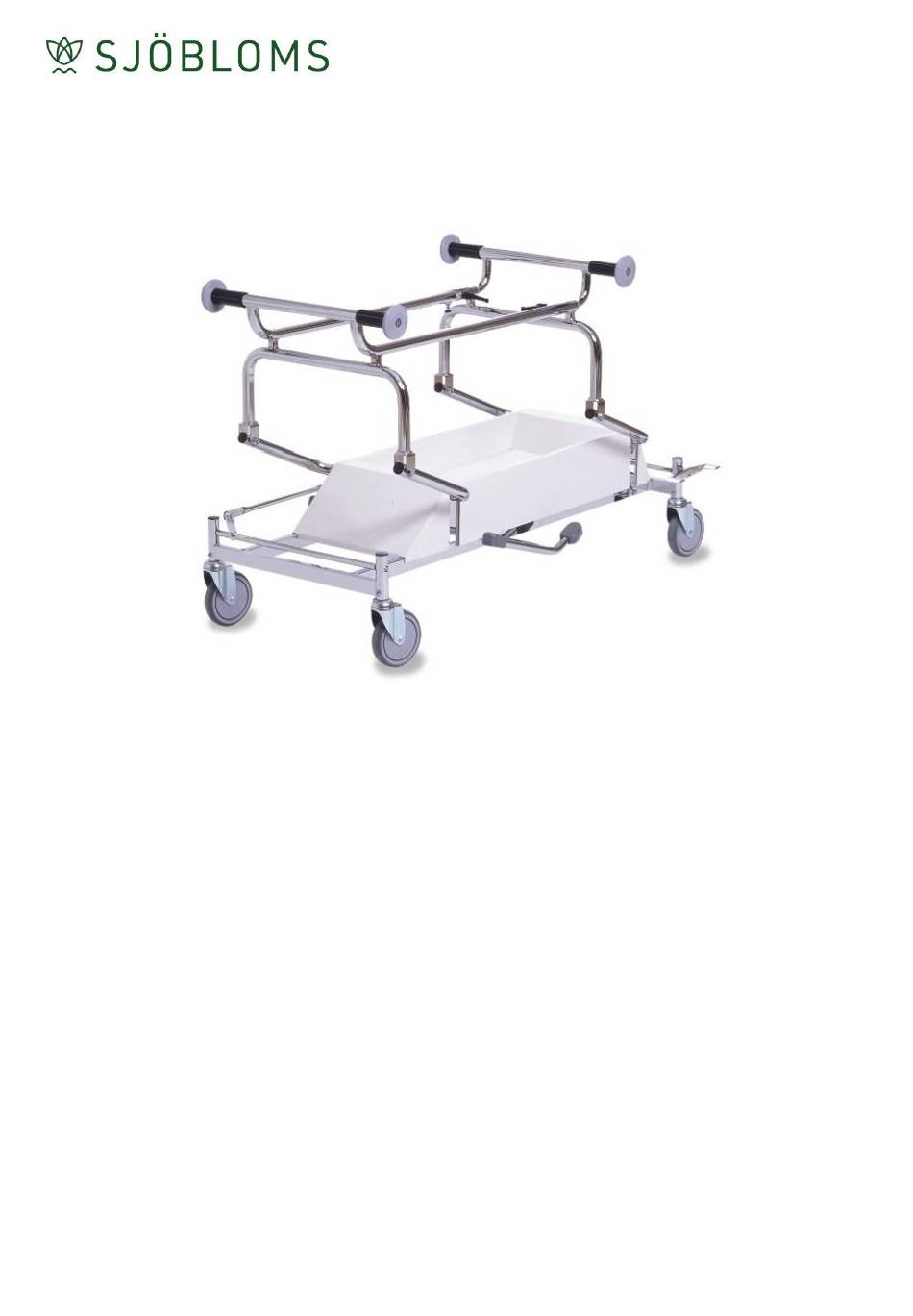

- Page 1 USER MANUAL Chassis for stretchers For model 030-2030 NOTE! The operator must read the user manual carefully BEFORE the product is used, to avoid unnecessary risks to the patient and operator. Ver 200319...
-
Page 2: Table Of Contents
Stretcher Chassis Table of contents TABLE OF CONTENTS Foreword Warranty Important information 1. Function Description General description 2. Operation Height adjustment The function of the castors Adjusting the top 3. Maintenance & Cleaning Routine checks Cleaning Lubrication scheme Solutions for lubrication, cleaning and disinfecting 4. -
Page 3: Foreword
Stretcher Chassis Foreword, warranty, information FOREWORD Welcome as the owner of a product manufactured by Sjöbloms Sjukvårdsutrustning AB. We hope that you will be pleased and satisfied with our quality product. If a problem should arise with this or any of our products, you are always welcome to contact us, and our service department will assist you with the expertise needed to solve the problem. -
Page 4: Function Description
Stretcher Chassis Functional description 1. FUNCTIONAL DESCRIPTION This product is meant for professional use in health care, for transport of the patient. It is designed to be a functional and user-friendly tool for the operator and patient. Note that the product must only be used by competent health professionals who read the user manual, for correct handling. -
Page 5: Operation
Stretcher Chassis Operation Height adjustment 2. OPERATION 2.1 Height adjustment To raise the chassis Pump the longer part of the pedal to raise the chassis to the desired height. To lower the chassis Press the shorter part of the pedal to lower the chassis to a desired height. NOTE! Ensure that no unauthorized persons are in the couch's working range, as a pinch hazard exists when raising and lowering the product. -
Page 6: The Function Of The Castors
Stretcher Chassis Operation The function of the castors 2.2 The function of the castors The chassis is equipped with central locking castors and a directional-locking function, which helps transporting the chassis straight in long corridors. Unlocked castors Directional locked mode Braked mode SJÖBLOMS +46 660 842 51... -
Page 7: Adjusting The Top
Stretcher Chassis Operation Adjusting the top 2.2 Adjusting the top The top is adjusted in length between 102 and 127 cm. Release the inner tube by unlocking the handle (1). When the inner tube is at its maximum length, the lock-pin (2) locks the tube. Pull the pin downwards and move the top. -
Page 8: Maintenance & Cleaning
Stretcher Chassis Maintenance & Cleaning Routine checks, cleaning 3. MAINTENANCE & CLEANING 3.1 Routine check-ups Routine check-ups should be made to ensure proper functionality. Important! Failure to perform the following routine can cause the patient and/or operator to be exposed to unnecessary risks and the couch may have a reduced life expectancy. Please check all functions and parts on a regular basis. -
Page 9: Lubrication Scheme
Stretcher Chassis Maintenance & Cleaning Lubrication scheme 3.3 Lubrication scheme Lubrication according to the scheme should be performed every 6 months or as needed. First lock the castors. Have someone help you to tip the couch on the side, in order to lubricate the moving joints. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 10: Solutions For Lubrication, Cleaning And Disinfecting
Stretcher Chassis Maintenance & Cleaning Solutions for lubrication, cleaning and disinfecting 3.4 Solutions for lubrication, cleaning and disinfecting R-1, Cleaning solution for artificial leather 5557001, Lubrication C068, Disinfection solution, DAX Plus Cleaning solution Lubrication Disinfection SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 11: Technical Specification
Stretcher Chassis Technical specifications Dimensions 4. TECHNICAL SPECIFICATIONS 4.1 Dimensions Length: 150 cm Width: 65 cm Height: 58-94 cm Weight: 40 kg Max patient weight: 200 kg SWL: 220 kg SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 12: Labels On The Product
Stretcher Chassis Technical specifications Labels on the product 4.5 Labels on the product The CE label contains the date, order number, serial number and our contact information. Max patient weight 200 kg. SJÖBLOMS +46 660 842 51 info@sjobloms.com... -
Page 13: Eu-Declaration Of Conformity
MDD 2007/42/EC including Appendix and according to CE-marking Directive 93/68/EEC Type of equipment: Incubator chassis, hydraulic Manufacturer: Sjöbloms Sjukvårdsutrustning AB Modell: 030-2030 Product registration number: 13814 The appendix contains documents that have been applied for verification of compliance. Manufacturer Sjöbloms Sjukvårdsutrustning AB Myrängsvägen 8... - Page 14 Stretcher Chassis EU-Declaration of Conformity Appendix to Declaration of Conformity The following harmonized standards have been applied: Standards Date Listing SS-EN 60601-1 C1 2010-05-06 SS-EN 60601-1-2 C1 2010-05-06 The following company standards or other technical specifications have been applied: Standards Date Listing LVFS 2009:18...
- Page 15 Stretcher Chassis Contact Information 6. CONTACT INFORMATION SJÖBLOMS Myrängsvägen 8 891 50 Örnsköldsvik Sweden Tel: +46 660 105 80 Fax: +46 660 180 00 E-mail: info@sjobloms.com Web page: www.sjobloms.com SJÖBLOMS +46 660 842 51 info@sjobloms.com...
