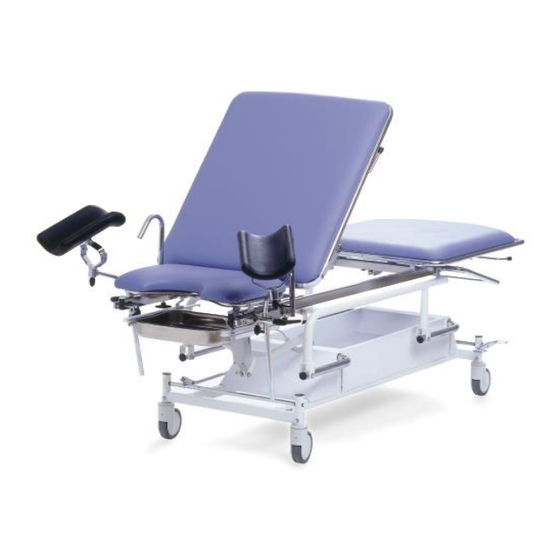

- Page 1 USER MANUAL COMBI-GYN COMBINATION GYNAECOLOGY CHAIR - EXAMINATION TABLE For models 015-2050, 016-2050 NOTE! The operator must read the user manual carefully BEFORE the product is used, to avoid unnecessary risks to the patient and operator. Ver 170815...
-
Page 2: Table Of Contents
Combi-Gyn Table of contents TABLE OF CONTENTS Foreword, warranty, important information 1. Function Description General description 2. Operation Connection When the patient is seated Height adjustment Adjusting the back support Adjusting the seat section/Trendelenburg position Replacing the paper-roll The function of the castors Patient handles Leg supports 2.10 The function of the siderail and leg support handles... - Page 3 Combi-Gyn Foreword, warranty, important information FOREWORD Welcome as the owner of a gynecology chair manufactured by Sjöbloms Medical Equipment AB. We hope that you will be pleased and satisfied with our quality product. If a problem should arise with any of our products, you are always welcome to contact us, and our service department will assist you with the expertise needed to solve the problem.
-
Page 4: Function Description
Combi-Gyn Operation Adjusting the backrest 1. FUNCTIONAL DESCRIPTION This Combi-gyn is meant for professional use in health care, for examination of the patient. It is designed to be a functional and user-friendly tool for the operator and patient. Note that the product must only be used by competent health professionals who read the user manual, for correct handling. -
Page 5: Operation
Combi-Gyn Operation Connection, height adjustment 2. OPERATION 2.1 Connection of Combi-gyn The plug should be connected to a grounded 230V outlet. The product is now ready for use. 2.2 Height adjustment Foot control Hand control (the foot control is standard) (optional) Follow the arrows to adjust the couch up and... - Page 6 Combi-Gyn Operation When the patient is being seated 2.3 When the patient is seated To maximize safety, it is important that the staff helps the patient be seated correctly and that the product is placed correctly while doing so. Before examination: 1.
- Page 7 Combi-Gyn Operation Adjusting the backrest 2.4 Adjusting the backrest Gas spring Hydraulics/gas spring Grab at least one of the handles that are positioned on the side of the back rest. Push the handle up and the gas spring helps to raise the back rest (variably adjustable).
-
Page 8: Adjusting The Seat Section/Trendelenburg Position
Combi-Gyn Operation Adjusting Trendelenburg 2.5 Adjusting the seat section/Trendelenburg position Electric, foot control Electric, hand control The right pair regulates the back rest or the seat section/shock position. Press the yellow button in the middle to switch between these functions. The left pair adjusts the height of the gynecology Look at the symbols and... -
Page 9: Replacing The Paper-Roll
Combi-Gyn Operation Replacing the paper-roll 2.6 Replacing the paper-roll A. Unwind the black ball without fully removing it. B. Push the metal rod to the left. C. Pull the metal rod gently towards you, it will then detach from the right-hand side placement. -
Page 10: The Function Of The Castors
Combi-Gyn Operation The function of the castors 2.7 The function of the castors The gynecology chair is equipped with central locking castors. Free castors Braked castors SJÖBLOMS +46 660 84251 info@sjobloms.com... -
Page 11: Patient Handles
Combi-Gyn Operation Patient handles, leg supports 2.8 Patient handles The patient handles can be adjusted along the accessory rail (arrow), and also be completely removed from the rail when necessary. 2.9 Leg supports Standard Integral The Combi-Gyn is available with two different types of leg supports, Standard and Integral. -
Page 12: The Function Of The Siderail And Leg Support Handles
Combi-Gyn Operation The handles 2.10 Function of the siderail and leg support handles The handles are tightened clockwise and eased counterclockwise. If you have to turn more than once, but you can not gain access because of the frame being in the way etc. as the picture two, pull the handle down (applies to handle A) or towards yourself (applies to handle B), then the tension mode is opened and you can turn back the handle without the achieved tension being released. -
Page 13: Colposcope Attachment
Combi-Gyn Operation Colposcope attachment 2.11 Colposcope attachment 1. Remove the bolt and nut from the lift arm joint (A). 2. Remove the bolt and nut that are located on the lower part of the colposcope (B). 3. Place the colposcope attachment fixed bolt through the lift arm joint and the supplied loose bolt in the top pre-drilled hole (C). - Page 14 Combi-Gyn Operation Procto/recto attachment 2.12 Proctologi/rerectoscopy attachment Guide in the supplied support legs of the procto/recto attachment under the gynecology chair from the short side. Get assistance from another person and turn the gynecology chair so that it rests on the side. Attach using the enclosed screws.
- Page 15 Combi-Gyn Operation Procto/recto attachment Proctologi/rerectoscopy attachment Maximum recommended patient weight: 120 kg. A. Lower the gynecology chair to its lowest position and remove the leg supports. B. Pull out the support legs. C. Adjust the feet so that both are resting solidly against the floor. D.
- Page 16 Combi-Gyn Operation Procto/recto attachment The metal lock (see circle) Place the knee supports at the desired automatically locks when you press in height. Ensure that both sides are the procto/recto attachment. Only fitted correctly before placing weight press the metal lock if necessary. Make on the product.
-
Page 17: Maintenance & Cleaning
Gynaecology chair Maintenance & Cleaning Routine check-ups 3. MAINTENANCE AND CLEANING 3.1 Routine check-ups Routine inspections should be made to ensure proper functionality. Important! Failure to perform the following routine can cause the patient and/or operator to be exposed to unnecessary risks and the couch may have a reduced life expectancy. Please check all functions and parts on a regular basis. -
Page 18: Lubrication Scheme
Combi-Gyn Maintenance and cleaning Lubrication scheme 3.3 Lubrication scheme Lubrication according to the schedule should be performed every 6 months or as needed. 1. First lock the wheels. 2. Enlist the help of another person and tip the couch on the side, in order to lubricate the moving joints. -
Page 19: Spare-Part List
Combi-Gyn Maintenance and cleaning Spare-parts 3.4 Spare-part list Combi-Gyn Item no. Description G0001 Gas spring for back support DET015-007CR Paper-roll holder 125321630T2LPZ Castor standard 125321630T3LPZ Castor directional locking 343100+0015004A Lift Motor Linak 312100+1110004C Backrest motor Linak 312100+1110004C Trendelenburg motor Linak FS2001 Foot control two motors, Linak FS3001... - Page 20 Combi-Gyn Maintenance and cleaning Accessories 3.5 Accessories Neck cushion Patient handles White-coated chassis Proctology/rectoscopy attachment SJÖBLOMS +46 660 84251 info@sjobloms.com...
-
Page 21: Solutions For Lubrication, Cleaning And Disinfecting
Combi-Gyn Maintenance and cleaning Solutions for lubrication, cleaning and disinfecting 3.6 Solutions for lubrication, cleaning and disinfecting R-1, Cleaning solution for artificial leather 5557001, Lubrication C068, Disinfection solution, DAX Plus Cleaning solution Lubrication Disinfection SJÖBLOMS +46 660 84251 info@sjobloms.com... -
Page 22: Technical Specification
Combi-Gyn Technical specification Dimensions 4. TECHNICAL SPECIFICATION 4.1 Dimensions Length 200 cm Length backrest 1, 75 cm Length backrest 2 (gyn position backrest), 85 cm Width 70 cm Width seat 55 cm (pad 53 cm) Weight 88 kg (without patient handles) Height 57-95 cm. -
Page 23: Motors And Controllers
Combi-Gyn Technical specification Motors and controllers 4.3 Motors and controllers The motors comply with EMC directives in accordance with standard EN 60601-1-2. At full load, the motors can be used a maximum of 6 minutes/hour. The actuator manufacturer guarantees at least 10 000 cycles performance. Controllers Max. -
Page 24: Battery Backup
Combi-Gyn Technical specification Battery backup 4.3 Battery backup (optional) General The batteries used in the control unit are sealed lead batteries. The included power cord should be plugged into an electrical outlet with 230 volts. The charger will recharge the battery in less than 12 hours. The charger can safely be connected for charging for extended periods. -
Page 25: Labels
Combi-Gyn Technical specification Labels 4.5 Labels on the products The CE label contains the date, order number, serial number and our contact information. Max patient weight 165 kg Displays the adjustment of the back rest. There is a label on each side of the chair. -
Page 26: Eu-Declaration Of Conformity
5. EU-Declaration of Conformity EU DECLARATION OF CONFORMITY according to MDD 2007/42/EC including Appendix and according to CE-marking Directive 93/68/EEC Type of equipment: Gynaecology and examination table Model: 015-2050 Product registration number: 13958 Model: 016-2050 Product registration number: 16437 Manufacturer Sjöbloms Sjukvårdsutrustning AB... -
Page 27: Contact Details
Combi-Gyn Contact details 6. CONTACT DETAILS SJÖBLOMS Myrängsvägen 8 891 50 Örnsköldsvik Sweden Tel: +46 660 4842 51 Fax: +46 660 180 00 E-mail: info@sjobloms.com Web page: www.sjobloms.com SJÖBLOMS +46 660 84251 info@sjobloms.com...
