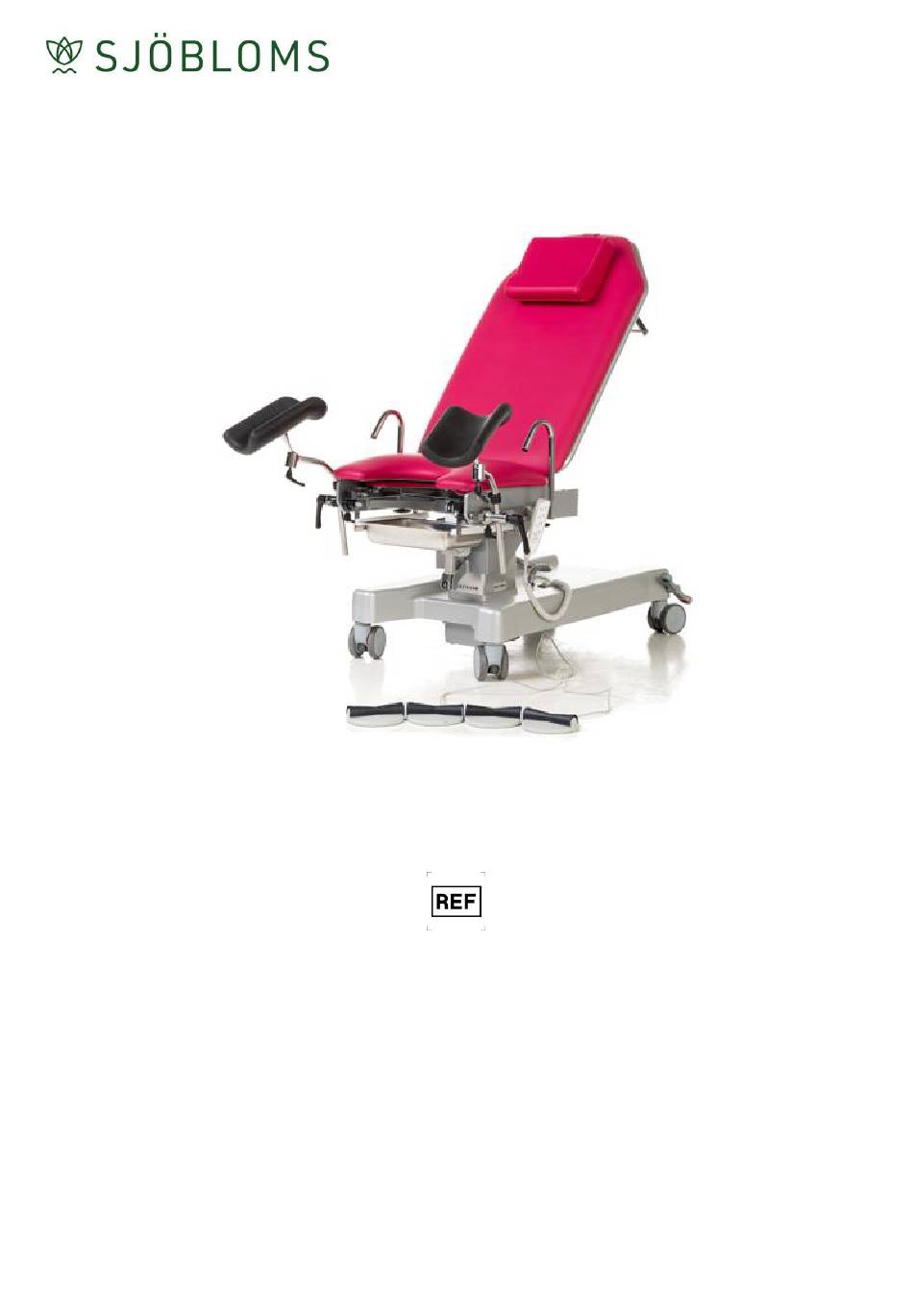

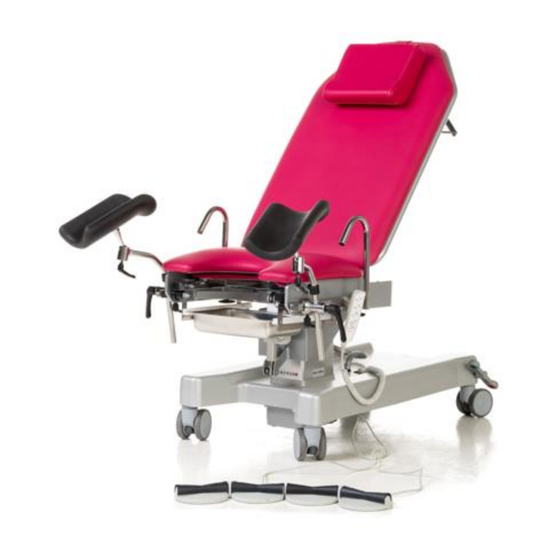

- Page 1 USER MANUAL GYNAECOLOGY EXAMINATION COLUMN TABLE Model: 016-5000 NOTE! The operator must read the user manual carefully BEFORE the product is used, to avoid unnecessary risks to the patient and operator. Ver 200320...
-
Page 2: Table Of Contents
Gyn column table Table of contents TABLE OF CONTENTS Foreword, warranty, important information 1. Function description General description 2. Operation Connection Height adjustment When the patient sits down Backrest adjustment Seat/Trendelenburg adjustment Paper-roll holder Castors Battery backup Leg plate 2.10 Patient handles 2.11 Legrests 2.12 Neck cushion 2.13 Knobs and handles... - Page 3 Gyn column table Foreword, warranty, important info FOREWORD Welcome as the owner of a product manufactured by Sjöbloms Sjukvårdsutrustning AB. We hope that you will be pleased and satisfied with our quality product. If a problem should arise with this or any of our products, you are always welcome to contact us, and our service department will assist you with the expertise needed to solve the problem.
-
Page 4: Function Description
Gyn column table Operation 1. FUNCTION DESCRIPTION This gynaecology examination table is for professional use in health care only, for examination of the patient. It is designed to be a functional and user-friendly tool for the operator and patient. Note that the product must only be used by competent health professionals who read the user manual, for correct handling. -
Page 5: Operation
Gyn column table Operation 2. OPERATION 2.1 Connection The plug should be connected to a grounded outlet. The product is now ready for use. 2.2 Height adjustments Foot control Hand control Follow the symbols and arrows to regulate the chair. On the hand control, height is adjusted via button line 2. -
Page 6: When The Patient Sits Down
Gyn column table Operation 2.3 When the patient sits down We recommend that the staff helps the patient down, especially elderly and younger patients, so that they sit correctly. Lock the castors before the patient is seated. The patient is to be seated mid-seat leaning backwards against the backrest. Max load 165 kg. - Page 7 Gyn column table Operation Leg plate NOTE! It is NOT allowed to sit on the pulled-out leg plate. The leg plate only intended for temporary resting of the legs. SJÖBLOMS +46 660 84251 info@sjobloms.com...
-
Page 8: Backrest Adjustment
Gyn column table Operation Backrest 2.4 Backrest adjustment Foot control Hand control Follow the symbols and arrows to regulate the chair. On the hand control, height is adjusted via button line 2. Ensure that no unauthorized persons are in the couch's working range. SJÖBLOMS +46 660 84251 info@sjobloms.com... - Page 9 Gyn column table Operation Trendelenburg 2.5 Adjusting Trendelenburg Hand control Foot control Follow the symbols and arrows to regulate the chair. On the hand control, height is adjusted via button line 2. Button line 4 on the hand control plus one of the foot controls activates ”Treatment and Start position”.
-
Page 10: Paper-Roll Holder
Gyn column table Operation Paper-roll holder 2.6 Paper-roll holder 1. Pull out the lock. 2. Turn the lock upwards 3. Remove the steel from the hole on the oposite side and place the roll onto it. 4. Place the steel in the left hole and set the lock to its original. -
Page 11: Castors
Gyn column table Operation Castors 2.7 Castors Central locking castors are included Locked Unlocked 2.8 Battery backup With the optional battery backup you can run the chair if the power is cut. Connects to the back of the chair. SJÖBLOMS +46 660 84251 info@sjobloms.com... -
Page 12: Leg Plate
Gyn column table Operation Leg plate 2.9 Leg plate Dra i handtaget, den parallella kromade The leg plate is placed under the seat stången undertill (BILD 1) tills det tar stopp (BILD 2) Pull the leg plate towards you so that the front is raised. -
Page 13: Patient Handles
Gyn column table Operation Patient handles and legrests 2.10 Patient handles 2.11 Leg rests 2.10 The patient handles can be adjusted along the accessory rail (arrow), and also be completely removed from the rail when necessary. 2.11 The part onto which the leg rests is made of integral foam and may be adjusted variously via a ball-joint. -
Page 14: Knobs And Handles
Gyn column table Operation Knobs and handles 2.13 Låsvredens funktion The handles are tightened clockwise and eased counter- clockwise. If you have to turn more than once, but you can not gain access because of the frame being in the way etc. as the picture two, pull the handle down (applies to handle A) or towards yourself (applies to handle B), then the... -
Page 15: Maintenance And Cleaning
Maintenance, cleaning Blood Sample chair Routine controls, cleaning 3. MAINTENANCE AND CLEANING 3.1 Routine check-ups Routine check-ups should be made to ensure proper functionality. Important! Failure to perform the following routine can cause the patient and/or operator to be exposed to unnecessary risks and the couch may have a reduced life expectancy. Please check all functions and parts on a regular basis. -
Page 16: Accessories
Gyn column table Maintenance and cleaning Accessories, spareparts 3.3 Accessories Art nr Item 010-5000-70 Battery backup 3.4 Spare parts Art nr Item BL141HA11324B-M Lifting column CB6S654+X2009 Control box CB06 J01297 Hand control 2362102000100G4 Motor leg plate J15591 Motor Trendelenburg J09980 Motor backrest 00771985 Castor... -
Page 17: Technical Specification
Gyn column table Technical specifications 4. TECHNICAL SPECIFICATIONS 4.1 Dimensions Length: 134 cm Length including legplate: 174 cm Width: 55 cm Seat height: 55-95 cm Max height at leg plate rim when extended and the seat angle is max out: 115 cm Backrest length: 92 cm Backrest angle: 10-60°... - Page 18 Gyn column table Technical specifications Control box 4.2 Motors and control units The motors comply with EMC directives in accordance with standard EN 60601-1-2. At full load, the motors can be used a maximum of 6 minutes/hour. The actuator manufacturer guarantees at least 10 000 cycles performance. Control units Max.
-
Page 19: Battery Backup
Gyn column table Technical specifications Battery backup 4.3 Battery backup (optional) Allmänt General The batteries used in the control unit are sealed lead batteries. The included power cord should be plugged into an electrical outlet with 230 volts. The charger will recharge the battery in less than 12 hours. The charger can safely be connected for charging for extended periods. -
Page 20: Labels
Gyn column table Technical specifications Labels 4.4 Labels The CE label contains the date, order number, serial number and our contact information. Max patient weight 165 kg. Shows not to sit on the leg plate SJÖBLOMS +46 660 84251 info@sjobloms.com... -
Page 21: Eu-Declaration Of Conformity
5. EU-DECLARATION OF CONFORMITY EU-DECLARATION OF CONFORMITY according to MDD 2007/42/EC including Appendix and according to CE-marking Directive 93/68/EEC Type of equipment: Gynaecology examination table, electric Art nr: 016-5000 Product registration number: 197141 Manufacturer Sjöbloms Sjukvårdsutrustning AB Myrängsvägen 8 S-891 50 ÖRNSKÖLDSVIK, SWEDEN Sjöbloms Sjukvårdsutrustning AB ensures that the above products are in... - Page 22 Gyn column table Contact info 6. CONTACT INFORMATION SJÖBLOMS Myrängsvägen 8 891 50 Örnsköldsvik Sweden Tel: +46 660 105 80 Fax: +46 660 180 00 E-mail: info@sjobloms.com Web page: www.sjobloms.com SJÖBLOMS +46 660 84251 info@sjobloms.com...
