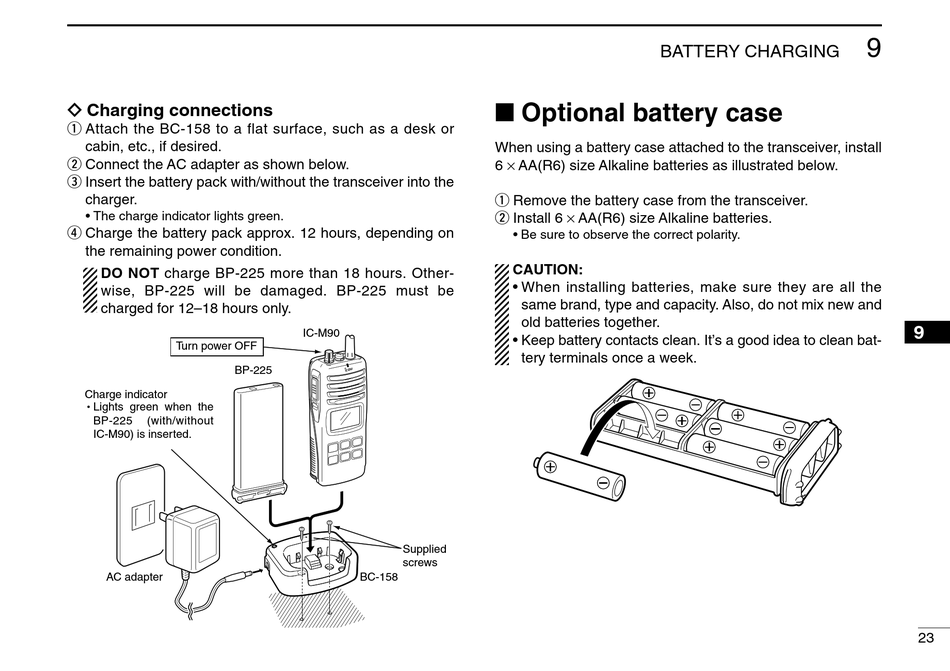

ï Charging connections
q Attach the BC-158 to a flat surface, such as a desk or
cabin, etc., if desired.
w Connect the AC adapter as shown below.
e Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights green.
r Charge the battery pack approx. 12 hours, depending on
the remaining power condition.
DO NOT charge BP-225 more than 18 hours. Other-
wise, BP-225 will be damaged. BP-225 must be
charged for 12–18 hours only.
Turn power OFF
BP-225
Charge indicator
Lights green when the
BP-225 (with/without
IC-M90) is inserted.
AC adapter
IC-M90
Supplied
screws
BC-158
BATTERY CHARGING

I Optional battery case

When using a battery case attached to the transceiver, install
6 × AA(R6) size Alkaline batteries as illustrated below.
q Remove the battery case from the transceiver.
w Install 6 × AA(R6) size Alkaline batteries.
• Be sure to observe the correct polarity.
CAUTION:
• When installing batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new and
old batteries together.
• Keep battery contacts clean. It's a good idea to clean bat-
tery terminals once a week.
