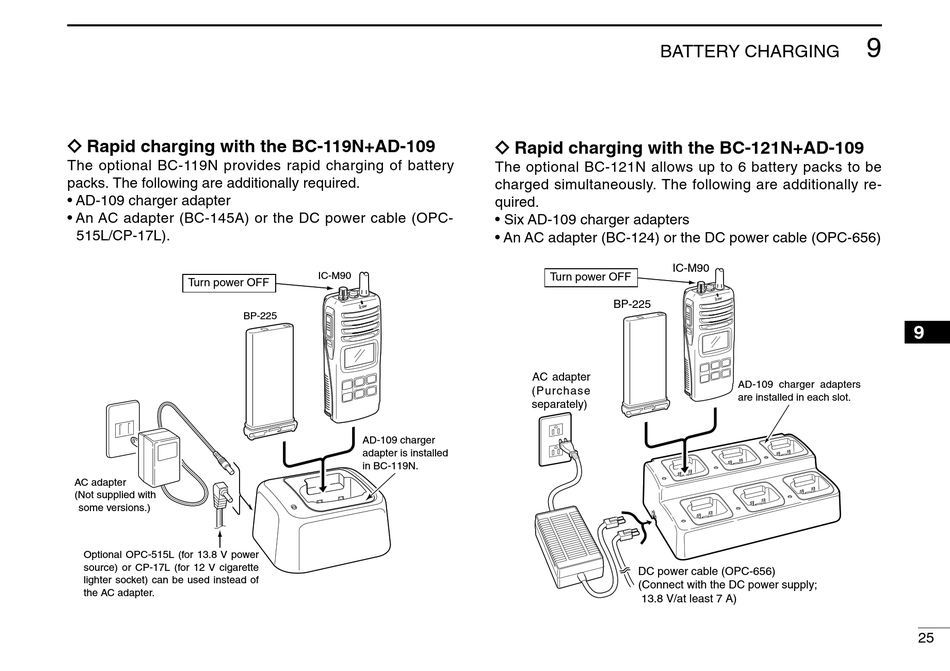

ï Rapid charging with the BC-119N+AD-109
The optional BC-119N provides rapid charging of battery
packs. The following are additionally required.
• AD-109 charger adapter
• An AC adapter (BC-145A) or the DC power cable (OPC-
515L/CP-17L).
Turn power OFF
BP-225
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L (for 13.8 V power
source) or CP-17L (for 12 V cigarette
lighter socket) can be used instead of
the AC adapter.
ï Rapid charging with the BC-121N+AD-109
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following are additionally re-
quired.
• Six AD-109 charger adapters
• An AC adapter (BC-124) or the DC power cable (OPC-656)
IC-M90
AD-109 charger
adapter is installed
in BC-119N.
BATTERY CHARGING
IC-M90
Turn power OFF
BP-225
AC adapter
(Purchase
separately)
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
9
9
AD-109 charger adapters
are installed in each slot.
25
