Congratulations on purchasing one of Australia's
Toughest high pressure water blasters.
Superior Cleaning – designed to last!
OPERATORS MANUAL
6, 13 & 20 hp
Apply to MODELS:
Portable:
Skid-Mounts (Bulki Bin):
Trailer Mounts:
Index:
Page:
2
Technical data / Specifications
3/4
Installation & Start-up
5
Operating Tips, Shutting down, Regular Checks
6/7
Maintenance Schedule
8/9
Trouble Shooting Guide
10
What can cause expensive damage to your machine?
11
WARNINGS & SAFETY INSTRUCTIONS
12
MEDIC ALERT Information
13/14 Warranties
15
Terms & Conditions of Sale
15
Pump info, by-pass valve info, electrical plan
for

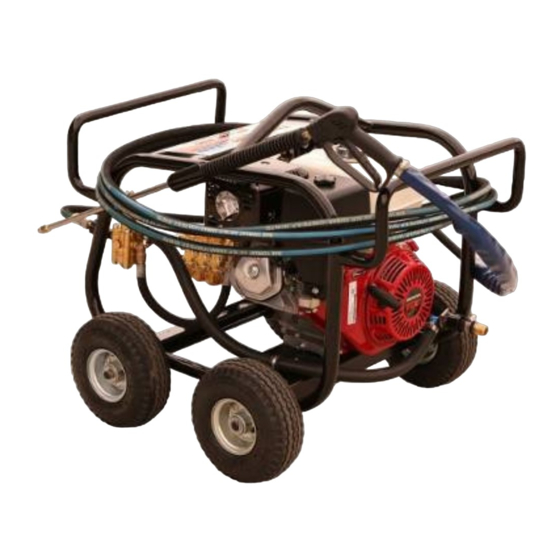

HONDA PETROL DRIVEN
PRESSURE CLEANERS
P6i-17C, P6R-17C, P13C-36C, P13i-30C, P13R-30C, P20R-43C
P13R-30C-BB, P13R-30C-BBO, P20R-43C-BB, P20R-43C-BBO
P13R-30C-T, P13R-30C-TO, P20R-43C-T, P20R-43C-TO
COLD WATER
Manufactured by:
ThoroughClean Water Blasters
12 Ashburn Road, Bundamba,
QLD 4304, Australia
Ph: +61 (0) 7 5467 2025
www.thoroughclean.com.au
Model & Serial: ...............................
Date of Purchase: ............................
Purchased from: ..............................
....................................................
Advertisement
Table of Contents
Related Manuals for ThoroughClean P6i-17C
Summary of Contents for ThoroughClean P6i-17C
- Page 1 OPERATORS MANUAL 6, 13 & 20 hp HONDA PETROL DRIVEN COLD WATER PRESSURE CLEANERS Apply to MODELS: Portable: P6i-17C, P6R-17C, P13C-36C, P13i-30C, P13R-30C, P20R-43C Skid-Mounts (Bulki Bin): P13R-30C-BB, P13R-30C-BBO, P20R-43C-BB, P20R-43C-BBO Trailer Mounts: P13R-30C-T, P13R-30C-TO, P20R-43C-T, P20R-43C-TO Index: Page: Technical data / Specifications Installation &...
- Page 2 P6i-17C & P13C-36C P13i-30C & P20i-43C & P13 & P20 BB P6R-17C P13R-30C P20R-43C (skid) & Trailers Build Spec Industrial vs. Commercial Industrial Industrial Rental Rental Rental Rental Frame Type Portable Painted Portable Painted Portable Painted Portable Painted Skid vs. Trailer vs.
-
Page 3: Installation
Read WARNINGS & SAFETY INSTRUCTIONS before operating machine INSTALLATION Inspect shipment for damages during transit and unpack • Top engine fuel tank up with clean, fresh, Petrol • WARNING – PLEASE READ SAFETY INSTRUCTIONS FIRST! For portable machines: Connection supply hose to water supply: •... -
Page 4: Regular Checks
Move the grey fuel lever all the way to the top • Pull out the Choke • Turn the ignition key clockwise to the START position • As soon as the engine fires up, push the Choke back in • The engine is now running, pump is pumping and water is running in by-pass. - Page 5 Operating Pressure - Check operating pressure to see if it within 10% of units specified • operating pressure. If pressure drops over time it may indicate general wear and tear and a service is recommended. Air Leaks - Especially in suction to pump hoses. Repair immediately if found. Check for •...
-
Page 6: Maintenance Schedule
MAINTENANCE SCHEDULE: This maintenance schedule does not include the Engine Maintenance Schedule. Please refer to Honda Operators Manual or the HONDA website. ACTION REQUIRED DAILY 50 HRS 250 HRS 500 HRS ANNUAL Replace high pressure nozzle/jet required Check Water Filters – Clean or Replace if damaged Inspect for leaks and repair all HP Accessories like gun, hose, swivel, hose reel swivel, nozzle... - Page 7 Suction Filters (Blocked?) • Water supply volume (Not too low) • As a guide in normal use, consider the following: After replacing 10 x high pressure Stainless Steel jets/nozzles, it is time to replace the seals on the pump using a Seal Kit. At the same time, also replace the seals on the By-Pass Valve using a By-Pass kit, or if economically viable, replace by-pass valve.
-
Page 8: Troubleshooting Guide
TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSE REMEDY COMMENT MACHINE WILL Power not plugged in and switched Plug into appropriate outlet and If Electrical NOT START switch on at the wall, then at the machine No Fuel Check Fuel. Re-fill fuel tank. If Petrol or Diesel No Fuel Open fuel tank ball valve or fuel... - Page 9 PSI LOW AFTER Fair Wear / Tear? Check – Replace HP Jet Check Recent PERIOD OF USE Activity/Usage Suction/Delivery HP Outlet Valves Check – Replace Therefore Check suction Worn Filters Unloader Valve Worn Replace as required Piston Seals Worn Replace as required Check Big Ends for Piston Slap Piston Cracked...
- Page 10 HOW TO CAUSE EXPENSIVE DAMAGE TO YOUR MACHINE WHAT WAS DONE WRONG: WHAT WAS THE RESULT OF THIS ACTION: Machine was allowed to run dry Cracked and burnt high pressure seals in pump. (without water supply) No. 1 piston cracked due to thermal shock. Unit was run on low volume Mechanical damages to EVERYTHING: water supply and allowed to...
- Page 11 Read WARNINGS & SAFETY INSTRUCTIONS before operating machine HIGH PESSURE, HIGH VELOCITY WATER IS DANGEROUS! GENERAL PRESSURE CLEANER WARNINGS AND SAFETY PRECAUTIONS When shutting down, always turn off machine, turn off water at the source and trigger the • gun pointing the lance in a safe direction to release any in-line stored pressure - before disconnecting hoses or working on machine.
- Page 12 WARNINGS & SAFETY PRECAUTIONS SPECIFIC TO THIS MACHINE: • Never re-fuel when the engine is hot – Petrol fumes can ignite and explode leading to severe burns and even death! Use only Clean / Fresh POTABLE Water - NOT Mine recycled water. •...
-
Page 13: Limited Warranty
(contained in the relevant owners manual supplied with this product), by an authorised ThoroughClean dealer or ThoroughClean service technician. You are free to have your ThoroughClean product serviced by any suitably qualified mechanic or electrical (depending on the requirement mechanical or electrical) and this will not affect your... -
Page 14: Warranty Contact Information
All warranties will be carried out by ThoroughClean authorised staff or appointed agents at a premises to be determined by the Manufacturer. It is the responsibility (and cost) of ThoroughClean or our appointed agent to return the machine to be repaired or replaced under warranty to the consumer – this is valid for Australian territories only. -
Page 15: Terms And Conditions Of Sale
(if this change leads to extra manufacturing cost or more expensive/extra components) and be charged as a variation cost. 3. Ownership/title of all equipment remains the property of ThoroughClean until paid for in full. Warranty will only be available after this time. -
Page 17: Spare Parts List
SPARE PARTS LIST LISTA RICAMBI Pos .I Codice Part Q.tà/Pompa Description Descrizione Number Q.ty/Pump 0202.02 Crankcase Carter ® ® ® ® ® ® ® 0001.01 Plunger oil seal Anello radiale 0601.07 "O" Ring Ø1.78x31,47 "O" Ring Ø1.78x31,47 ® ® ® ® ® 1201.03 Pressure ring 18mm Pressore Ø18... -
Page 18: Spare Parts Kit
SPARE PARTS LIST LISTA RICAMBI Pos .I Codice Part Q.tà/Pompa Description Descrizione Number Q.ty/Pump ® ® ® ® ® ® ® 1400.12 Copper spacer Rosetta rame ® ® ® ® ® Plunger 18mm 1200.09 Pistone Ø18 ® ® Plunger 20mm 1200.10 Pistone Ø20 1400.15... -
Page 20: Specifications
GENERAL PUMP A member of the Interpump Group K7 UNLOADER VALVE K7.0 2.1 - 2.9 GPM @ 0 - 3000 PSI K7.1 2.9 - 4.2 GPM @ 0 - 3000 PSI K7.2 4.2 - 6.6 GPM @ 0 - 3000 PSI K7.3 6.6 - 10.8 GPM @ 0 - 3000 PSI Features all stainless and brass internal parts. -
Page 21: Parts List
GENERAL PUMP A member of the Interpump Group PARTS LIST K7 Unloader Valve NO. PART NO. DESCRIPTION KIT NO. QTY. 92.2368.00 99.3084.00 Screw 96.7014.00 Washer 90.3849.00 O-Ring 36.3095.70 Spring Plate 94.7466.00 Spring 36.3094.66 Seat Valve 90.5052.00 Anti-Extrusion Ring 90.3820.00 O-Ring 90.3582.00 O-Ring 36.3097.02...
