Congratulations on purchasing one of Australia's
Toughest high pressure water blasters.
Superior Cleaning – designed to last!
OPERATORS MANUAL

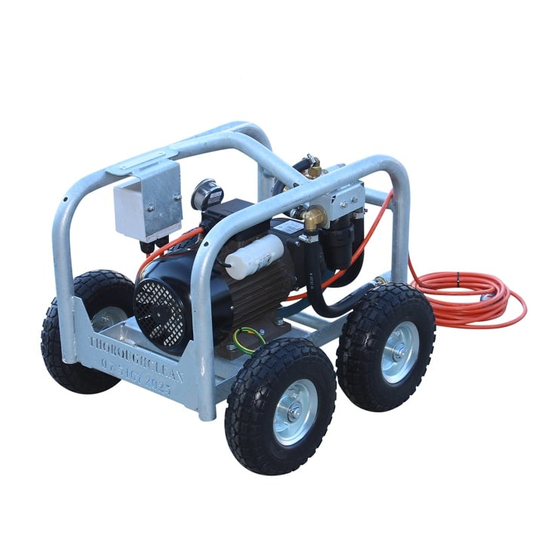

ELECTRIC COLD WATER PORTABLE MODELS
E3R-22C
E3i-22C
Index:
Page:
2
Technical data / Specifications
3
Installation & Start-up
4
Operating Tips, Shutting down, Regular Checks
5
Maintenance Schedule
6/7
Trouble Shooting Guide
8
What can cause expensive damage to your machine
9
WARNINGS & SAFETY INSTRUCTIONS
10
MEDIC ALERT Information
11/12 Warranties
13
Terms & Conditions of Sale
14-
Pump info, by-pass valve info, electrical plan
for
E15i-43C
Manufactured by:
ThoroughClean Water Blasters
12 Ashburn Road, Bundamba,
QLD 4304, Australia
Ph: +61 (0) 7 5467 2025
www.thoroughclean.com.au
Model: ..........................................
Serial No.: .....................................
Date of Purchase: ............................
Purchased from: ..............................
E15R-43C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ThoroughClean E3R-22C
Summary of Contents for ThoroughClean E3R-22C
- Page 1 E15R-43C E3i-22C Index: Page: Technical data / Specifications Manufactured by: Installation & Start-up ThoroughClean Water Blasters Operating Tips, Shutting down, Regular Checks 12 Ashburn Road, Bundamba, Maintenance Schedule QLD 4304, Australia Ph: +61 (0) 7 5467 2025 Trouble Shooting Guide www.thoroughclean.com.au...
- Page 2 E3i-22C E3R-22C E15i-43C E15R-43C Build Spec Industrial Spec Heavy Duty Rental Industrial Spec Heavy Duty Rental Spec – Gal Frame Spec Power 240 Volt 10 Amp 240 Volt 10 Amp 415 Volt 32 Amp 415 Volt 32 Amp Requirements 240 Volt 15 Amp...
-
Page 3: Installation
Read WARNINGS & SAFETY INSTRUCTIONS before operating machine INSTALLATION Inspect shipment for damages during transit and unpack • Connection to appropriate 240 or 415 Volt / 3-Phase power supply ensure all three • phases are connected and of suitable capacity. (Polarity not important.) Ensure power outlet is appropriately earthed and fitted with an earth leakage safety •... -
Page 4: Shutting Down
OPERATING/CLEANING TIPS: 1. Using a Fan Jet, first blast off heavy soil or dirt build-up. The unit comes standard with a 15 degree nozzle correctly sized for the pressure and flow for your machine. Always use the same size nozzle (NEW) to test the machine for performance 2. -
Page 5: Maintenance Tips
MAINTENANCE SCHEDULE: ACTION REQUIRED DAILY 50 HRS 250 HRS 500 HRS ANNUAL Replace high pressure nozzle/jet required Check Water Filters – Clean or Replace if damaged Inspect for leaks and repair all HP Accessories like gun, hose, swivel, hose reel swivel, nozzle Inspect all electrical cabling for damage or wear –... -
Page 6: Troubleshooting Guide
TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSE REMEDY COMMENT MACHINE WILL Power not plugged in and switched Plug into appropriate outlet and If Electrical NOT START switch on at the wall, then at the machine No Fuel Check Fuel. Re-fill fuel tank. If Petrol or Diesel No Fuel Open fuel tank ball valve or fuel... - Page 7 PSI LOW AFTER Fair Wear / Tear? Check – Replace HP Jet Check Recent PERIOD OF USE Activity/Usage Suction/Delivery HP Outlet Valves Check – Replace Therefore Check suction Worn Filters Unloader Valve Worn Replace as required Piston Seals Worn Replace as required Check Big Ends for Piston Slap Piston Cracked...
- Page 8 HOW TO CAUSE EXPENSIVE DAMAGE TO YOUR MACHINE WHAT WAS DONE WRONG: WHAT WAS THE RESULT OF THIS ACTION: Machine was allowed to run dry Cracked and burnt high pressure seals in pump. (without water supply) No. 1 piston cracked due to thermal shock. Unit was run on low volume Mechanical damages to EVERYTHING: water supply and allowed to...
- Page 9 Read WARNINGS & SAFETY INSTRUCTIONS before operating machine HIGH PESSURE, HIGH VELOCITY WATER IS DANGEROUS! GENERAL PRESSURE CLEANER WARNINGS AND SAFETY PRECAUTIONS When shutting down, always turn off machine, turn off water at the source and trigger the • gun pointing the lance in a safe direction to release any in-line stored pressure - before disconnecting hoses or working on machine.
- Page 10 WARNINGS & SAFETY PRECAUTIONS SPECIFIC TO THIS MACHINE: Ensure machine is electrically tested and tagged in accordance with local regulations. • Use only Clean / Fresh POTABLE Water - NOT Mine recycled water. • Always be conscious of High Velocity Water from this machine which can cause serious •...
-
Page 11: Limited Warranty
(contained in the relevant owners manual supplied with this product), by an authorised ThoroughClean dealer or ThoroughClean service technician. You are free to have your ThoroughClean product serviced by any suitably qualified mechanic or electrical (depending on the requirement mechanical or electrical) and this will not affect your... -
Page 12: Warranty Contact Information
Manufacturer. It is the responsibility (and cost) of ThoroughClean or our appointed agent to return the machine to be repaired or replaced under warranty to the consumer – this is valid for Australian territories only. -
Page 13: Terms And Conditions Of Sale
(if this change leads to extra manufacturing cost or more expensive/extra components) and be charged as a variation cost. 3. Ownership/title of all equipment remains the property of ThoroughClean until paid for in full. Warranty will only be available after this time. -
Page 14: Specifications
GENERAL PUMP A member of the Interpump Group K7 UNLOADER VALVE K7.0 2.1 - 2.9 GPM @ 0 - 3000 PSI K7.1 2.9 - 4.2 GPM @ 0 - 3000 PSI K7.2 4.2 - 6.6 GPM @ 0 - 3000 PSI K7.3 6.6 - 10.8 GPM @ 0 - 3000 PSI Features all stainless and brass internal parts. -
Page 15: Parts List
GENERAL PUMP A member of the Interpump Group PARTS LIST K7 Unloader Valve NO. PART NO. DESCRIPTION KIT NO. QTY. 92.2368.00 99.3084.00 Screw 96.7014.00 Washer 90.3849.00 O-Ring 36.3095.70 Spring Plate 94.7466.00 Spring 36.3094.66 Seat Valve 90.5052.00 Anti-Extrusion Ring 90.3820.00 O-Ring 90.3582.00 O-Ring 36.3097.02... -
Page 18: Spare Parts List
SPARE PARTS LIST HAWK HD PUMPS SERIES LISTA RICAMBI Codice Q.tà/Pomp Pos .I Part Description Descrizione Number Q.ty/Pump 0202.92 Crankcase Carter 0001.05 Plunger oil seal Anello radiale 0601.81 "O" Ring Ø1.78x28,30 "O" Ring Ø1.78x28,30 1201.41 Pressure ring 18mm Pressore Ø18 0002.51 "U"... -
Page 19: Spare Parts Kit
SPARE PARTS LIST HAWK HD PUMPS SERIES LISTA RICAMBI Particolare disponibile Part available solo in kit in kit only Particolare disponibile Part available anche in kit in kit also SPARE PARTS KIT KIT RICAMBI Q.tà/Pomp Posizioni Item Part Number & Description Codice e Descrizione Q.ty/Pump 2600.44... - Page 20 XLT 2011 Technical Characteristics Caratteristiche Tecniche (vers. Ø25) Pump Pressure Volume Power Pompa Pressione Portata giri/min Potenza l/min 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz XLT3020S 2900 1000 1200 15.6...
- Page 21 XLT3020S XLT3816S XLT1830 XLT2230 XLT2530 XLT2520 XLT2730 XLT3025 XLT3020 XLT3325 XLT3517 XLT4017 XLT4014 XLT4317 XLT5015 XLT5415 HAWK Pompe XLT serie 2011 XLT pumps 2011 series...
- Page 22 SPARE PARTS KIT XLT 2011 Q.ty Item Part Number & Description Pump 2601.26 Plunger Seals 20 mm 2601.25 Plunger Seals 22 mm 3- 5- 7 2601.13 Plunger Seals 25 mm 2601.15 Plunger Seals 28 mm 2601.28 Complete seal Packing 20 mm 2601.27 Complete seal Packing 22 mm 3- 4- 5- 6- 7...
- Page 23 PARTS LIST XLT 2011 Part Q.ty/Pu Item Description Number 0202.97 Crankcase 0001.01 Plunger oil seal 0601.08 "O" Ring Ø1.78x37.82 1201.57 Pressure ring 20 mm 1201.59 Pressure ring 22 mm 1201.58 Pressure ring 25 mm 1201.56 Pressure ring 28 mm 0002.52 "U"...
- Page 24 PARTS LIST XLT 2011 Part Q.ty/Pu Item Description Number 0206.05 Crankshaft key 1600.16 Oil dip stick 0001.00 Cranckshaft seal 0301.00 Shim 0500.53 Bearing housing 1802.23 Plunger bolt 1408.13 Bonded seal 1200.32 Plunger 20 mm 1200.34 Plunger 22 mm 1200.33 Plunger 25 mm 1200.30 Plunger 28 mm Copper spacer...
- Page 25 Date Date Designed by Checked by Approved by 3/11/2011 A. Ferero Edition Sheet E3R-22C Circuit Diagram 1 / 1...
- Page 26 START STOP Designed by Checked by Approved by Date Date 22/11/2011 A. Ferero D. Cover Edition Sheet E15I Circuit Diagram 1 / 1...
- Page 27 STOP START 415V 30VA (10) (12) (11) GREY 1,2,3 - Supply 4,5 - Water shutdown. Instant. 6,7 - Timed shutdown set to OP Designed by Checked by Approved by Date Date 13/07/2012 Arno Edition Sheet E15R Circuit Diagram (EOL) 1 / 1...
