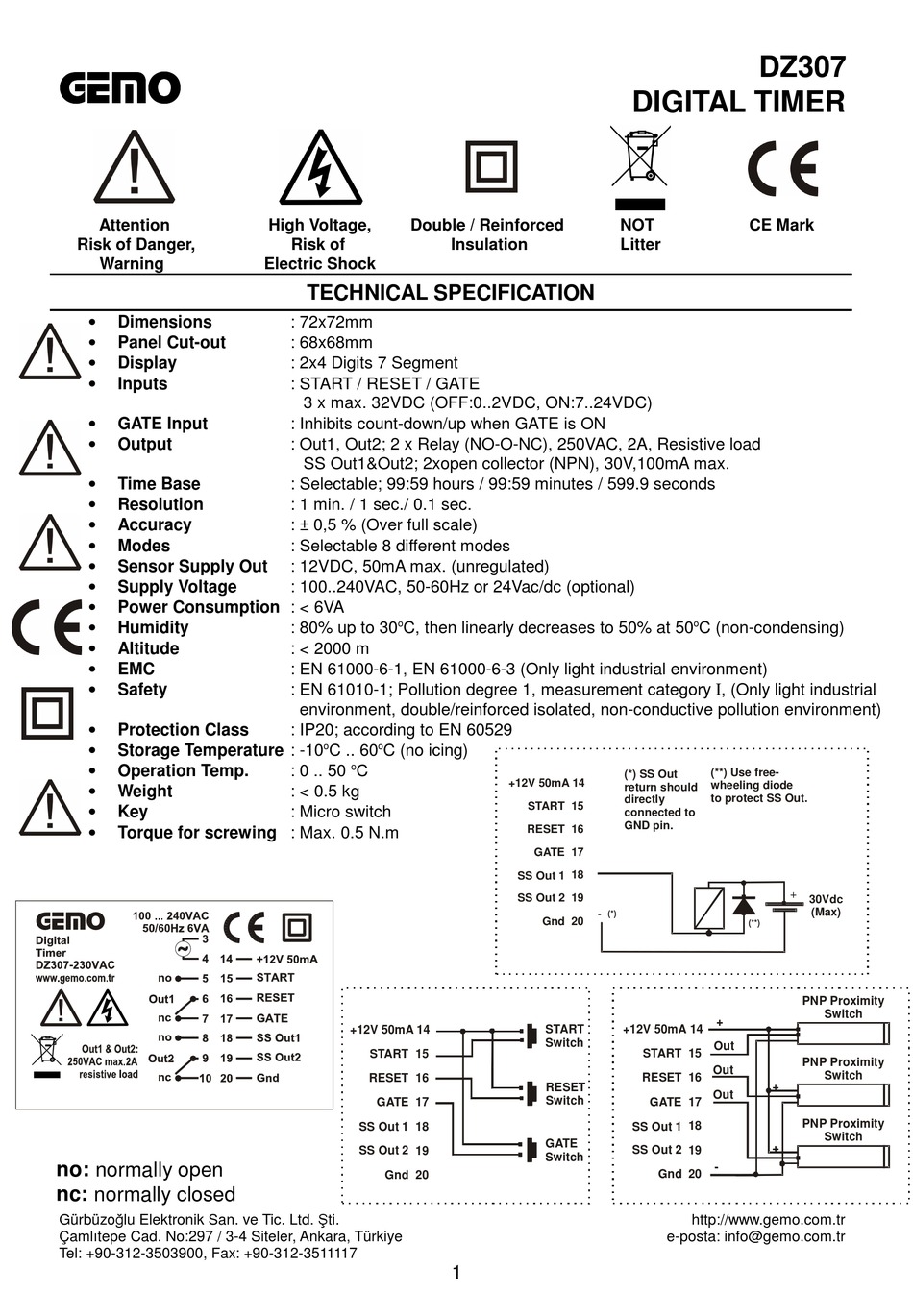

Gemo DZ307 Quick Start Manual

GEMO GEMO
GEMO GEMO
Attention
Risk of Danger,
Warning
•
Dimensions
•
Panel Cut-out
•
Display
•
Inputs
•
GATE Input
•
Output
•
Time Base
•
Resolution
•
Accuracy
•
Modes
•
Sensor Supply Out
•
Supply Voltage
•
Power Consumption : < 6VA
•
Humidity
•
Altitude
•
EMC
•
Safety
•
Protection Class
•
Storage Temperature : -10
•
Operation Temp.
•
Weight
•
Key
•
Torque for screwing : Max. 0.5 N.m
no: normally open
nc: normally closed
Gürbüzoğlu Elektronik San. ve Tic. Ltd. Şti.
Çamlıtepe Cad. No:297 / 3-4 Siteler, Ankara, Türkiye
Tel: +90-312-3503900, Fax: +90-312-3511117
High Voltage, Double / Reinforced
Risk of
Electric Shock
TECHNICAL SPECIFICATION
: 72x72mm
: 68x68mm
: 2x4 Digits 7 Segment
: START / RESET / GATE
3 x max. 32VDC (OFF:0..2VDC, ON:7..24VDC)
: Inhibits count-down/up when GATE is ON
: Out1, Out2; 2 x Relay (NO-O-NC), 250VAC, 2A, Resistive load
SS Out1&Out2; 2xopen collector (NPN), 30V,100mA max.
: Selectable; 99:59 hours / 99:59 minutes / 599.9 seconds
: 1 min. / 1 sec./ 0.1 sec.
: ± 0,5 % (Over full scale)
: Selectable 8 different modes
: 12VDC, 50mA max. (unregulated)
: 100..240VAC, 50-60Hz or 24Vac/dc (optional)
o
: 80% up to 30 C, then linearly decreases to 50% at 50
: < 2000 m
: EN 61000-6-1, EN 61000-6-3 (Only light industrial environment)
: EN 61010-1; Pollution degree 1, measurement category I, (Only light industrial
environment, double/reinforced isolated, non-conductive pollution environment)
: IP20; according to EN 60529
o o
C .. 60 C (no icing)
o
: 0 .. 50 C
: < 0.5 kg
: Micro switch
+12V 50mA 14
START 15
RESET 16
GATE 17
SS Out 1 18
SS Out 2 19
Gnd 20
NOT
Insulation Litter
+12V 50mA 14
START 15
RESET 16
GATE 17
18
SS Out 1
SS Out 2 19
-
(*)
Gnd 20
START +12V 50mA
Switch
RESET
Switch
GATE
Switch
1

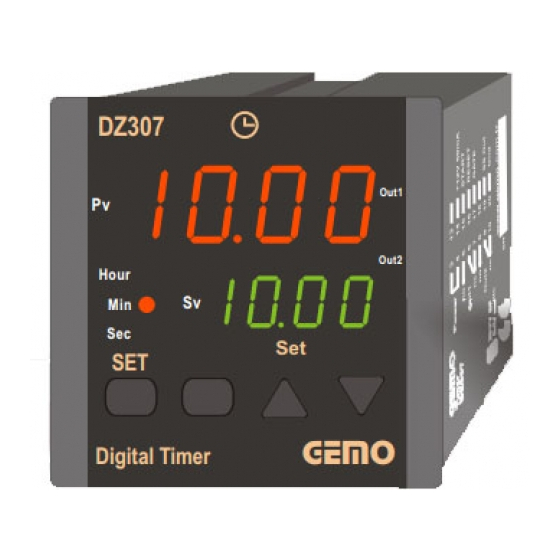

DZ307
DIGITAL TIMER
CE Mark
o
C (non-condensing)
(**) Use free-
(*) SS Out
wheeling diode
return should
to protect SS Out.
directly
connected to
GND pin.
+
(**)
+
14
Out
START 15
Out
RESET 16
+
Out
GATE 17
18
SS Out 1
+ +
SS Out 2
19
-
Gnd 20
http://www.gemo.com.tr
e-posta: info@gemo.com.tr
30Vdc
(Max)
PNP Proximity
Switch
PNP Proximity
Switch
PNP Proximity
Switch
