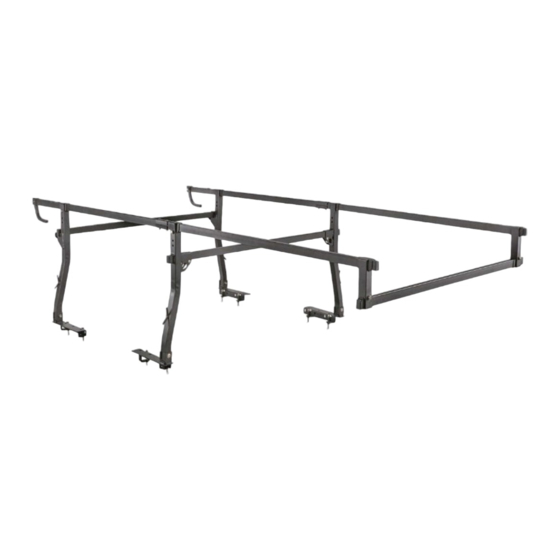

FULL SIZE STEEL TRUCK RACK
A
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Owner's Manual
Item# ENT5094
SAVE THESE INSTRUCTIONS
Enthuze Automotive Products
email: info@enthuze.ca
website: www.enthuze.ca
Advertisement
Table of Contents
Related Manuals for Enthuze ENT5094
Summary of Contents for Enthuze ENT5094
- Page 1 Enthuze Automotive Products email: info@enthuze.ca website: www.enthuze.ca FULL SIZE STEEL TRUCK RACK Owner's Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
-
Page 2: Table Of Contents
Table of Contents Intended Use ........................3 Technical Specifications ....................3 Important Safety Information ....................3 Specific Operation Warnings ..................... 4 Assembly lnstructions ......................5 Operating Instructions ...................... 9 Maintenance ........................10 Parts Diagram ........................10 Parts List ......................... 1 O Page 2 of 11... -
Page 3: Intended Use
Intended Use The CargoMaster 4 Post Steel Truck Rack installs in 10 minutes or less using basic hand tools. The no drill C-clamps and gold zinc-plated hardware add maximum strength and durability. In addition, the 2" powder-coated steel tubing construction won't rust and shoulders up to 1,000-lbs. of cargo. Each post includes 1 Y-hook and 2 tie-downs so hauling extra long loads is no problem. -
Page 4: Specific Operation Warnings
� WARNING PERSONAL SAFETY • Stay alert, watch what you are doing, and use common sense when operating the truck rack. Do not use the truck rack while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the truck rack may result in serious personal injury. -
Page 5: Assembly Lnstructions
• Be aware of openings and use larger containers that will not fall through gaps in the carrier's framework. • Do not carry loads that are wider or deeper than the rack. Always keep loads inside the rim of the rack. - Page 6 STEP 2 Though the square hole of front support (1) with M12x45 Carriage bolt(18) and screw the M12 Locking nut (25), and insert the cross bar (6)to the assembled support bar stepl, nut needn't tighten. Fig.2 Fig.2 STEP 3 Cover the connecting plate(ll) on the cross bar(6), and though the square hole of connecting plate(ll) with M12x70 Carriage bolt(23), screw the M12 Hex nut (27), nut needn't tighten.
- Page 7 STEP 4. Place the component of step 2&3 on the truck rack, though the 12 spring washer(28), 12 washer(29), the hole of fixed plate, screw the L-Clamp(l 7), install 8pcs on the left and right and screw. If L-Clamp(17)is not suitable for truck rack, The fixed plate has reserved mounting holes.
- Page 8 STEP 6. Place the component of step6 on the support, insert Connecting buckle(9), the thread direction is inwards. And though 12 spring washer(28) 12 washer(29)on the top hole of support with M12x55 Hex head cap screw(20), screw on the connecting buckle(9). Install and tighten bolts for each support.
-
Page 9: Operating Instructions
STEP7 Insert connecting pole(10) on the cross bar (6), the same way as step 6 to install. Fig.7 Fig.7 �� STEPS Place the component of step 7 on the front of truck rack or where you need install. the same way as step 6 to install, screw tighten. Operating Instructions &.WARNING •... -
Page 10: Maintenance
Maintenance • Maintain the truck rack with care. Inspect periodically, and if damaged, have it repaired by an authorized technician. • For your safety, maintenance should be performed regularly by a qualified technician. Parts Diagram Parts List Item# Description Picture Quantity Item# Description... - Page 11 M12x55 Hex Right fixed head cap plate screw Ml0x70 Hex Cross bar head cap screw � Front vertical M10x45 Carriage bolt � Rear vertical M12x70 Carriage bolt � M12x100Hex Connecting head cap buckle screw • Connecting M12 Locking pole Connecting Ml0 Locking plate ..
