Summary of Contents for Enthuze ENT4078

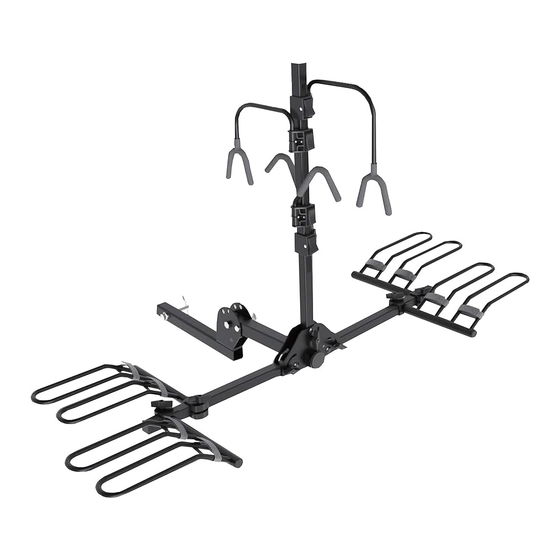

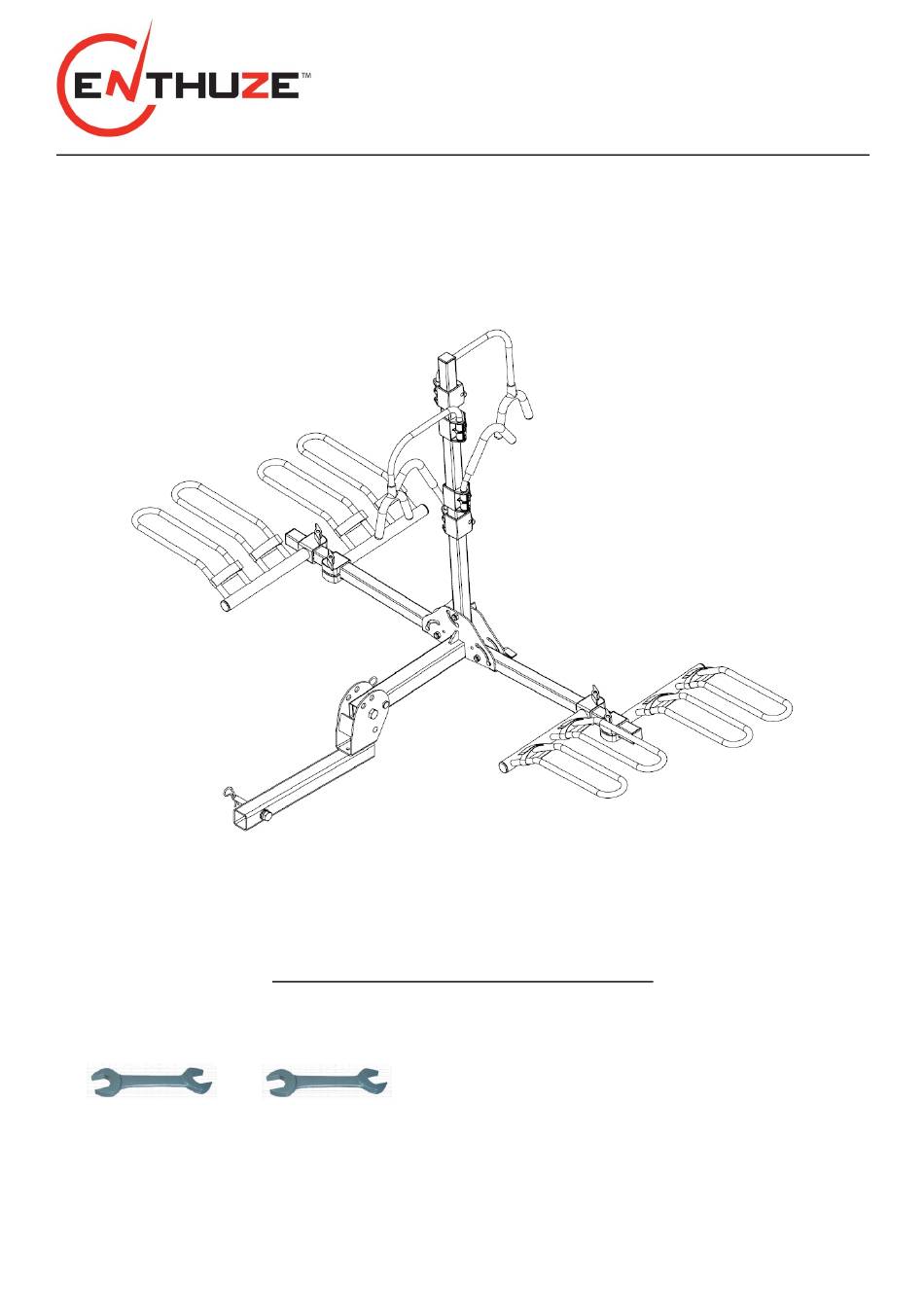

- Page 1 Enthuze Automotive Products email: info@enthuze.ca website: www.enthuze.ca PLATFORM BIKE CARRIER MAXIMUM LOADING CAPACITY – 160 LBS Recommended Tools for Assembly: Open Wrench Open Wrench （1pc） （2pc） Size=17mm Size=24mm...
- Page 2 Enthuze Automotive Products email: info@enthuze.ca website: www.enthuze.ca Assembly Instructions STEP 1 Assemble the primary frame by connecting the Support Base Assembly (part #1) and (2) Horizontal Tubes (part #2) using (2) 5/16" knob, (4) 5/16" flat washer , (2) 5/16" spring washer, (2) 5/16" hexagon bolt, (2) M10 Carriage bolts and (2) M10 Locknuts (parts #3, #4, #5,#6,#23 &...
- Page 3 Enthuze Automotive Products email: info@enthuze.ca website: www.enthuze.ca STEP 4 Slide the Left and Right Cradle Assemblies (parts #13 & #14) onto Horizontal Tubes. Release the knob of the left and right cradle. The knob should be facing up and the loop end of cradle should be facing outward and upward. Insert the cradles in sequence as shown below in Fig 4.
- Page 4 Enthuze Automotive Products email: info@enthuze.ca website: www.enthuze.ca STEP 6 Insert Folding Shank into 2” receiver, using Stabilizing Pin, 16 Spring Washer,16 Flat Washer, and Clip (parts #17, #18, #19 & #11) to secure. See FIG. 6 FIG. 6...
- Page 5 Enthuze Automotive Products email: info@enthuze.ca website: www.enthuze.ca Assembly Diagram and Parts List Part# Description Part# Description Support Base Assembly Right Cradle Assembly Horizontal Tube Long J-Hook Assembly 5/16" knob Short J-Hook Assembly 5/16" flat washer Stabilizing Pin 5/16" spring washer 16 Spring Washer 5/16"...
