Enthuze ENT60231 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Moderate
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Weight Carrying Capacity
Gross trailer weight (GTW)
Tongue weight (TW)
Parts List
Item Qty Description
1 4 Carriage bolt,
1/2"-13 x 1-1/2", grade 8
2 4 Square-hole spacer,
1/4" x 1" x 3"
3 4 Serrated-flange nut, 1/2"-13
4 2 Fishwire, 1/2"
Tools Required
Ratchet Torque wrench
Socket extension, 8" Drill
Socket, 10mm Drill bit, 7/16"
Socket, 19mm Aviation shears
Rotary tool Safety glasses
ENTHUZE.CA
• PRODUCT & WARRANTY SUPPORT: 877.287.8634
WARNING
Never exceed the vehicle manufacturer's recommended towing capacity.
We recommend the use of CURT #18050 stabilizing straps for all non-trailer (wheel-less) loads.

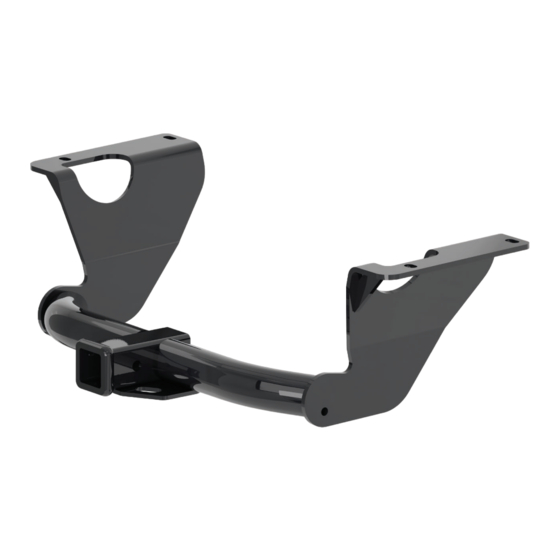

Product Photo
4,000 lbs.
600 lbs.
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
This installation requires drilling, hole enlargement, trimming
of the heat shield, and the use of fishwire to install hardware.
Periodic inspection of the trailer hitch should be performed to ensure all
mounting hardware remains tight and structural components are secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
SAFETY INSTRUCTIONS
Safety glasses should be worn at all times while installing this product.
Warranty Information
Our products are backed by industry-leading warranties. For a copy
of the product warranties or to provide feedback, please contact our
support line using the phone number at the bottom of this document.
ENT60231-INS-RA 05/13/2020
• •
ENT60231
ECN7022 PAGE 1
• •
