Enthuze ENT5088 Owner's Manual & Safety Instructions

800 lbs capacity universal aluminum truck rack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

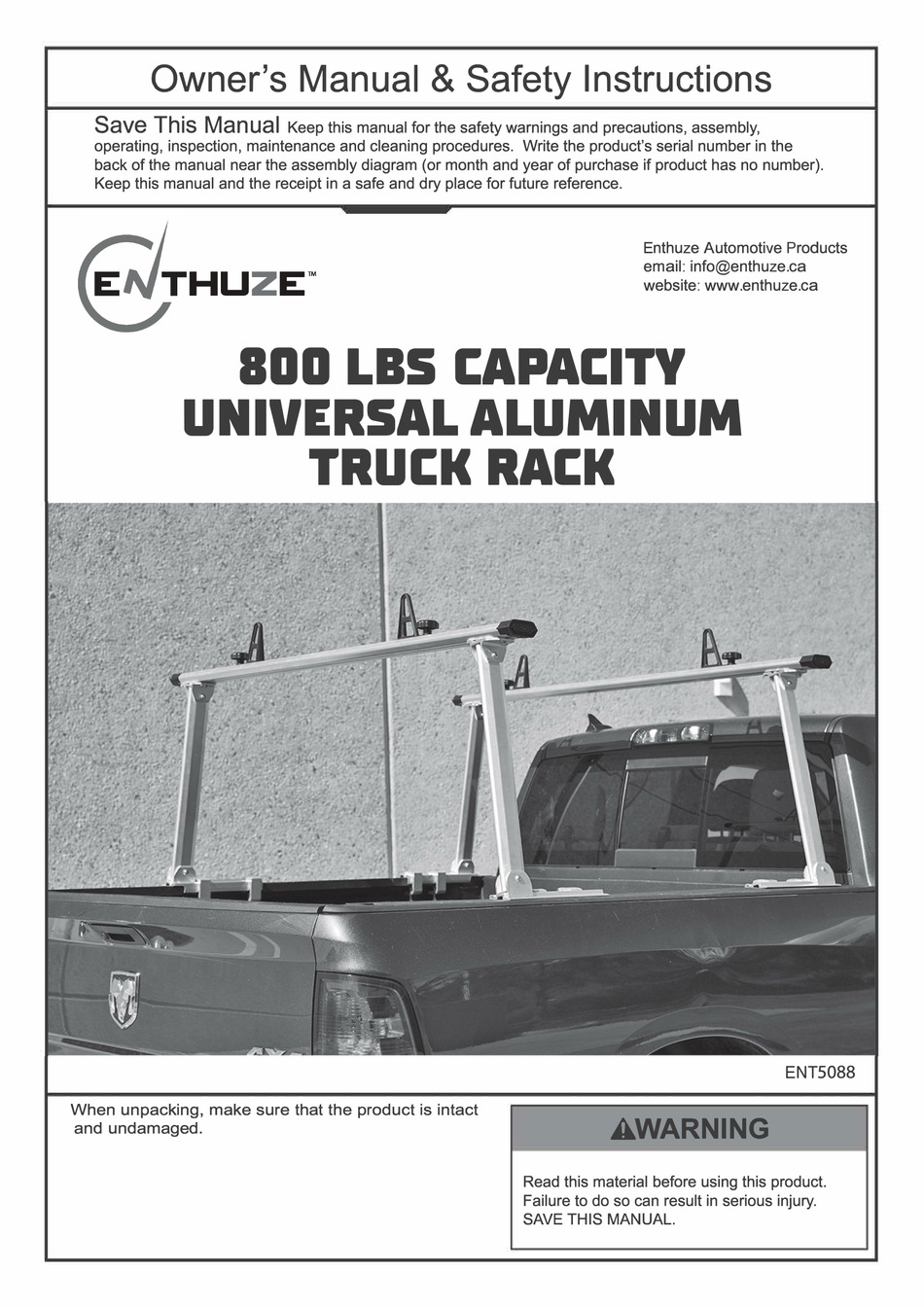

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
HUZE
aaa
UNIVERSAL ALUMINUM
When unpacking, make sure that the product is intact
and undamaged.
Keep this manual for the safety warnings and precautions, assembly,
TM
LBS CAPACITY
TRUCK RACK
Enthuze Automotive Products
email: info@enthuze.ca
website: www.enthuze.ca
AWARNING
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
ENT5088

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENT5088 and is the answer not in the manual?

Questions and answers

Related Manuals for Enthuze ENT5088

Summary of Contents for Enthuze ENT5088

  • Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. Enthuze Automotive Products email: info@enthuze.ca HUZE website: www.enthuze.ca...

  • Page 2: Installation Precautions

    Larger loads need to be transported more slowly and secured more carefully. SAVE THESE INSTRUCTIONS. Specifications I 70-1/8" L X 13-13/16" X 34" H I Load Capacity Dimensions 800 lb 42.5 lb Weight Page 2 Item ENT5088...

  • Page 3: General Assembly

    M10x55 Screw x8 M10 Nut x8 M10 Lock Nut x8 PART NUMBER 17 PART NUMBER 18 PART NUMBER 19 Spring Washer x8 Flat Washer x8 Lock Washer x4 PART NUMBER 20 PART NUMBER 21 PART NUMBER 22 Item ENT5088 Page 3...
  • Page 4 Repeat step 1 for each Upright Assembly. Crossbar Insert a Left and Right Upright Assembly into the Crossbar (8). Repeat step 3 for the remaining Correctly � Left Crossbar and Left and Right Finished Upright Upright Assemblies. Assembly Assembly Page 4 Item ENT5088...

  • Page 5: Truck Installation

    Upright on the other bed rail. second Crossbar Assembly. Install two Clamp Assemblies on each Rail Mount. Position the Clamps at least 4" apart. Vehicle Bed Rail Installed Crossbar Assembly ---- M10x75 � Bolt Item ENT5088 Page 5...
  • Page 6 Do not fully tighten the Lock Knob at this time. using St4.8x16 Screws (13). Double check all screws and bolts for tightness before use. Lock Knob- � � Lock_ Washer Bracket St4.8x16 M10 Square Nut Screw Page 6 Item ENT5088...
  • Page 7 Truck Rack. Check for: the Truck Rack with clean cloth. • loose hardware • misalignment or binding of moving parts • cracked or broken parts • any other condition that may affect its safe operation. Item ENT5088 Page 7...

  • Page 8: Please Read The Following Carefully

    LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Page 8 Item ENT5088...

  • Page 9: Parts List

    M10x55 Button Head Screw Lower Bracket M10 Nut M10 Lock Nut Upper Bracket Cross Bar 10 Spring Washer End Cap 10 Flat Washer Load Bracket 10 Lock Washer Clamp Foot Foam Pad M10 Square Nut T hread Glue Page 9 Item ENT5088...

  • Page 10: Assembly Diagram

    Assem bly Diagram 10 16 7 19 2 : � 9 � 21 20 15 �� ---- - - --.� Item ENT5088 Page 10...
