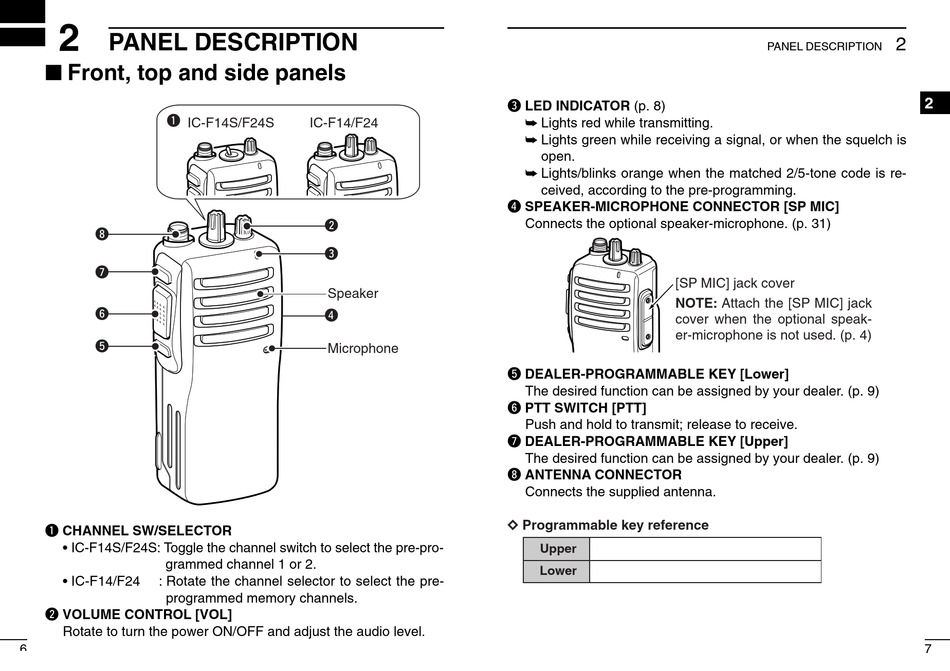

PANEL DESCRIPTION

I Front, top and side panels
q
IC-F14S/F24S
i
u
y
t
q CHANNEL SW/SELECTOR
• IC-F14S/F24S: Toggle the channel switch to select the pre-pro-
grammed channel 1 or 2.
• IC-F14/F24 : Rotate the channel selector to select the pre-
programmed memory channels.
w VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjust the audio level.
6
IC-F14/F24
w
e
Speaker
r
Microphone
e LED INDICATOR (p. 8)
➥ Lights red while transmitting.
➥ Lights green while receiving a signal, or when the squelch is
open.
➥ Lights/blinks orange when the matched 2/5-tone code is re-
ceived, according to the pre-programming.
r SPEAKER-MICROPHONE CONNECTOR [SP MIC]
Connects the optional speaker-microphone. (p. 31)
[SP MIC] jack cover
NOTE: Attach the [SP MIC] jack
cover when the optional speak-
er-microphone is not used. (p. 4)
t DEALER-PROGRAMMABLE KEY [Lower]
The desired function can be assigned by your dealer. (p. 9)
y PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
u DEALER-PROGRAMMABLE KEY [Upper]
The desired function can be assigned by your dealer. (p. 9)
i ANTENNA CONNECTOR
Connects the supplied antenna.
D D Programmable key reference
Upper
Lower
