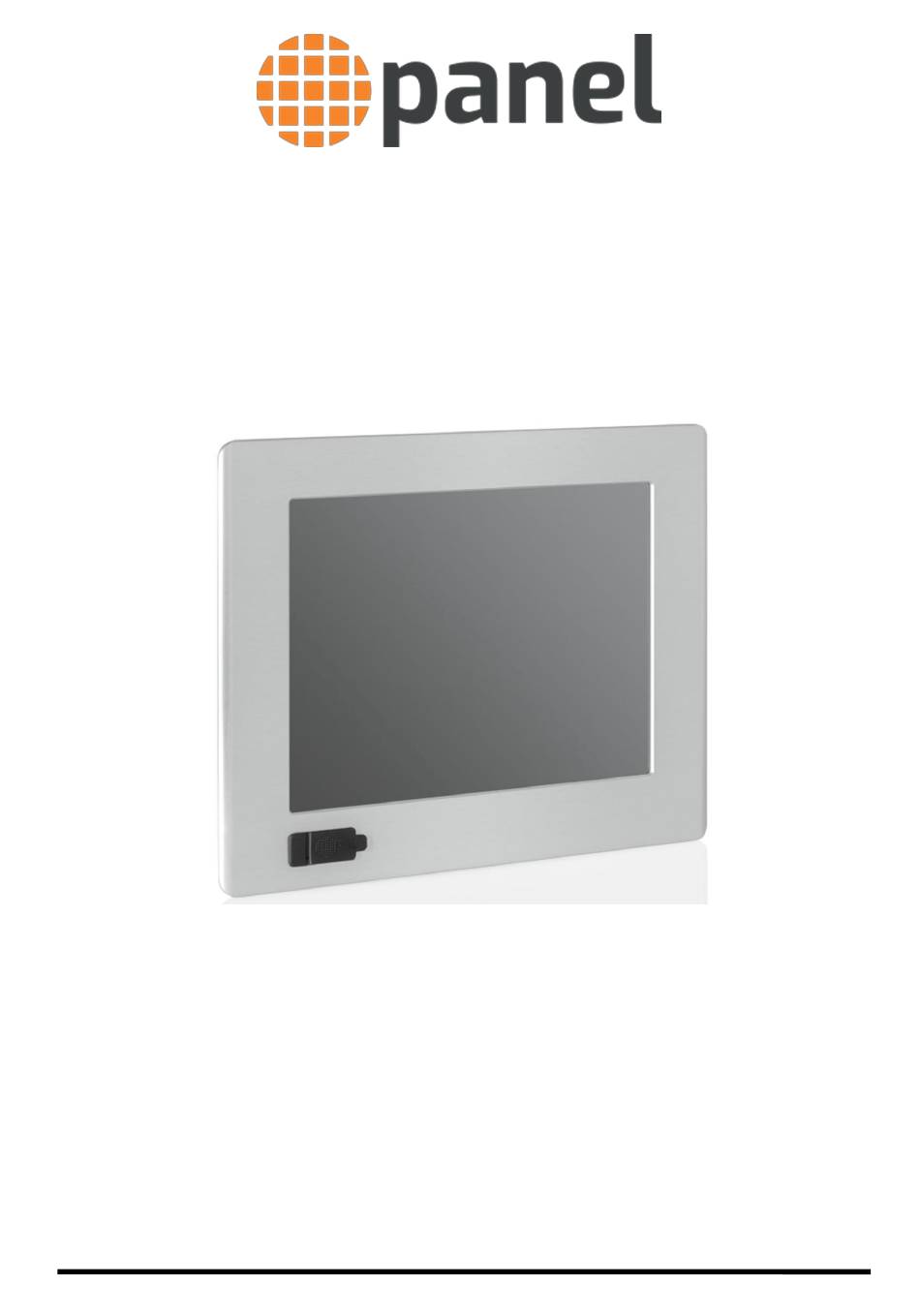

Panel PC PSR3-EK series
VIA Eden® X4
Resistive touchscreen
User's manual
Version 1.1
All information contained in this manual, including all photographs, illustrations and software, is protected under international copyright laws, with all
rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written
consent from Panel S.r.l. The information contained herein is believed to be accurate as of the date of publication; however, Panel S.r.l, makes no
warranty, ex- pressed or implied, with regard to the products or documentation contained within this manual. Panel S.r.l. reserves the right to change
the contents of this manual without notice. Panel shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the
use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of
merchantability or fitness for any particular purpose is also disclaimed. Soft- ware names, hardware names and trademarks are registered by their
respective companies.
www.panel.it
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSR3-EK Series and is the answer not in the manual?

Questions and answers

Summary of Contents for panel PSR3-EK Series

  • Page 1 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from Panel S.r.l. The information contained herein is believed to be accurate as of the date of publication; however, Panel S.r.l, makes no warranty, ex- pressed or implied, with regard to the products or documentation contained within this manual.
  • Page 2: Table Of Contents

    4.1 Removing the rear cover…………………………………………………………………. 17 4.2 RAM installation ..................... 17 4.3 HDD-SSD installation ..................19 4.4 PCI module installation ..................19 Chapter 5: Jumpers and connectors 5.1 Motherboard layout…………………………………………………………………………. 20 5.2 PSR3 I/O connectors ..................21 5.3 Motherboard jumpers setup ................22 www.panel.it...
  • Page 3 Chapter 6: System setup 6.1 Installing operating system ................23 6.2 Bios setup ........................23 6.3 Touchscreen driver and calibration ............23 Chapter 7: Maintenance 7.1 Cleaning........................24 7.2 Lithium battery ......................24 7.3 Spare parts ....................... 24 www.panel.it...
  • Page 4: Safety Rules

    1.1 Safety rules All the Panel PC PSR3 series have been designed and built taking into account all the issues associated with an industrial environment such as that where it is necessary to ensure the operation of the system in the presence of vibration, moisture, dust and critical heat conditions.
  • Page 5: Package Content

    The following items are included in the PSR3 unit’s package. Before using the PSR3, please check all the items match the manual list. PSR312/319 AC power supply PSR312/319 DC power supply Qty 1 Panel PC Qty 1 Panel PC Qty 1 Quick guide Qty 1 Quick guide Qty 1 Power cable (IT) 1.8m...
  • Page 6: Warranty And Rma

    2 years, beginning on the date of invoice by Panel. PANEL will engage to repair or eventually replace, at its discretion, the whole device or its components, which show construction defects or malfunction if these are pointed out in writing during the warranty period.
  • Page 7: Chapter 2: Technical Data

    Chapter 2: Technical data 2.1 Introduction Panel PC fanless extremely compact. The PSR3-EK is provided with VIA Eden® The aluminium anodized IP66 front panel is supplied with 5 wire resistive touch screen. 2.2 Products specifications Models PSR312 PSR315 PSR317 PSR319...
  • Page 8: Touchscreen Specifications

    High temperature / Humidity: 70°C / 90% RH, 500 hrs, normal environment for 4 hrs High temperature: 70°C / 500 hrs allow panel stays in normal environment for 4 hrs Low temperature: -40°C / 500 hrs allow panel stays in normal environment for 4 hrs Thermal Cycle: -40°C ~ 70℃...
  • Page 9: Mechanical Dimensions

    2.5 Mechanical dimensions PSR3 display units with retaining clips All dimensions are specified in mm Display size Model 12.1” single touch resistive PSR312 15.0” single touch resistive PSR315 17.0” single touch resistive PSR317 63.5 19.0” single touch resistive PSR319 www.panel.it...
  • Page 10: Mechanical Cut-Out

    The cut-out tolerance values are +1 mm / -1 mm Display size Model Zmin Zmax Number of retaining clips 12.1” single touch resistive PSR312 15.0” single touch resistive PSR315 17.0” single touch resistive PSR317 19.0” single touch resistive PSR319 www.panel.it...
  • Page 11: Chemicals And Solvents Resistance

    2.7 Chemical and solvent resistance Aluminum panel overlay The panel overlay withstands 24 hours exposure to the following reagents at 50 °C without visible staining 1.1.1. Trichloroethane Ethylacetate Perchloroethylene Aliphatic hydrocarbons Fluorochlorohydrocarbons Toluene Benzene Glycerine Triacetin Cyclohexanol Glycol Trichloroethylene Diethyl ether...
  • Page 12 Artificial Perspiration 100.0 (JIS K6772) Optional graphic customization The graphic painted customization is not resistant to the following chemicals: Concentrated mineral acids Concentrated caustic solution High pressure steam at over 100 °C Benzyl alcohol Methylene chloride www.panel.it...
  • Page 13: Chapter 3: Installation And Wiring

    30° When installing the PSR3 in a slanted panel, and the panel face inclines more than 30°, the surrounding air temperature must not exceed 40°C. You may need to use forced air cooling (fan, A/C) to ensure the surrounding air temperature is 40°C or below.
  • Page 14: Fasten Psr3

    3.3 Fasten PSR3 Insert the PSR3 into the panel cut. When inserted, fix the Panel PC as shown: (1) Insert each of the fasteners, as shown. (2) Be sure to pull the fastener back until it is flush with the rear of the attachment hole.
  • Page 15: Connecting Dc Power

    The DC power cable must be secured in the terminal block (power connector) as shown in the image. Wires with a cross section of 0.75 mm to 2.5 mm 3.5 Connecting AC power Optional external 110-230 VAC power supply www.panel.it...
  • Page 16: Functional Ground

    To avoid excess noise, make the power cord as short as possible. This section describes the precautions for grounding the PSR3 unit: Exclusive grounding (BEST) Exclusive grounding (OK) Common grounding (NOT OK) Important! The motherboard ground and others devices is connected with PSR3 ground. www.panel.it...
  • Page 17: Chapter 4: Hardware Upgrade

    Chapter 4: Hardware upgrade 4.1 Removing the rear cover Warning! Disconnect the power supply to the Panel PC (disconnect the power cable). Isolate the system from all potential sources of electrical power!. Discharge any electrostatic charge on the ground connection...
  • Page 18 Align the notch on the DIMM memory module with the counterpart on the DIMM slot. Step.3) Insert the DIMM memory module into the slot and push down at both ends until the locking clips lock the DIMM memory module into place. www.panel.it...
  • Page 19: Hdd-Ssd Installation

    3) Pull off the card holding plate and the bracket. 4) Insert the PCI card and the card holding plate, then lock them with the three screws removed before. 5) Replace the PCI rear cover and the motherboard rear cover. Rear covers Bracket Card holding plate Bracket removing www.panel.it...
  • Page 20: Chapter 5: Jumpers And Connectors

    Chapter 5: jumpers and connectors 5.1 Motherboard VB7009 layout www.panel.it...
  • Page 21: Psr3 I/O Connectors

    L – RS232 (COM 1) D – Gigabit LAN 1 M – VGA E – Gigabit LAN 2 N – PS/2 keyboard port F – Line-in O – Supply Connector G – Line-out P – Expansion Slot H – Mic-in www.panel.it...
  • Page 22: Motherboard Jumpers Setup

    Except when clearing the RTC RAM, never remove the cap from the Clear CMOS jumper default position. Removing the cap will cause system boot failure. Avoid clearing the CMOS while the system is on; it will damage the board. Default PSR1 factory setting: 1-2 www.panel.it...
  • Page 23: Chapter 6: System Setup

    The system is delivered with the optimized defaults preconfigured state and is operational. Changes in the BIOS settings may only be implemented by appropriately trained staff. 6.3 Touchscreen driver and calibration PSR3 touch screen devices are already calibrated by factory. No calibration is needed. www.panel.it...
  • Page 24: Chapter 7: Maintenance

    Best Management Practices (BMP). When you discard the Lithium battery in California, USA and the rest of the world, please follow the related regulations in advance. 7.3 Spare parts It is recommended to install only original Panel spare parts. If the customer mount not original spare parts, we can’t grant the correct work of the device. www.panel.it...
