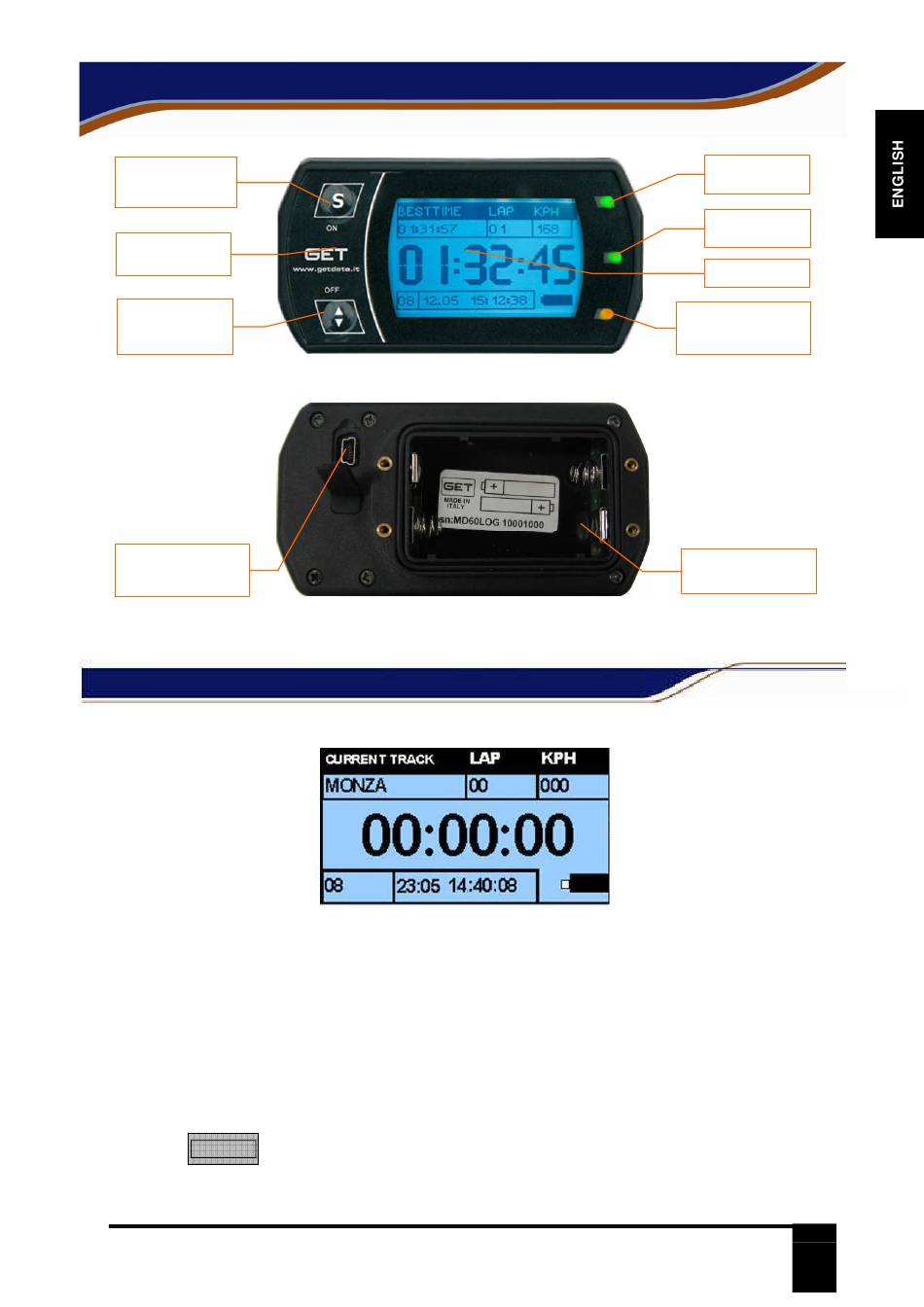

7 LAYOUT OF THE COMMANDS AND SIGNALS ON THE MD60LOG

SELECTION
BUTTON S
INTEGRATED
GPS ANTENNA
NAVIGATION
BUTTON
ARROW
USB
CONNECTOR
7.1

MD60LOG TIMES VISUALISATION SCREEN (CHRONO PAGE )

The fields on the CHRONO page of the MD60LOG provide the driver with the following data:
Field 1: Lap time
Field 2: Number of satellites seen by the system
Field 3: Current date and time / notification for the recording of the session under way
Field 4: Battery level indicator
Field 5: Speed expressed in km/h or mp/h
Field 6: Number of laps driven;
Field 7: User settable field: enables visualisation of information relative to the track (CURTRACK), best lap
time (BESTIME), last lap time (LASTIME)
NO SAT
This message
possible to perform chronometric acquisitions or measurements.
7
1
2
appears in field 1 when the GPS system is not available: in this condition it is not
MD60LOG User Manual rev. 05
Copyright ©2010 GET by Athena Evolution srl. All rights reserved
5
6
4
3
BEST LAP
LED
BEST LAP
LED
DISPLAY
LOW BATTERY
ALARM LED
BATTERY
HOLDER
7
