Related Manuals for KYOTA Yutaka M898
Summary of Contents for KYOTA Yutaka M898

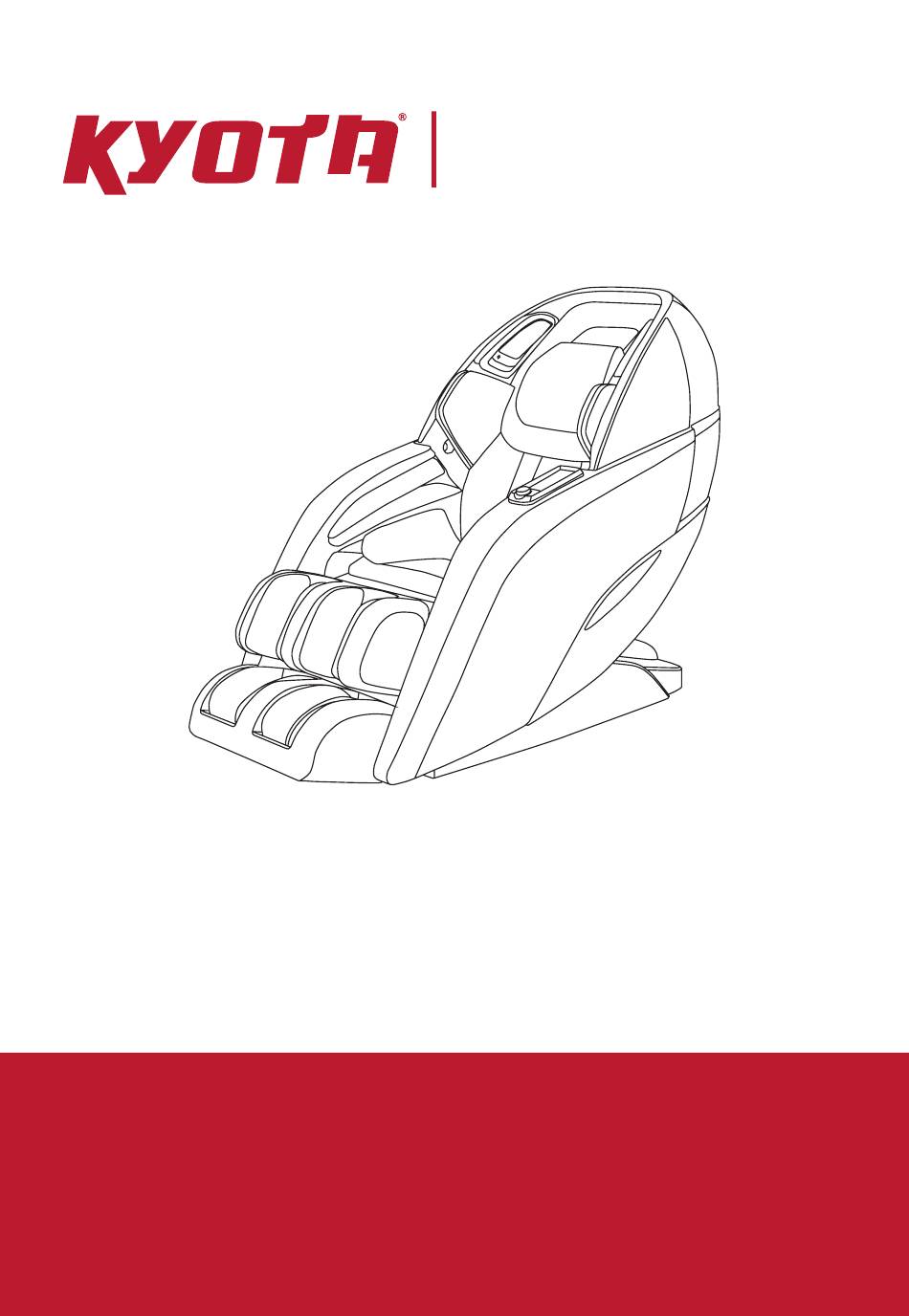

- Page 1 The World’s Most Advanced Massage Chairs ® User Manual Yutaka M898 4D Massage Chair...
- Page 2 Your Chair External Structure Speaker Back cover Pillow Back cushion Seat cushion Arm panel Footrest Remote Control Multi-Functional Screen Power Pause Home Auto Directional Button Zero Gravity Back Adjustment Foot Roller Footrest Seat Back Position Leg Length...
- Page 3 Thank you, and congratulations on purchasing your very own Kyota Massage Chair product - you’ve made a great buying decision. Welcome to the Kyota family. Inside this manual, you will find everything you need to setup and safely enjoy your chair.
- Page 4 Chair Features - 49” L-Track - Zero Gravity - Zero Wall Space-saving Technology - Calf Rollers & Oscillation - 4D Massage Technology - USB Charging Station - Bluetooth Technology - iOS & Android App Functionality - Decompression Stretch - Reflexology - Automatic Footrest Extension - Lumbar Heat - Body Scanning...
-
Page 5: Table Of Contents
Table of Contents Preparation Settings Language Installation Site Voice Control Clearance Space for the Chair Remote Control Screen Brightness Floor Protection Button Lights Move Methods Remote Control Beep Connect to Power Bluetooth Chair Setup Sleep Mode Main Power Switch Create a Massage Adjust Pillow Manual Programs Body Scanning... -
Page 6: Preparation
Preparation Installation Site Clearance Space for the Chair - 4” clearance for the recline of the backrest; 24” clearance for the extension of footrest and sliding forward of the chair. - Keep it 3 feet away from the TV, radio or other audio & video appliance to avoid signal interference. -
Page 7: Move Methods
Move Methods Apply pressure to the back of the massage chair from behind to pivot on the Castors. Have a second person up front to guide the Footrest until in the correct position. Maintain clearances as mentioned above. Gently lower into place. Do not pull on the side arms. - Do not move the chair when there is a user inside. -
Page 8: Chair Setup
Chair Setup Getting Comfortable Main Power Switch To power up the chair, flick the main power switch located on the side of the base of the chair to ON. Main power switch - Children should be supervised to ensure that they do not play with the chair or touch the power box. - Always unplug the massage chair from the electrical outlet immediately after use. -
Page 9: Body Scanning
Body Scanning Select any auto program and press the OK button. The chair will automatically begin scanning your body, mapping your back, shoulders, and neck. During this process it is important to remain seated back into the chair without lifting your head. The scan can be viewed on the remote control Body Scanning Shoulder Adjust... -
Page 10: Getting Started
Getting Started Auto Programs Programs Icon When massage chair is operating, press the AUTO Sports Refresh button on the remote control to enter Auto Program Menu. Choose from Sports Refresh, Extension Extension, Rest & Sleep, Working Relief, Neck & Shoulder, Waist & Spine, Deep Rest &... - Page 11 What for? Description Soothe muscles after sports activities and Relaxes muscles and speeds up recovery time after intense exercise. exercise by promoting circulation. This program is the best choice to relax tired Inspired by Thai massage. The strong kneading and stretching muscles and increase physical vigor.
-
Page 12: Airbag Massage
Getting Started Airbag Massage Select AIRBAG from Home display, press up or down button to navigate among: PART and FORCE. Airbag Region Navigate to PART, press right button, then use the up or down button to select your desired airbag region: Full Body, Upper Body, or Lower Body. Press OK button to select the airbag region. -
Page 13: Back Heat
Back Heat Select HEAT from Home display, press right button, then press up or down button to navigate to desired heat level: 1 = low, 2, 3 = high, or Off. Press OK button to select the heat level. Foot Rollers Select MANUAL from Home display, press right button, then use the up or down button to navigate to ROLLER. -
Page 14: Intelligent Voice Control
Getting Started Intelligent Voice Control Your chair comes with built in intelligent voice control. This feature allows you to control your chair and massage experience completely hands- free by using one of the many voice commands. To activate the intelligent voice control function, simply say ‘Switch to Voice Mode’, or touch the button on the left speaker. -
Page 15: Quick Access Controller
Apple iOS: (iPhone or iPad devices) - Open the App Store. At the top right corner, search for ‘Kyota Massage Chair M898 Yutaka’ to find the Apple app. Click “Get” at the top right corner to download and install the software. -
Page 16: Personalize Experience
Personalize Experience Bluetooth Audio Your massage chair includes Bluetooth compatibility so you can play and enjoy your favorite music. To turn on your chair’s Bluetooth, select SETTING from Home display, then press up or down button to navigate to BLUETOOTH. Press right button, then press up or down button to select your desired Bluetooth setting: On or Off. -
Page 17: Remote Control Beep
Remote Control Beep Navigate to BEEP, press right button, then press up or down button to select your desired remote control beep setting: 1 = lowest, 2, 3, 4, 5 = highest. Press OK button to select the volume setting. Demo Voice Navigate to DEMO VOICE, press right button, then press up or down button to select your desired setting: On, or Off. -
Page 18: Chromotherapy Lights
Personalize Experience Chromotherapy Lights Your massage chair has chromotherapy lights located on the outside of the chair body and on the speakers near your head. Select LIGHTS from Home display, then press up or down button to navigate among: THEMES, COLORS, and BRIGHTNESS. Press OK button to enter the lights setting you desire to control. -
Page 19: Timer
Timer Select TIME from Home display, press right button, then press up or down button to select your desired timer: 10 minutes, 20 minutes, or 30 minutes. Press OK to select your desired massage timer length. 20 minutes is the default setting. -
Page 20: Settings
Settings Settings Select SETTING from Home display, then use the up or down button to navigate among: LANGUAGE, VOICE, BRIGHTNESS, BUTTONS, BEEP, BLUETOOTH, and SLEEP MODE. Press OK button to enter the setting you desire to control. Language Navigate to LANGUAGE, press right button, then use the up or down button to select your desired language: English, Chinese, Japanese, or Korean. -
Page 21: Button Lights
Button Lights Navigate to BUTTONS, press right button, then press up or down button to select your desired remote key back-light setting: On, or Off. Press OK button to select the setting. Remote Control Sound Navigate to BEEP, press right button, then use the up or down button to select your desired remote control beep setting: On or Off. -
Page 22: Create A Massage
Create a Massage Manual Programs Press MANUAL from Home display, press up or down button to navigate among: MODE, PART, WIDTH, SPEED, and ROLLER. Massage Mode Navigate to MODE, press right button, then use the up or down button to select your desired mode: Kneading, Tapping, Knocking, Shiatsu, Sync, or 4D Shiatsu. -
Page 23: Massage Speed
Massage Speed Navigate to SPEED, press right button, then use the up or down button to select your desired speed: 1 = slow, 6 = fast. Press OK button to select the speed. (Massage Speed can’t be adjusted when in Shiatsu). Foot Rollers Navigate to ROLLER, press right button, then use the up or down button to select your desired foot roller speed: 1 = slow, 2, 3 = fast, or OFF... -
Page 24: Staying Safe
Staying Safe Important Safety Instructions Precautions listed below will help to ensure proper use of this appliance. Read all instructions before using this appliance. For household use only. SAVE THESE INSTRUCTIONS. Not Suitable For Below Persons We recommend those with any of the following conditions consult your physician before using. - Those who are using electronic medical instruments embedded in the body, such as a cardiac pacemaker. - Page 25 Cautions Regarding the Adapters and Cord - Always unplug this appliance from the electrical outlet immediately after using and before cleaning. - An appliance should never be left unattended when plugged in. Unplug from outlet when not in use. - Unplug from outlet during thunder or lightning storms, and before putting on or taking off parts. - Check that the power voltage stated on the rating label corresponds to your local electricity supply.
-
Page 26: Fixing Issues
Exit the Demo by selecting another program, Adjustment Buttons or by hitting the power button. are disabled Specifications Model Yutaka M898 4D Dimension of Main Body (in) 67 x 35 x 49 (L x W X H) Necessary Clearance to Wall (in) 4” Net Weight (lbs) 303.6... -
Page 27: Frequently Asked Questions
Q: My chair is not performing as expected. What should I do? A: Your Kyota massage chair is an amazing combination of programming and robotics. On occasion the chair just may need to be rebooted. To do this power down the chair and unplug from the wall for 5 minutes then plug back in and power back up to see if it self-healed. - Page 28 The World’s Most Advanced Massage Chairs ® 72 Stard Road, Seabrook, NH 03874 Toll Free #: (800) 242-0761 www.kyotamassagechairs.com Version 1.10...
