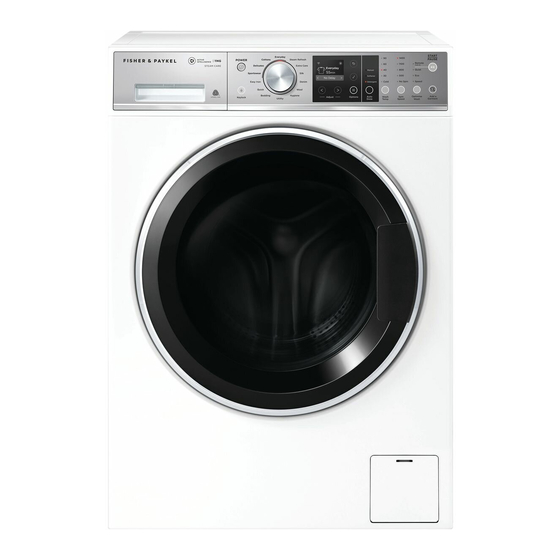

- Page 1 FRONT LOADER WASHING MACHINE WH1160F2, WH1260F2, WH1060S1 & WH1160S1 INSTALLATION GUIDE NZ AU BI EU...
-
Page 2: Safety And Warnings
SAFETY AND WARNINGS SUPPLIED PARTS Keep all packing materials until the unit has been inspected. WARNING! Inspect the product to ensure there is no shipping damage. If any damage is detected contact the dealer or retailer you bought the product from to report the damage. Electric Shock Hazard Fisher &... -
Page 3: Product Dimensions
PRODUCT DIMENSIONS FRONT PROFILE PRODUCT DIMENSIONS A Overall height* B Overall width C Overall depth** D Depth with door open 1080 * Exact height is dependent on foot adjustment ** Including dial and door (when closed) Actual product dimensions may vary by ± 2 mm. PLAN... - Page 4 CAVITY & CLEARANCE DIMENSIONS * Front panel of the product FRONT PROFILE ISOMETRIC CAVITY DIMENSIONS CLEARANCE DIMENSIONS A Minimum cavity height A Minimum washer door clearance to adjacent wall B Minimum gap clearance to adjacent product or cabinetry* B Minimum cavity width * Applies to sides, top and rear C Minimum cavity depth Flush with front panel of the product*...
- Page 5 ELECTRICAL & PLUMBING CONNECTION CONNECTION LOCATIONS / LENGTHS DRAINAGE HEIGHTS Water Hoses 1500mm 1000mm max* 600mm Power Cord Drain Hose 2000mm 1600mm (1400 with elbow) * Recommended standpipe height is 800mm SPECIFICATIONS ELECTRICAL Supply 220 – 240 V, 50 Hz Service 10 amp circuit PLUMBING max 1 MPa (150psi) Pressure...
-
Page 6: Water Supply
UNPACKING WATER SUPPLY Water supply requirements If you have an uncontrolled water heating source (eg a wet back or solar heating system) you should fit a tempering valve. This will ensure the hot water temperature remains within safe limits. Contact your registered plumber to select and install the tempering valve. Your cold water should not exceed 35°C and your hot water should not exceed 65°C. -
Page 7: Removing Transit Bolts
DRAINING REMOVING TRANSIT BOLTS In multi-storey apartments or any upper floor, the washer should be installed on a floor The clothes washer is fitted with transit safety bolts at the rear to avoid possible damage equipped with a drain. Draining must comply with local by-laws. to the internal components of the washer during transportation. -
Page 8: Levelling The Washer
REMOVING TRANSIT BOLTS LEVELLING THE WASHER It is IMPORTANT to level the washer. Having a level washer set up in its cavity will ensure best performance for spinning, minimising noise, vibrations and wear and tear on the washer. Remove the 10 transit brace screws from the left and right sides, and near the centre of the top brace. -
Page 9: Complete Installation
COMPLETE INSTALLATION Turn on the water and check all hose connections for leaks. Make sure there are no kinks in the hose(s). Check the hose connections for leaks again after 24 hours. Uncoil power cord, remove and discard the plastic pin cover, and plug into wall socket. Connect the appliance to an earthed outlet protected by a fuse of suitable capacity. -
Page 10: Installer Checklist
INSTALLER CHECKLIST SPARE PARTS TO BE COMPLETED BY THE INSTALLER SPARE PARTS* PART NO. Hose(s) inlet long (2 m) 422680P … Have the packaging and transit bolts and rods been removed? Drain hose extension (not suitable for attaching to a spigot) 425627P …... - Page 12 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
