SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS! GENERAL INSTALLATION INFORMATION Installation in manufactured (mobile) home Save these instructions for the local inspectors use. ● To avoid hazard, follow these instructions carefully before installing or using this appliance. ● Installation must conform with the Manufactured Home Construction and Safety Please make this information available to the person installing the appliance –...

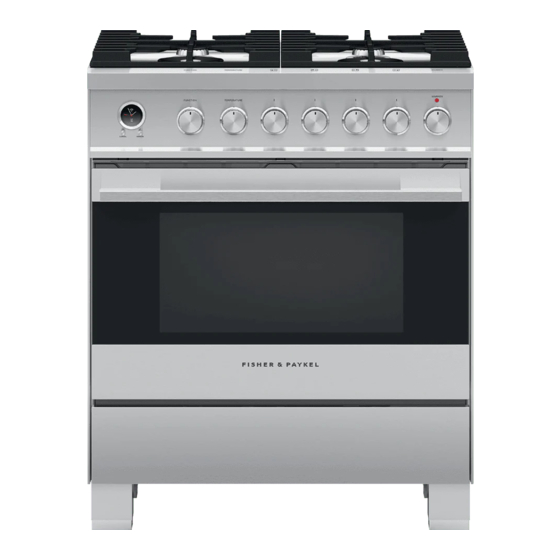

MODEL IDENTIFICATION NOTE: Model features may vary 30” GAS GAS MODELS 30” DUAL FUEL MODELS OR30SCG4 OR30SCG6 OR30SDG4 OR30SDG6 PRIOR TO INSTALLATION Unpacking and handling Inspect the range to verify that there is no shipping damage. If any damage is detected, call the shipper and initiate a damage claim. Fisher & Paykel is not responsible for shipping damage. ●...
PRODUCT DIMENSIONS NOTE: Model features may vary Optional kickstrip is available (purchased separately) FRONT SIDE OR30S GAS GAS OR30S DUAL FUEL PRODUCT DIMENSIONS inches (mm) inches (mm) Overall height of range min. 35 3/4” (908) min. 35 3/4” (908) max. 37 5/8” (956) max.
GAS CONNECTION Gas requirements Manual shut-off valve All gas connections must be made according to national and local codes. A manual shut-off valve must be installed Shut-off valve ● ‘open’ position The gas supply (service) line must be the same size or greater than the inlet in an accessible location in the gas line line of the appliance.
Page 18
GAS CONNECTION Gas connection specification To range Range manifold 1/2” G cylindrical Male pipe fitting (ISO 228-1) male Gasket 1/2” G cylindrical (ISO 228-1) female To mains connection Connector 1/2” NPT (conical) male 1/2” NPT female Arrow Pressure regulator IMPORTANT! 1/2”...
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER GENERAL OPERATION Placement of unit. All internal packing materials removed. Check below the cooktop grates and inside the oven. Specified clearance maintained to cabinet surfaces. If used on LP gas, verify that the pressure regulator, cooktop burner injectors and ...
CONSIGNES DE SÉCURITÉ ET MISES EN GARDE CONSIGNES DE SÉCURITÉ IMPORTANTES! INFORMATIONS D’INSTALLATION GÉNÉRALES Installation dans une maison préfabriquée (mobile) Conservez ces instructions pour permettre aux inspecteurs locaux de les consulter. ● Pour réduire les risques de danger, suivez attentivement ces instructions avant d’installer ou ●...
IDENTIFICATION DU MODÈLE REMARQUE : Les caractéristiques du modèle peuvent varier MODÈLES AU GAZ 30” MODÈLES MIXTES 30” OR30SCG4 OR30SCG6 OR30SDG4 OR30SDG6 AVANT L’INSTALLATION Déballage et manutention Inspectez la cuisinière pour vous assurer qu’aucun dommage n’a été causé lors de l’expédition. En cas de dommage, communiquez avec l’expéditeur pour effectuer une demande d’indemnisation. ●...
DIMENSIONS DU PRODUIT REMARQUE : Les caractéristiques du modèle peuvent varier Kickstrip en option est disponible (acheté séparément) AVANT CÔTÉ GAZ OR30 MIXTE OR30 DIMENSIONS DU PRODUIT pouces (mm) pouces (mm) Hauteur hors tout de la cuisinière min. 35 3/4” (908) min.
RACCORDEMENT DU GAZ Exigences relatives à l’alimentation en gaz Robinet d’arrêt manuel Robinet d’arrêt en Tous les raccordements de gaz doivent être effectués en conformité avec les codes Vous devez installer un robinet d’arrêt ● position ‘ouverte’ locaux et nationaux. manuel dans un endroit accessible de La conduite d’alimentation en gaz (service) doit être d’une taille identique ou la conduite de gaz, à...
Page 45
RACCORDEMENT DU GAZ Spécifications de raccordement du gaz Vers la cuisinière Collecteur de la cuisinière Mâle cylindrique G 1/2” Raccord mâle du tuyau du collecteur (ISO 228-1) Joint d’étanchéité Femelle cylindrique G 1/2” (ISO 228-1) Vers le raccordement d’alimentation Connecteur Mâle (conique) NPT 1/2”...
LISTE DE VÉRIFICATION FINALE À ÊTRE REMPLIE PAR L’INSTALLATEUR GÉNÉRALITÉS FONCTIONNEMENT Emplacement de l’appareil. Tous les matériaux d’emballage internes ont été retirés. Vérifiez en dessous des grilles de la surface de cuisson et à l’intérieur du four. Mesures de dégagement spécifiées respectées par rapport aux surfaces d’armoires.
