The information contained herein is based on sources that we believe to be reliable, but is not guaranteed by us,
may be incomplete or may change without notice
Oven Capacity
Cooking Surface
Fuel Type
Configuration
Control Location
Control Type
Cooking Technology
Cooking System
Convection Power
Oven Cleaning Type
Control Type
Electronic Timer and Programmer
Oven Cooking Modes
Hidden Bake Element
Broil
Oven Rack
Broiler Pan and Grid
Warming Drawer
Oven door features
Right Front (6'')
Right Rear (8'')
Left front (7'')
Left Rear (7'')
Exterior Appearence
Color Appearance
Design Style
Installation Type
Flush appearance
Exterior Dimensions
Overall Height (in.)
Overall Width (in.)
Depth (in.)
Oven Cavity Dimensions
Overall Height (in.)
Width (in.)
Depth (in.)
Oven Rack Dimension
Overall Width (in.)
Depth (in.)
Electrical Requirements
Volts; Hertz; Amps
Accessories (Included)
Backsplash (2'')
Rotisserie pan
Accessories (optionnal)
Tall Backguard (Height 3 in. - Depth 3
5/16'')
Island Trim (Flush)
Island Trim (Height 7/8'' - Depth 3 5/16'')
Full 2 years
OR30SDPWIX1

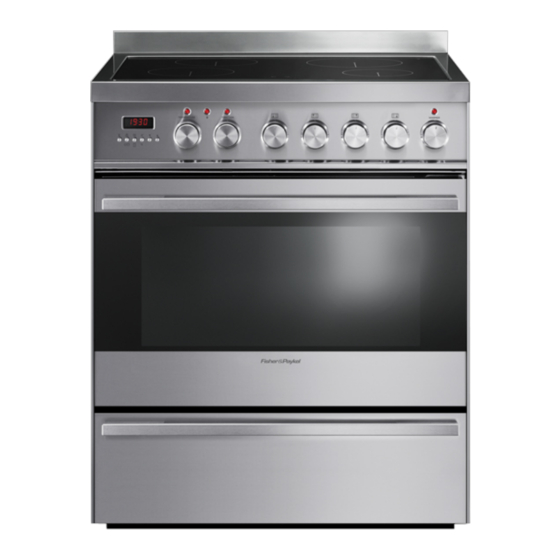

30'' Induction Range - MSRP: $6,499.00
Capacity
3.6 cu.ft.
Cooktop Features
Patterned Black Glass Ceramic
Induction
4 Cooking Zones
Upfront
Dials
Oven Features
Electric | Convection
True European
2500W
Pyrolisis (Self-Clean)
Dials
Yes
7
Yes
12-Pass Broil Dual Element, 2850W
3 - (2) sliding shelves
Yes
500W
Cool Touch Triple Glazed Door
Zones Ratings
1800W
3700W
2500W
2500W
Stainless Steel
European
Installation
Built-in or Free Standing
Yes
35 5/8'' - 36 3/8''
29 7/8''
24 1/4''
13''
25 1/8''
16''
24''
14 1/2''
120V/240V; 60Hz; 45.6 Amp circuit
Included
Included
#88668
FIT30SS
#88667
Warranty
Entire Applainces: In-Home; Parts &
Labour
Advertisement
Related Manuals for Fisher & Paykel OR30SDPWIX1
Summary of Contents for Fisher & Paykel OR30SDPWIX1
- Page 1 OR30SDPWIX1 30'' Induction Range - MSRP: $6,499.00 Capacity Oven Capacity 3.6 cu.ft. Cooktop Features Cooking Surface Patterned Black Glass Ceramic Fuel Type Induction Configuration 4 Cooking Zones Control Location Upfront Control Type Dials Oven Features Cooking Technology Electric | Convection...
-
Page 2: Installation Instructions
OR30SDPWIX1 Installation instructions The information contained herein is based on sources that we believe to be reliable, but is not guaranteed by us, may be incomplete or may change without notice... - Page 3 OR30SDPWIX1 Installation instructions The information contained herein is based on sources that we believe to be reliable, but is not guaranteed by us, may be incomplete or may change without notice...
- Page 4 Island Trim FIT30SS FISHER & PAYKEL’s OR30 ranges are equipped with a 2 inches backguard installed during production. (A) For aesthetic reasons and/or when installed in a central island, it is now possible to replace this backguard by a decora- tive trim in stainless steel.
- Page 5 Complementary Trim #88667 (3 1/8’’ depth X 7/8’’ height)
- Page 6 Complementary Trim #88668 (3 1/8’’ depth X 3’’ height)
