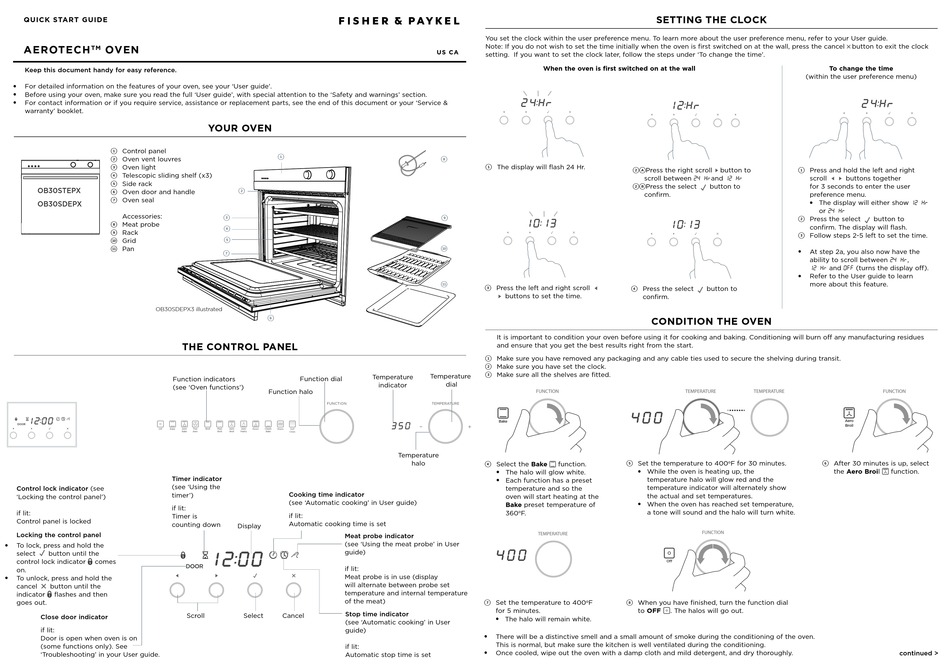

QUICK START GUIDE
AEROTECH TM OVEN
Keep this document handy for easy reference.
For detailed information on the features of your oven, see your 'User guide'.
●
Before using your oven, make sure you read the full 'User guide', with special attention to the 'Safety and warnings' section.
●
For contact information or if you require service, assistance or replacement parts, see the end of this document or your 'Service &
●
warranty' booklet.
1 Control panel
2 Oven vent louvres
3 Oven light
4 Telescopic sliding shelf (x3)
5 Side rack
OB30STEPX
6 Oven door and handle
7 Oven seal
OB30SDEPX
Accessories:
8 Meat probe
9 Rack
!0 Grid
!1 Pan
OB30SDEPX3 illustrated

THE CONTROL PANEL

Function indicators
(see 'Oven functions')
Aero
Bake
Timer indicator
(see 'Using the
Control lock indicator (see
timer')
'Locking the control panel')
if lit:
if lit:
Timer is
Control panel is locked
counting down
Locking the control panel
To lock, press and hold the
●
select button until the
control lock indicator comes
on.
To unlock, press and hold the
●
cancel button until the
indicator flashes and then
goes out.
Close door indicator
if lit:
Door is open when oven is on
(some functions only). See
'Troubleshooting' in your User guide.

YOUR OVEN

1
2
3
4
5
7
6
Function dial
Function halo
True Broil Maxi Aero Aero Classic
Aero Broil Broil Pastry Bake
Cooking time indicator
(see 'Automatic cooking' in User guide)
if lit:
Automatic cooking time is set
Display
Meat probe indicator
(see 'Using the meat probe' in User
guide)
if lit:
Meat probe is in use (display
will alternate between probe set
temperature and internal temperature
of the meat)
Stop time indicator
Scroll Select Cancel
(see 'Automatic cooking' in User
guide)
if lit:
Automatic stop time is set
You set the clock within the user preference menu. To learn more about the user preference menu, refer to your User guide.
Note: If you do not wish to set the time initially when the oven is first switched on at the wall, press the cancel
US CA
setting. If you want to set the clock later, follow the steps under 'To change the time'.
When the oven is first switched on at the wall
8
1 The display will flash 24 Hr.
9
!0
!1
3 Press the left and right scroll
buttons to set the time.
It is important to condition your oven before using it for cooking and baking. Conditioning will burn off any manufacturing residues
and ensure that you get the best results right from the start.
1 Make sure you have removed any packaging and any cable ties used to secure the shelving during transit.
2 Make sure you have set the clock.
3 Make sure all the shelves are fitted.
Temperature
Temperature
dial
indicator
F U N C T O I
Temperature
halo 4 Select the Bake
The halo will glow white.
●
Each function has a preset
●
temperature and so the
oven will start heating at the
Bake preset temperature of
360 o F.
E T M P R E
7 Set the temperature to 400
for 5 minutes.
The halo will remain white.
●
There will be a distinctive smell and a small amount of smoke during the conditioning of the oven.
●
This is normal, but make sure the kitchen is well ventilated during the conditioning.
Once cooled, wipe out the oven with a damp cloth and mild detergent, and dry thoroughly.
●

SETTING THE CLOCK

2aPress the right scroll button to
scroll between 24 Hrand 12 Hr
2bPress the select
button to
confirm.
4 Press the select button to
confirm.

CONDITION THE OVEN

N E T M P R E T A U E R
5 Set the temperature to 400 o F for 30 minutes.
function.
While the oven is heating up, the
●
temperature halo will glow red and the
temperature indicator will alternately show
the actual and set temperatures.
When the oven has reached set temperature,
●
a tone will sound and the halo will turn white.
F U N C T O I N
T A U E R
o F 8 When you have finished, turn the function dial
to OFF . The halos will go out.
button to exit the clock
To change the time
(within the user preference menu)
1 Press and hold the left and right
scroll buttons together
for 3 seconds to enter the user
preference menu.
The display will either show 12 Hr
●
or 24 Hr
2 Press the select button to
confirm. The display will flash.
3 Follow steps 2-5 left to set the time.
At step 2a, you also now have the
●
ability to scroll between 24 Hr,
12 Hr and OFF (turns the display off).
Refer to the User guide to learn
●
more about this feature.
E T M P R E T A U E R F U N C T O I N
Aero
Broil
6 After 30 minutes is up, select
the Aero Broil function.
continued >
