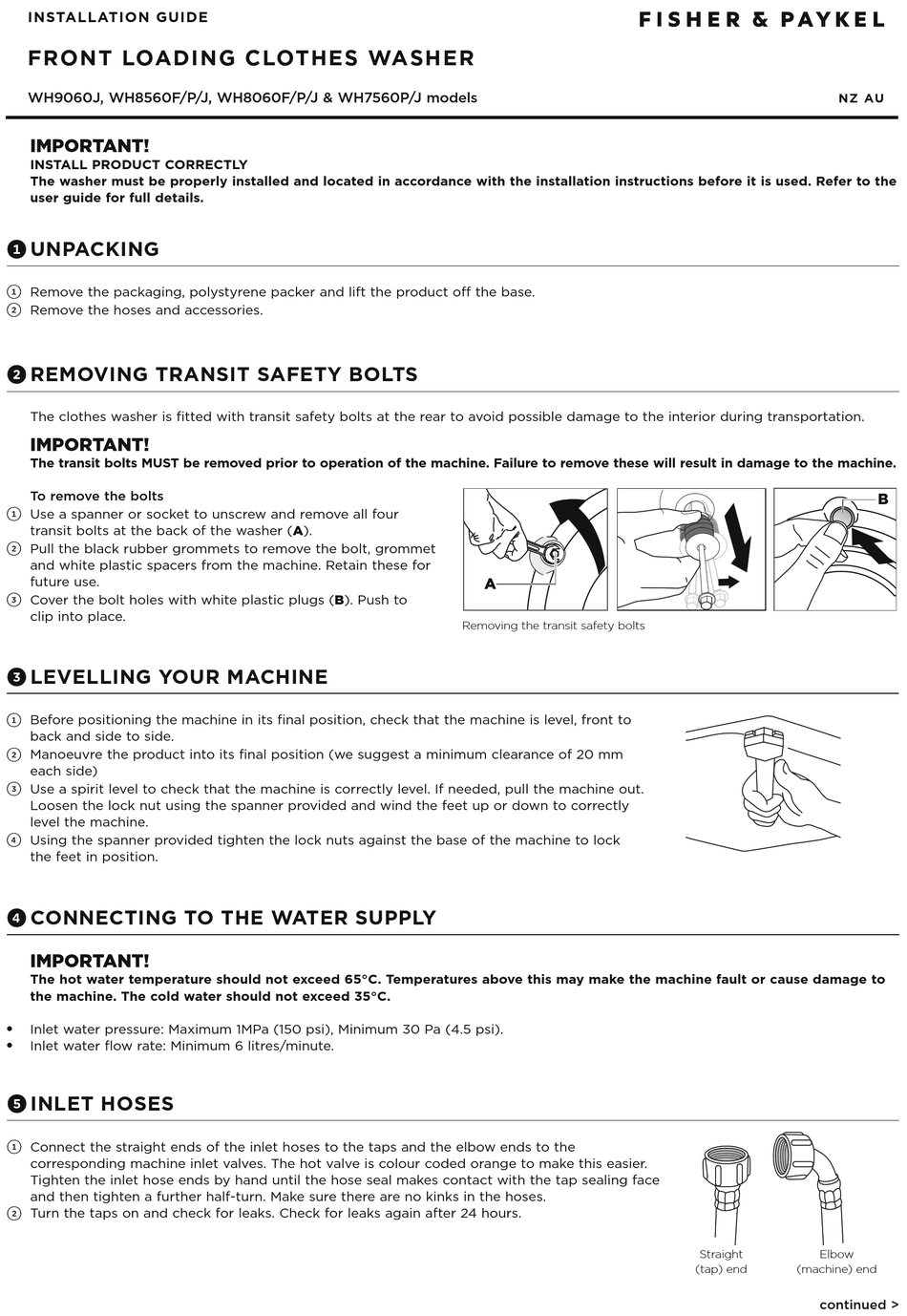

INSTALLATION GUIDE

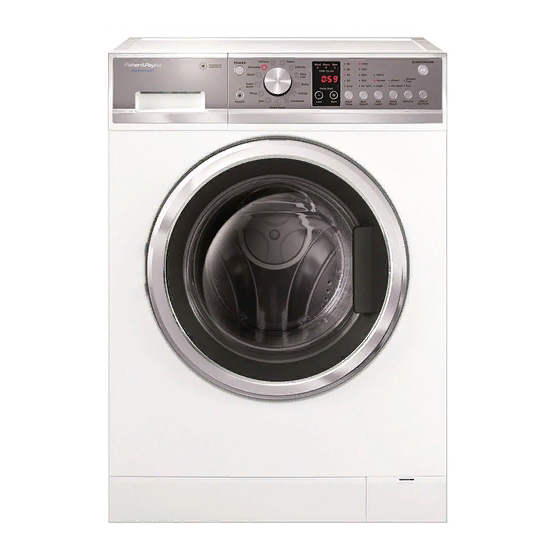

FRONT LOADING CLOTHES WASHER
WH9060J, WH8560F/P/J, WH8060F/P/J & WH7560P/J models
IMPORTANT!
INSTALL PRODUCT CORRECTLY
The washer must be properly installed and located in accordance with the installation instructions before it is used. Refer to the
user guide for full details.
1 UNPACKING
Remove the packaging, polystyrene packer and lift the product off the base.
1
Remove the hoses and accessories.
2
2 REMOVING TRANSIT SAFETY BOLTS
The clothes washer is fitted with transit safety bolts at the rear to avoid possible damage to the interior during transportation.
IMPORTANT!
The transit bolts MUST be removed prior to operation of the machine. Failure to remove these will result in damage to the machine.
To remove the bolts
Use a spanner or socket to unscrew and remove all four
1
transit bolts at the back of the washer (A).
Pull the black rubber grommets to remove the bolt, grommet
2
and white plastic spacers from the machine. Retain these for
future use.
Cover the bolt holes with white plastic plugs (B). Push to
3
clip into place.
3 LEVELLING YOUR MACHINE
Before positioning the machine in its final position, check that the machine is level, front to
1
back and side to side.
Manoeuvre the product into its final position (we suggest a minimum clearance of 20 mm
2
each side)
Use a spirit level to check that the machine is correctly level. If needed, pull the machine out.
3
Loosen the lock nut using the spanner provided and wind the feet up or down to correctly
level the machine.
Using the spanner provided tighten the lock nuts against the base of the machine to lock
4
the feet in position.
4 CONNECTING TO THE WATER SUPPLY
IMPORTANT!
The hot water temperature should not exceed 65°C. Temperatures above this may make the machine fault or cause damage to
the machine. The cold water should not exceed 35°C.
Inlet water pressure: Maximum 1MPa (150 psi), Minimum 30 Pa (4.5 psi).
● ●
Inlet water flow rate: Minimum 6 litres/minute.
● ●
5 INLET HOSES
Connect the straight ends of the inlet hoses to the taps and the elbow ends to the
1
corresponding machine inlet valves. The hot valve is colour coded orange to make this easier.
Tighten the inlet hose ends by hand until the hose seal makes contact with the tap sealing face
and then tighten a further half-turn. Make sure there are no kinks in the hoses.
Turn the taps on and check for leaks. Check for leaks again after 24 hours.
2
A
Removing the transit safety bolts
NZ AU
Straight Elbow
(tap) end (machine) end
continued >
B
