- Page 1 Better Robot, Better Life. BooCax Terminal Disinfection Robot BKS-ST-180A Product Manual V 1.0.0 BOOCAX ROBOTICS 400 -161- 8661...
- Page 2 It is strictly prohibited to flush the robot and charging pile directly with tap water, which may lead to the accumulation of water vapor or water inside the equipment and cause serious irreparable failure. BooCax Robotics www.boocax.com 1 / 24...
- Page 3 All the screws of the robot have undergone anti-loosening treatment. However, for the sake of safety, please contact "BooCax After-sales" if any screw is found loose。 04/Disclaimer BooCax company owns multiple patents related to this robot product.
-
Page 4: Table Of Contents
9.1 Deploy route setting ..........................17 10 Schedule setting ............................21 Other settings ............................21 Start to work ....................... 22 12.1 Add liquid ............................... 22 12.2 Start spraying ............................22 Attachment: Upgrade ......................... 23 BooCax Robotics www.boocax.com 3 / 24... -
Page 5: Introduction To Terminal Disinfection Robot

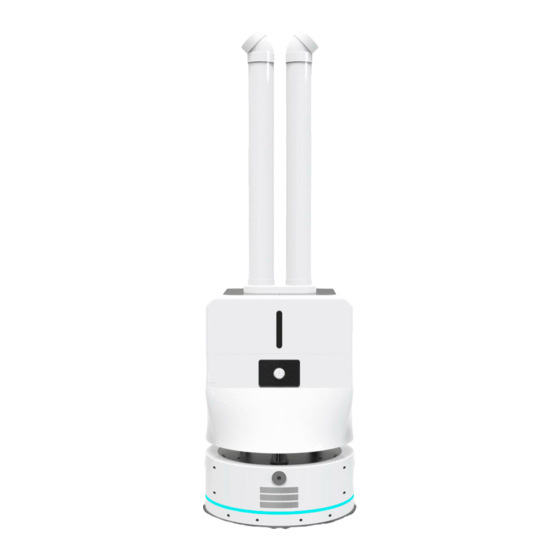

BKS Terminal Disinfection Robot Product Manual v1.0 1. Introduction to Terminal Disinfection Robot BooCax BKS-ST-180A terminal disinfection robot is designed to purify the air by rapidly atomizing the Hydrogen peroxide or similar terminal disinfectant and automatically spraying the indoor area. -
Page 6: Product Specification
BKS Terminal Disinfection Robot Product Manual v1.0 1.2. Product Specification Name BooCax Terminal Disinfection Robot Item Model No. BKS-ST-180A Auto terminal disinfection by hydrogen peroxide and similar Application disinfectant solution Basic data External Size Diameter 600mm, Height 1660mm（with 500mm spray tube）... -
Page 7: Appearance Size
BKS Terminal Disinfection Robot Product Manual v1.0 1.3. Appearance Size Front 前 后 Back BooCax Robotics www.boocax.com 6 / 24... -
Page 8: Function Modules
BKS Terminal Disinfection Robot Product Manual v1.0 1.4. Function Modules nozzle Mist tube Tank Tank lid Tank window Spray volume knob Laser Radar Vision sensor Charging interdace (Camera) BooCax Robotics www.boocax.com 7 / 24... -
Page 9: Assembly
(Terminal 1: signal wire, Terminal 2: power wire), and visually find the four positioning holes on the iron → plate BooCax Robotics www.boocax.com 8 / 24... - Page 10 Lift the water tank stably, stack it on top of the sprayer base. Relying on the positioning steps that sink around, it can be freely in place from top to bottom under the action of gravity → BooCax Robotics www.boocax.com 9 / 24...
- Page 11 → Note：To reach the maximum spray rate, you may select the single-tube mode with one-way nozzle. BooCax Robotics www.boocax.com 10 / 24...
-
Page 12: Install The Charging Pile
② Connect the power cord, adapter, and charging pile as shown above, and finally connect the end of the power cord to the 110V / 220V AC socket to formally complete the boot preparation. BooCax Robotics www.boocax.com 11 / 24... -
Page 13: Qr Code Deployment
Precautions for QR code Two same QR codes are not accepted in same environment, b) When mapping, the robot stops at the QR code board for 1-2 seconds to ensure that the QR code is saved, BooCax Robotics www.boocax.com 12 / 24... -
Page 14: Clean Up Barriers
Make sure that there is no vertical step over 10mm within the spraying area，and no objects (books, boards, stones, etc.) over 10mm in height on the working path； Make sure that there is no large slope on site The maximum gradeability of the robot is 8° . BooCax Robotics www.boocax.com 13 / 24... -
Page 15: Download Mobile App
7. Turn on, connect the robot Turn on the switch to initiate the working mode of the robot； Turn on the phone wifi, search the wifi network beginning with "BKS-ST-180A", and enter the assigned password “robot123” to connect the robot BooCax Robotics www.boocax.com... - Page 16 BKS Terminal Disinfection Robot Product Manual v1.0 Click into the App, you will find the robot beginning with "BKS-ST-180A" (as shown in the following figure), click login; Open the App, which shows the interface as below then forward to deploy map，...
-
Page 17: Build Map
③ The operator must stand behind the robot to avoid leaving noise on the map； ④ When turning, walk slowly so that the robot can collect as much characteristic point data as possible； ⑤ As laser radar does not recognize accurately in abnormal environment (glass, mirror, pure BooCax Robotics www.boocax.com 16 / 24... -
Page 18: Deploy Route/Area Setting
Next to complete the setting. ➢ Path points and disinfection points: deploy the points by pushing robot /dragging map Mark the required location on the map, and then set the corresponding path BooCax Robotics www.boocax.com 17 / 24... - Page 19 “Change” and “Connection”, these two functions are mainly designed to facilitate route editing. 2)Free editing-adjust path ➢ If the route by rapid deployment is not applicable, click "Free Edit" to adjust the route. The robot supports adding/deleting/moving points, changing running route, changing disinfection points, etc. BooCax Robotics www.boocax.com 18 / 24...
- Page 20 The figure on the right shows the wrong deployment, in which the path will go through the wall directly, causing the robot unable to walk. BooCax Robotics www.boocax.com...
- Page 21 Figure 4 above: 220 and 224 in the red box are the disinfection points selected in the disinfection area "111" ⚠Attention：Any area must have 2 or more disinfection points to work normally BooCax Robotics www.boocax.com 20 / 24...
-
Page 22: Schedule Setting
11. Other settings There are also functions such as voice prompts, volume adjustment, maintenance prompts and other functions such as disinfection log, line patrol mode selection, firmware upgrade, etc： BooCax Robotics www.boocax.com 21 / 24... -
Page 23: Start To Work
12.2 Start spraying When all preparations are ready, return to the homepage of App, click the "start" button, and the robot will start spraying according to the settings. BooCax Robotics www.boocax.com 22 / 24... -
Page 24: Attachment: Upgrade
Upgrade firmware from App to robot Click into App，Setting-Firmware upgrade，click it and wait for about 5 minutes to complete Click "Update Firmware", the App will upload the Click into App, turn to Setting downloaded upgrade package to the robot BooCax Robotics www.boocax.com 23 / 24... - Page 25 Road, Zoucheng the intersection of Fenshan No.1, Qinghe, Haidian Industrial Park, Fuyong Central Road and Beihuan Road, District, Beijing Street, Baoan District, Electromechanical Economic Development Shenzhen Industrial Park, Zone, Sanmenxia City, Ji’ning, Shandong Henan. BooCax Robotics www.boocax.com 24 / 24...
