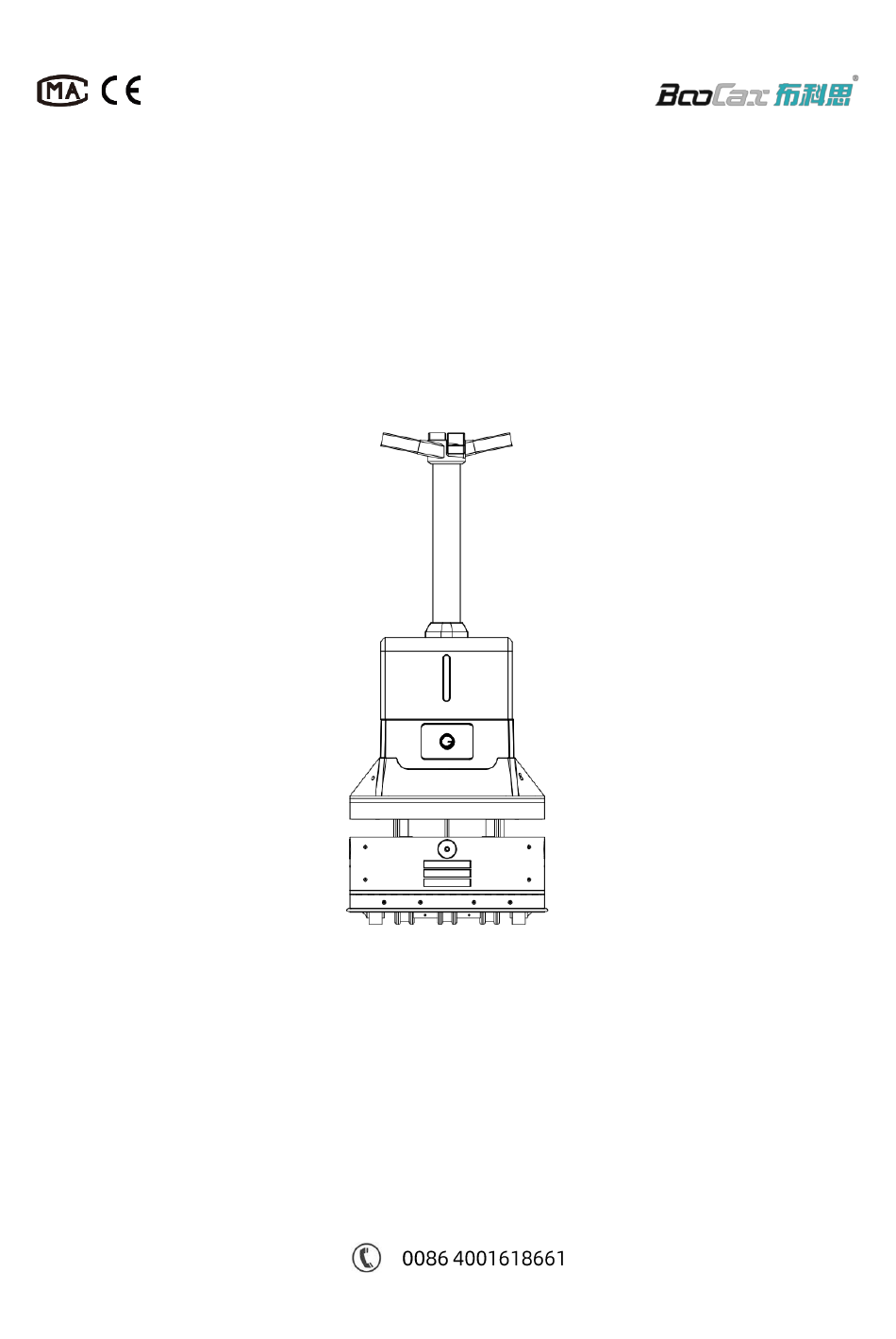

- Page 1 Better Robot,Better Life BKS-ST-180C Product Manual V3.1.1 BOOCAX...
- Page 2 • Do not touch the terminals when the robot is under charge to avoid short circuit or electric shock; • Do not replace any parts. If necessary, please do so under the direction of BooCax. RECAUTIONS ⚠ • The spray robot should be parked in a flat and solid place at normal temperature;...
-
Page 3: Table Of Contents
6.8. Area setting ............................21 6.9. Scheduled setting ........................... 22 6.10. Other settings ............................. 22 Start to work ........................23 7.1. Add liquid ............................... 23 7.2. Start spraying ............................24 Attachment: update instructions ....................25 BooCax 2 / 28 boocax.com... -
Page 4: Introduction To Spray Robot
BKS-ST-180C_Product Manual 1. Introduction to Spray Robot BooCax BKS-ST-180C atomizing spray robot is designed to purify the air by rapidly atomizing the liquid and automatically spraying the area. This robot can automatically navigate to the area for full-coverage spraying, and supports mobile App control to achieve man-machine separation and minimize personnel exposure, so that the use safety is greatly improved. - Page 5 ✓ Spraying in guest room and restaurant: medical Hotel lobby, toilet, floor • Guesthouse institution level. corridor, guest room, Hotel • ✓ Hotel Spraying in other areas: restaurant, etc. public health security level. BooCax 4 / 28 boocax.com...
-
Page 6: Product Specification
BKS-ST-180C_Product Manual 2. Product specification Name Spray Robot Model BKS-ST-180C Application Indoor automatic atomizing spray Appearance size Diameter 530 mm* Height 1,340 mm Body weight 48.4 kg (without liquid) Spray rate Maximum 2600 ml/h (adjustable) Tank volume Spray diameter ≤ 6 m... -
Page 7: Appearance Size
BKS-ST-180C_Product Manual 3. Appearance size Overall size Front Back BooCax 6 / 28 boocax.com... -
Page 8: Function Module
BKS-ST-180C_Product Manual 4. Function module One-way nozzle Four-way nozzle Mist tube Filling hole Tank Liquid level observation hole Spray volume knob Chassis Working status indicator Charging connector Front BooCax 7 / 28 boocax.com... - Page 9 BKS-ST-180C_Product Manual Filling hole Tank Air inlet Chassis Emergency stop button Power switch Vision sensor Back BooCax 8 / 28 boocax.com...
-
Page 10: Assembly
(Terminal 1: signal wire, Terminal 2: power wire), and visually find the four positioning holes on the iron plate → BooCax 9 / 28 boocax.com... - Page 11 → ③ Remove the protective foam from the water control valve on the sprayer base to ensure that the next stack of water tank is not hindered → BooCax 10 / 28 boocax.com...
- Page 12 (for tight connection, it is recommended to wrap it with waterproof tape before putting it in) → BooCax 11 / 28 boocax.com...
-
Page 13: Preparation Before Use
② Connect the power cord, adapter, and charging pile as shown above, and finally connect the end of the power cord to the 110V / 220V AC socket to formally complete the boot preparation. BooCax 12 / 28 boocax.com... -
Page 14: Clean Up Barriers
QR code can be pasted at a distance of 10m from the two ends to assist positioning. BooCax 13 / 28... - Page 15 QR code of a corridor can be identified by the cameras on the left and right; • When incrementally mapping, it is necessary to ensure that the robot's positioning is accurate before identifying and saving the QR code. BooCax 14 / 28 boocax.com...
-
Page 16: Download Mobile App
6.5. Turn on, connect the robot Turn on the switch to initiate the working mode of the robot Power switch Turn on the phone wifi, search the wifi network beginning with "BKS-ST-180C", and enter the assigned password “robot123” to connect the robot BooCax 15 / 28 boocax.com... - Page 17 BKS-ST-180C_Product Manual Open the App, you will find the robot beginning with "BKS-ST-180C-0025" (as shown in the following figure), click login Open the App to show the interface shown in the following figure. Screenshots of App interface and function buttons:...
-
Page 18: Build The Spraying Map
② When mapping, don't be too close to the wall and keep a distance of at least 0.5m; ③ The operator must stand behind the robot to avoid leaving noise on the map; ④ When turning, walk slowly so that the robot can collect as much characteristic point data as BooCax 17 / 28 boocax.com... -
Page 19: Deploy Route Setting
Path points and disinfection points: deploy the points by pushing robot /dragging map Mark the required location on the map, and then set the corresponding path point/disinfection point ( The small blue icon is the corresponding location point) BooCax 18 / 28 boocax.com... - Page 20 “Change”and “Connection”, these two functions are mainly designed to facilitate route editing. Free editing-adjust path ➢ If the route by rapid deployment is not applicable, click "Free Edit" to adjust the route. The robot supports adding/deleting/moving points, changing running route, changing disinfection points, etc. BooCax 19 / 28 boocax.com...
- Page 21 The figure on the right shows the wrong deployment, in which the path will go through the wall directly, causing the robot unable to walk. BooCax 20 / 28...
-
Page 22: Area Setting
Figure 4 above: 220、221、222 and 224 in the red box are the disinfection points selected in the disinfection area "111". ⚠Attention：Any area must have 2 or more disinfection points to work normally BooCax 21 / 28 boocax.com... -
Page 23: Scheduled Setting
6.10. Other settings There are also functions such as voice prompts, volume adjustment, maintenance prompts and other functions such as disinfection log, line patrol mode selection, firmware upgrade, etc. BooCax 22 / 28 boocax.com... -
Page 24: Start To Work
7. Start to work 7.1. Add liquid The working principle of BKS-ST-180C atomizing spray robot is purifying the air by rapidly atomizing the liquid and automatically spraying the area. Support the use of conventional disinfectants such as hypochlorous acid and chlorine dioxide or fast water-soluble disinfection tablets. -
Page 25: Start Spraying
7.2. Start spraying When all preparations are ready, return to the homepage of App, click the "start" button, and the robot will start spraying according to the settings. Thereafter, the robot will disinfect as scheduled every day. BooCax 24 / 28 boocax.com... -
Page 26: Attachment: Update Instructions
Connect to the robot and upload the firmware to the robot body for upgrade Turn on the mobile phone wifi, find the robot, enter the password“robot123” to connect ： Step 3: App upgrade firmware to robot BooCax 25 / 28 boocax.com... - Page 27 ⚠Special attention: ① When upgrading, please do not power off or turn off the power; ② The whole process of firmware upgrade is about 5 minutes. During this period, any operation on the robot is prohibited. BooCax 26 / 28 boocax.com...
- Page 28 BKS-ST-180C_Product Manual www.boocax.com Business cooperation / after-sales: 0086-400-161-8661 Beijing Headquarter: Shenzhen Branch: Shandong Branch: Room 606, Jianjin Center, 3F, Building 10, COFCO No.269 Hengfeng Road, Yongtaiyuan A No.1, Fu’an Robotics Industrial Zoucheng Central Qinghe, Haidian District, Park, Fuyong Street, Baoan...
