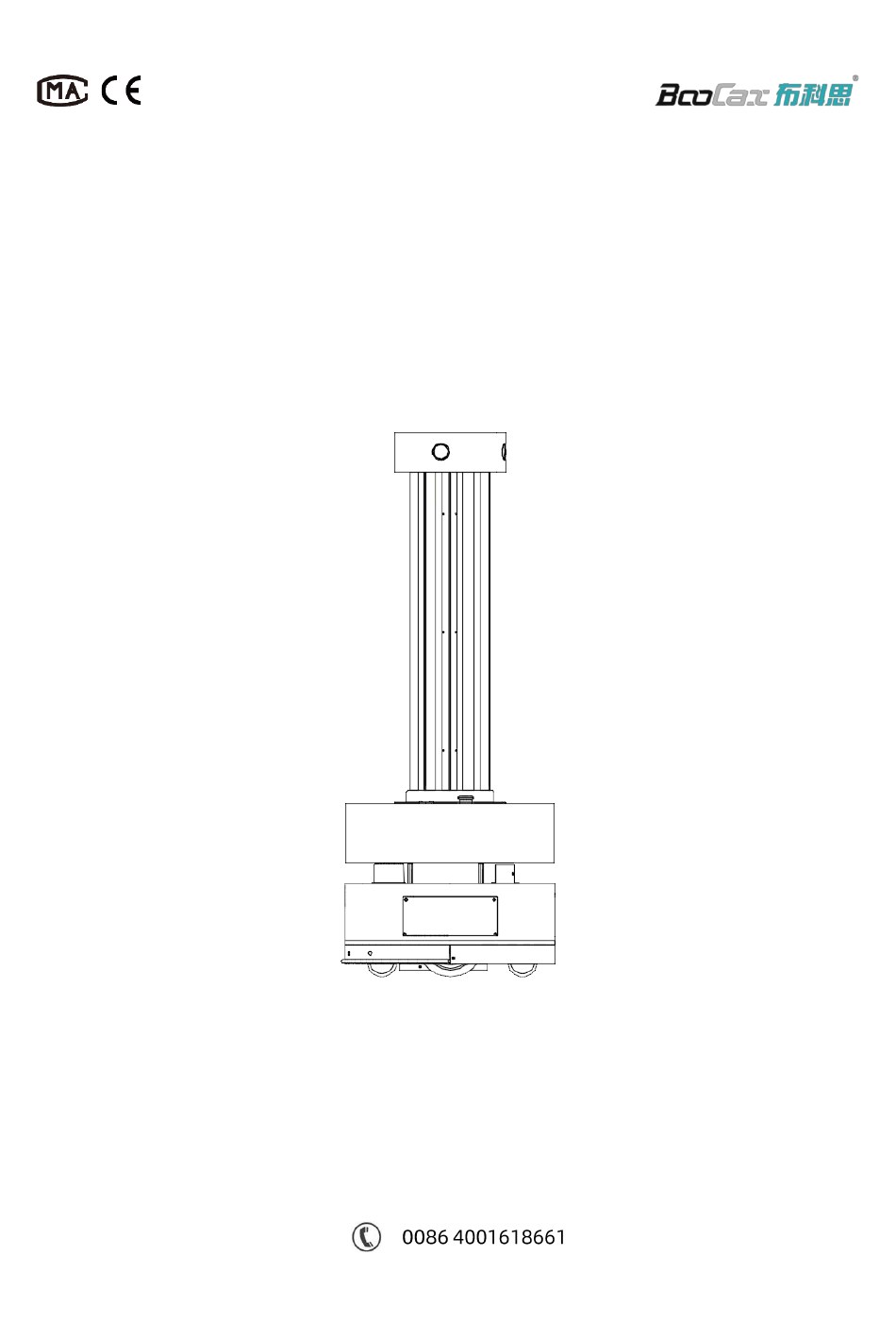

- Page 1 Better Robot,Better Life BKS-UVRobot-200 Product Manual V 1.2.1 BOOCAX...
- Page 2 ④ Do not wrap the tube with paper or cloth, to avoid fire due to high temperature; ⑤ Do not replace any parts. If necessary, please do so under the direction of BooCax. 2) Precautions ① The robot should be parked or run in a flat and solid place at normal temperature;...
- Page 3 04/ After-sales If you have any questions about maintenance, safety and other issues during use of BooCax robot, please contact us by phone or email provided on the back of this manual. We are very willing to provide you with product-related services.
-
Page 4: Table Of Contents
Turn on and connect the robot ......................13 5.6. Build map ..............................15 5.7. Disinfection route setting ........................16 5.8. Disinfection area setting ........................19 5.9. Scheduled disinfection setting ......................20 5.10. Other settings ............................. 20 Start to work ........................21 BooCax boocax.com 3 / 23... -
Page 5: Product Description
BKS-UVRobot_Product Manual 1. Product Description BooCax UVRobot, based on mobile robot platform, is equipped with professional UV disinfection module, which can replace operators to enter confined spaces such as dangerous areas, public areas and inaccessible areas to quickly kill pathogenic microorganisms such as bacteria, spore fungi, germs, etc., and thoroughly disinfect indoor air and articles without dead... -
Page 6: Product Specification
Differential driving Movement Over-obstacle capacity ≤10 mm Gradeability ≤8° Passage width ≥750 mm Battery capacity 25.2V / 38Ah Service time 1.8h Battery Mode of charging Autocharge Charging time 3.5h Charging pile 110V~240V wide voltage input BooCax boocax.com 5 / 23... - Page 7 BKS-UVRobot_Product Manual Full-load current Short-circuit current 250A Emergency Stop Switch Bumper strip Safety design Noise ≤60dB Working temperature 0°~50° BooCax boocax.com 6 / 23...
-
Page 8: Appearance Size
BKS-UVRobot_Product Manual 3. Appearance size BooCax boocax.com 7 / 23... -
Page 9: Function Modules
BKS-UVRobot_Product Manual 4. Function modules Human body sensor UV safety switch UV lamp tube Laser radar Auxiliary positioning sensor Connector Working status lamp Crash sensor Power wheel Front BooCax boocax.com 8 / 23... - Page 10 BKS-UVRobot_Product Manual Power switch Emergency stop switch Nameplate Steering wheel Back BooCax boocax.com 9 / 23...
-
Page 11: Preparation Before Use
② Connect the power cord, adapter, and charging pile as shown above, and finally connect the end of the power cord to the 110V / 220V AC socket to formally complete the boot preparation. BooCax boocax.com 10 / 23... -
Page 12: Clean Up Barriers
Make sure that there is no steep slope on site: Maximum gradeability: 8° 5.3. QR code deployment In order to enhance the positioning accuracy of the robot, QR codes are provided so that the long-term running is more stable. BooCax boocax.com 11 / 23... - Page 13 QR code of a corridor is identified by the cameras on two sides; When incrementally mapping, it is necessary to ensure that the robot's positioning is accurate before identifying and saving the QR code. BooCax boocax.com 12 / 23...
-
Page 14: Download App
When starting up for the first time, turn the power key switch to "on" position to connect the power; Power switch Turn on the phone wifi, search the wifi network beginning with "BKS-UV-200", and enter the assigned initial password “robot123” to connect the robot; BooCax boocax.com 13 / 23... - Page 15 Scheduled disinfection, Set disinfection area Switch line-tracking mode • • view route, manual Switch map Voice setting • control Firmware upgrade • Help and feedback • Run log • Demonstration and testing • Version 1.1.1_b36 BooCax boocax.com 14 / 23...
-
Page 16: Build Map
③ The operator must stand behind the robot to avoid leaving noise on the map; ④ When turning, walk slowly so that the robot can collect as much characteristic point data as possible; ⑤ As laser radar does not recognize accurately in abnormal environment (glass, mirror, pure BooCax boocax.com 15 / 23... -
Page 17: Disinfection Route Setting
Path points and disinfection points: deploy the points by pushing robot /dragging map In the required position, mark the corresponding point( The small blue icon is the corresponding location point) Path points need to be set for the route that the robot passes through, such as turns BooCax boocax.com 16 / 23... - Page 18 Free editing-adjust path ➢ If the route by rapid deployment is not applicable, click "Free Edit" to adjust the route. The robot supports adding/deleting/moving points, changing running route, changing disinfection points, etc. BooCax boocax.com 17 / 23...
- Page 19 The figure on the right shows the wrong deployment, in which the path will go through the wall directly, causing the robot unable to walk. BooCax boocax.com 18 / 23...
-
Page 20: Disinfection Area Setting
After creating a new disinfection area, click the purple nodes on the map to select the disinfection points in the area, as shown in Figure 4 above: 220、221、222 and 224 in the red box are the disinfection points selected in the disinfection area "1-1". BooCax boocax.com 19 / 23... -
Page 21: Scheduled Disinfection Setting
5.10. Other settings UV irradiation time, loop mode, volume adjustment and firmware upgrade are all contained in the "Settings" menu, which can be set by the user: BooCax boocax.com 20 / 23... -
Page 22: Start To Work
Go back to the homepage of App, click the "Start Disinfection" button, select "Full-area Disinfection / Selected-area Disinfection", and the robot will start working along the set path. Thereafter, the robot will disinfect as scheduled every day. BooCax boocax.com 21 / 23... - Page 23 BKS-UVRobot_Product Manual www.boocax.com Business cooperation / after-sales: 400-161-8661 Beijing Headquarter: Shenzhen Branch: Shandong Branch: Room 606, Jianjin Center, 3F, Building 10, COFCO No.269 Hengfeng Road, Yongtaiyuan A No.1, Fu’an Robotics Industrial Zoucheng Central Qinghe, Haidian District, Park, Fuyong Street, Baoan...
