- Page 1 Better Robot, Better Life Penguin PG01 Plasma Air Disinfection Robot Product Manual V 1.0.1 BooCaX Technology Co; Ltd 400 -161- 8661...
- Page 2 Do not disassemble the robot for repair or debugging； Do not touch the circuit terminals when the robot is charging； Do not replace any parts. If necessary, please do so under the direction of BooCax . 2 ) Safety instructions For Use The robot should be parked in a flat and solid place at normal temperature ;...
- Page 3 04/ After-sale Support If you have any questions about maintenance and safety during the use of BooCax atomization disinfection robot, you can contact us by phone / email as shown in this manual. We are very willing to provide you with product related services.
-
Page 4: Table Of Contents
Setting the air volume........................18 9 Set the scheduled startup time ......................19 10. Start disinfection ........................... 20 11. More function settings ........................21 Appendix 1: Robot disinfection effect test report .............23 Appendix 2：Robot qualification...................24 www.boocax.com BooCax Technology Co.,Ltd. 3 / 26... -
Page 5: Overview

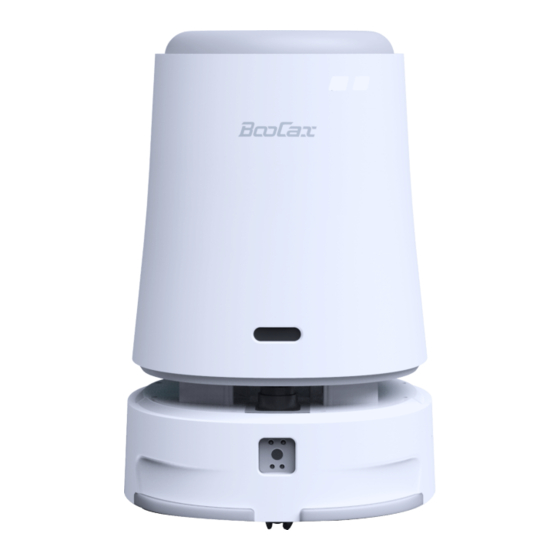

PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 1. Overview BooCax Penguin PG01 plasma air sterilizing robot produces plasma rapidly by the air exchange method can effectively purify the ambient air in the space; Because it does not produce harmful substances, it can coexist with humans and machines. The robot has the autonomous movement function can sterilize the environmental space at regular intervals and kill harmful microorganisms and viruses in the air, thereby to achieve the purpose of self-cleaning space. -
Page 6: Product Advantages
PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 1.5. Product Advantages The BooCax PG01 plasma air disinfection robot can realize autonomous navigation, and can walk autonomously to reach the designated area for full disinfection; it is controlled by App, which can be controlled remotely, and the coexistence of man and machine; at the same time, it is simple to deploy and easy to maintain and manage. -
Page 7: Product Specification
PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 4. Product Specification Types Name Penguin PG01 Plasma Air Disinfection Robot Model BKS-LTP-PG01 Using plasma technology to disinfect germs in the air, Application Basic remove odor, and remove formaldehyde parameter Appearance 407mm*421mm*611mm size Body weight... - Page 8 Rated output: voltage 29.4V, current 5.0A Safety visual obstacle avoidance protection Bumper strip 1 group Safety and Working 0 °～ 50 ° Environment temperature Ozone ≤ 0.046PPM （ Human-machine coexistence ） concentratio www.boocax.com BooCax Technology Co.,Ltd. 7 / 26...
-
Page 9: Appearance Size
PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 5. Appearance Size Axonometric view www.boocax.com BooCax Technology Co.,Ltd. 8 / 26... -
Page 10: Function Module
PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 6. Function Module www.boocax.com BooCax Technology Co.,Ltd. 9 / 26... -
Page 11: Preparation Before Use
No duplicate QR code boards can appear in the same environment; • When mapping, the robot stops at the QR code board for 1-2 seconds to ensure that the QR code is saved（ Voice prompt will be given for successful identification） www.boocax.com BooCax Technology Co.,Ltd. 10 / 26... -
Page 12: Clean Up Barriers
The surmounting height of the robot is Make sure that there are no big slopes on the site, if so, please try to avoid ： The maximum gradeability of the robot is 5° www.boocax.com BooCax Technology Co.,Ltd. 11 / 26... -
Page 13: Assembly And Use
3) Then put it down vertically and smoothly, and then press gently to ensure that the cabin is installed in place. Note: The charging pile must be placed against the wall to ensure stability www.boocax.com BooCax Technology Co.,Ltd. 12 / 26... -
Page 14: Download & Install App
PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 8.3 Download & install app www.boocax.com BooCax Technology Co.,Ltd. 13 / 26... -
Page 15: Start-Up, Registration
(3 )Turn on the Wifi of the Android device and connect the Wifi name of Penguin; (4) As shown in the figure, click on Bubble Fish Wifi name Penguin-PG01-XXXX, and prompt “ tap to share password’ robot 123, the connection is successful. www.boocax.com BooCax Technology Co.,Ltd. 14 / 26... -
Page 16: Connect Robot
PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 8.5. Connect Robot Penguin Serial Next, open the Penguin APP, display the Number Penguin serial number ( shown as below), click to enter the APP interface Home page www.boocax.com BooCax Technology Co.,Ltd. 15 / 26... -
Page 17: Build The Map
(6) If the scene is too large, you can use "INCREMENT" to repair and expand the map; (7) When passing through the QR code, stay in front of it for more than 1s and there will be a corresponding voice prompt when the entry is successful. www.boocax.com BooCax Technology Co.,Ltd. 16 / 26... -
Page 18: Deploy Route
"Connect" can connect two position points ; （3） Road planning supports editing functions to facilitate the adjustment of the robot's walking route at any time . www.boocax.com BooCax Technology Co.,Ltd. 17 / 26... -
Page 19: Setting The Air Volume
When adjusting the air volume, first press the "child safety lock", and then adjust the air volume (small, medium, large) ； Function button status light description： - Green always on-task’s being executed( Under disinfection ） - Blinking Green- Pause work www.boocax.com BooCax Technology Co.,Ltd. 18 / 26... -
Page 20: Set The Scheduled Startup Time
Then click the "+" button Click "Schedule" on the are set, click "confirm" in to set the startup time and home page to enter the the upper right corner disinfection area editing interface to save www.boocax.com BooCax Technology Co.,Ltd. 19 / 26... -
Page 21: Start Disinfection
/all disinfection point is the same . In the following days, the robot will regularly start to perform disinfection work in each area according to the set time. You can also press the "Start / Pause" button "One-key disinfection" www.boocax.com BooCax Technology Co.,Ltd. 20 / 26... -
Page 22: More Function Settings
"nebulizer switch" to start. In addition, the "Settings" function interface has functions such as prompt language setting, volume adjustment, maintenance prompts, etc. Others such as disinfection log, line patrol mode selection, firmware upgrade, etc. are also on the "Settings" menu page. Users can set, Check: www.boocax.com BooCax Technology Co.,Ltd. 21 / 26... - Page 23 PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 Click "Upgrade Firmware", the App will upload Open the App, go to Settings - Firmware the downloaded upgrade file to the robot Upgrade www.boocax.com BooCax Technology Co.,Ltd. 22 / 26...
-
Page 24: Appendix 1: Robot Disinfection Effect Test Report
PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 Appendix 1: Robot disinfection effect test report www.boocax.com BooCax Technology Co.,Ltd. 23 / 26... -
Page 25: Appendix 2: Robot Qualification
PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 Appendix 2: Robot Qualification 1. Production qualification: 2. National online filing information for disinfection products Query URL: https://credit.jdzx.net.cn/xdcp/ Search for "BooCax" www.boocax.com BooCax Technology Co.,Ltd. 24 / 26... - Page 26 PG01 Plasma Air Disinfection Robot_Product Manualv1.0.1 www.boocax.com Business Cooperation / After-sale Hotline：400-161-8661 www.boocax.com BooCax Technology Co.,Ltd. 25 / 26...
