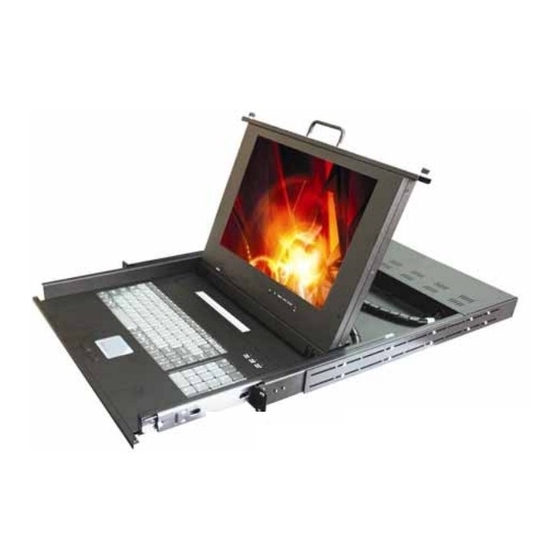

I-Tech BHK-115-8e User Manual

Black hawk series 1u keyboard / monitor + 8 / 16 ports
Hide thumbs Also See for BHK-115-8e:
Table of Contents

Advertisement

Quick Links

Download this manual

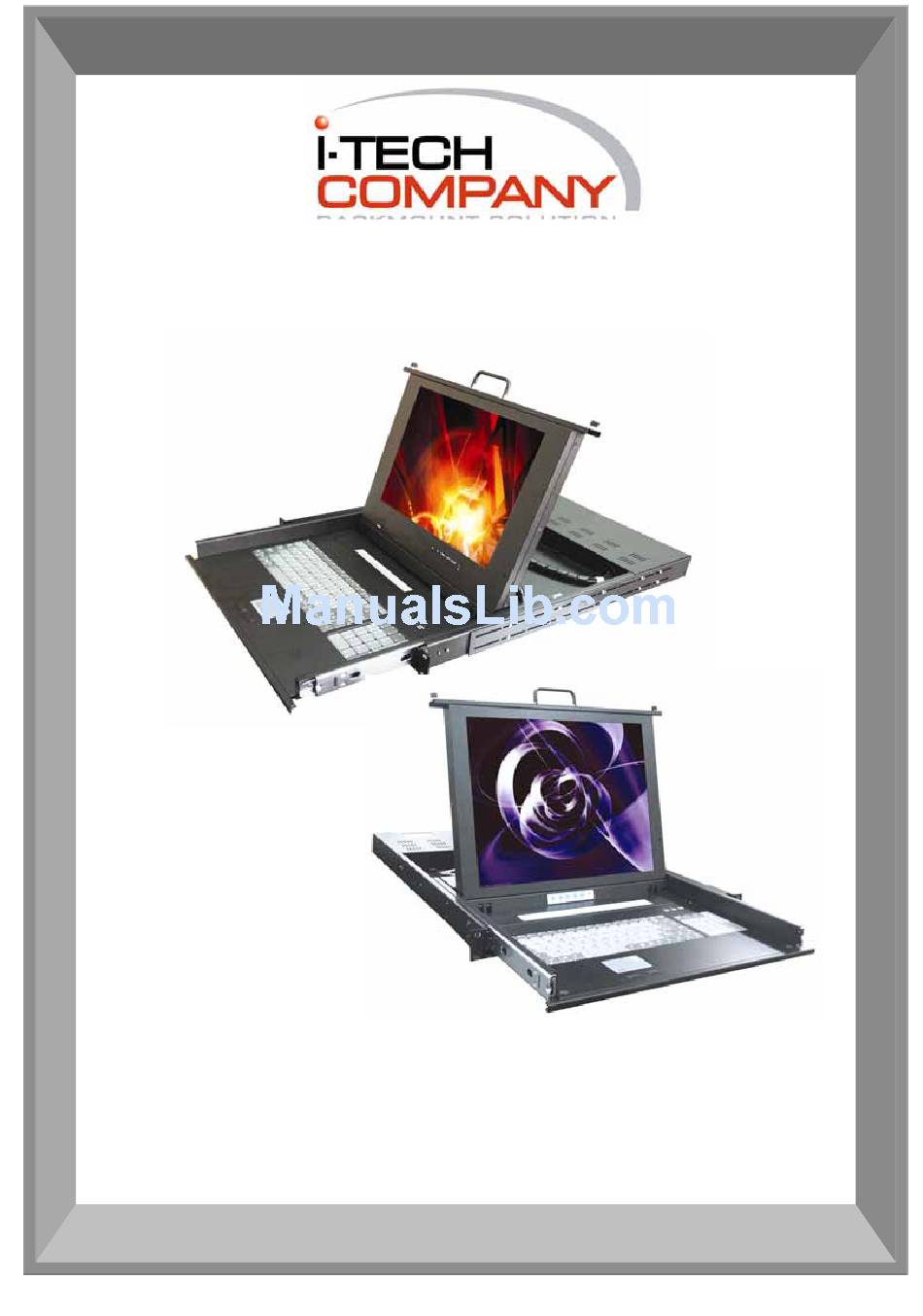

Your Rackmount Display Solution
1U
Keyboard / Monitor + 8 / 16 Ports
BHK Black Hawk Series
USER'S MANUAL
Ver.1

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the BHK-115-8e and is the answer not in the manual?

Questions and answers

Related Manuals for I-Tech BHK-115-8e

Summary of Contents for I-Tech BHK-115-8e

  • Page 1 Your Rackmount Display Solution Keyboard / Monitor + 8 / 16 Ports BHK Black Hawk Series USER’S MANUAL Ver.1...

  • Page 2: Table Of Contents

    Specification……………….……………………………………………...3 Rackmount Installation…………….……….…………………..………..4 Product Detail………………………………………………………………5 On Screen Display…………………………………………...………..6 On Screen Display for KVM Operation…………………………...….13 BHK-115-8e/117-8e ……………….……………………………….…………...16 INTRODUCTION …………...…………………………………………………..…….16 FEATURES ……………...…………..………………………………17 PACKAGE CONTENTS TECHNICAL SPECIFICATIONS CONNECTOR DIAGRAMS HARDWARE INSTALLATION ……………………………………………………………..…………20 USAGE DAISY CHAIN CONNECTION DIAGRAM ………………………………………………………..……………24 HOT PLUG ……………………………………………………………24 TROUBLESHOOTING ACCESSORIES…………………………………………...

  • Page 3: Specification

    Power cord: D-Sub 15 VGA-PS/2 Cable （3 in 1）: Screw Package: User’s Manual: www.i-techcompany.com BHK-115e/117e BHK-115-8e/117-8e BHK117-16e 1U 19” Rackmount type Notebook type, 105 Keys 444.5 * 44.5 * 550 mm 444.5 * 44.5 * 580 mm （17.5”*1.75”*21.6”） （17.5”*1.75”*22.8”） 15 kg（33 lb）...

  • Page 4: Rackmount Installation

    Rackmount Installation 1. Find the property position to screw these two extension brackets with the ears and both side onto the server rackmount first. 2. Lift & push the BHK inside the rackmount, and screw between bracket and BHK with 4 screws. 3.

  • Page 5: Product Detail

    Product Detail Self-locking Device Press the button to unlock Maximum Extension Length Up To 110∘ 431.8mm The view of open & close situation BHK Series Manual www.i-techcompany.com...

  • Page 6: On Screen Display

    On Screen Display BHK Series Manual www.i-techcompany.com...
  • Page 7 Auto Adjustment Bright & Contrast BHK Series Manual www.i-techcompany.com...
  • Page 8 Image Adjustment BHK Series Manual www.i-techcompany.com...
  • Page 9 Color Adjustment BHK Series Manual www.i-techcompany.com...
  • Page 10 BHK Series Manual www.i-techcompany.com...
  • Page 11 Language Selection Reset BHK Series Manual www.i-techcompany.com...
  • Page 12 OSD Adjustment Exit BHK Series Manual www.i-techcompany.com...

  • Page 13: On Screen Display For Kvm Operation

    On Screen Display for KVM Operation When you pop up the OSD menu window go through the hot key, you will see the following small window on your monitor. BANK : SYSTEM 01 ☼SYSTEM 03 ☼SYSTEM 05 SYSTEM 07 To use up arrow key “ “...
  • Page 14 To use “ Tab “ key to select items like Bank, OSD, SCAN, CHANGE PASSWORD, CONSOLE ON/OFF, etc… OSD : SEC. SCAN: SEC. ☼SYSTEM 15 OSD : SEC. SCAN: SEC. ESC : QUIT TAB : NEXT b. The “ SCAN TIME” means that scan interval from one PC port to next PC port. The default SCAN time is 10 sec and the maximum scan time is 99 sec.
  • Page 15 NEW PASSWORD COMPLETE ESC : QUIT d. The “ CONSOLE ON/OFF “ means to manage the BHK-115-8e/117-8e. If you select “ CONSOLE ON “, it means that any user can use the console. If you select “ CONSOLE OFF “(factory default OFF state), it means that any user will not be allowed to use the console unless you enter the password.

  • Page 16: Bhk-115-8E/117-8E

    Thank you for choosing BHK-115-8e/117-8e. BHK-115-8e/117-8e can save your MONEY, TIME, SPACE, EQUIPMENT and POWER. Controlling multiple PCs from One Keyboard, Mouse and VGA Monitor. BHK-115-8e/117-8e is loaded with features such as 19” Rack Mount Size, Daisy Chain up to eight units, On Screen Display Menu, Password security, Searching PC server name, Hot key Control, Front Panel Push Button and Auto Scan Control.

  • Page 17: Technical Specifications

    Weight (kg) Dimension (cm) System Requirements Specifications: Model No. www.i-techcompany.com BHK-115-8e/117-8e PS/2 Keyboard mini Din 6 pin PS/2 Mouse Mini Din 6 pin VGA HDDB 15pin PS/2 Keyboard mini Din 6 pin PS/2 Mouse Mini Din 6 pin VGA HDDB 15pin...

  • Page 18: Connector Diagrams

    Console To Computers Connector Diagrams PS/2 Cable: Mini Din 6 pin Male to Male VGA Cable: HDB15 pin Male to Male AT to PS/2 keyboard adapter: (Optional) Din 5 pin Male to Mini Din 6 pin Female PS2 to DB9 adapter (Optional) Mini Din 6 pin Female to DB 9 pin Female www.i-techcompany.com Built-in VGA Monitor...
  • Page 19 BHK Series Manual www.i-techcompany.com...

  • Page 20: Hardware Installation

    DB-9 serial port on the computer, and the other end to the PC1 DB-9 serial mouse port on the back of the BHK-115-8e/117-8e. If you need Serial DB-9 to PS2 Mini Din 6 pin adapter, please contact your supplier.

  • Page 21: Usage

    Repeat step 2 to 4 for the remainder of the computers. Step 6 Attach the power supply to the BHK-115-8e/117-8e unit and plug the other end into an electrical receptacle. Now you will see the LED for Port 1 light up, and you will hear a beep.
  • Page 22 Scroll Scroll Lock Lock Scroll Scroll Lock Lock To select Scroll Scroll Lock Lock Scroll Scroll Lock Lock Scroll Scroll Lock Lock To get out of Auto Scan Mode, Press any key or SPACE bar. Scroll Scroll Lock Lock Scroll Scroll Lock Lock...
  • Page 23 Example： A. To access a computer attached to Port 6 of the fifth Bank. You can press through hot key as below: Scroll lock + Scroll lock + “5” + “0” “ 6” B. To access a computer attached from Bank 3 to Bank 4, You can press through hot key as below: Scroll lock + Scroll lock + Page Down Notice:...

  • Page 24: Daisy Chain Connection Diagram

    B. Use one end of 3-in-one Cable Kit to connect the daisy chain port of bank 1 and the other end for the console port (white color block) of bank 2 BHK-115-8e/117-8e. C. Please repeat item B to daisy chain more bank as you want. But, the maximum daisy chain bank is eight.

  • Page 25: Hot Plug

    PCs as follows: a. A PC can be disconnected and reconnected to the same or different port of the BHK-115-8e/117-8e unit without having to power it off as long as it is not the Daisy-chain port or pass through port.

  • Page 26: Accessories

    If forgetting the “ password ” you typed, please contact your supplier. Accessories Ordering information: 1. VGA-100 VGA Extender (DB15 Female to DB15 Female) 100 feet VGA-100 - HDDB 15 pin to HDDB 15 pin, • All female, Max 100 feet. •...

  • Page 27: Introduction

    BHK 117-16e Illustration Introduction Congratulations, you have chosen the efficient BHK-117-16e switch can save your MONEY, TIME, SPACE, EQUIPMENT and POWER. Controlling multiple PCs from One Keyboard, Mouse and VGA Monitor. BHK-117-16e is loaded with features such as 19” Rack Mount Size, Daisy Chain up to 16 units, On Screen Display Menu, Password security, Searching PC server name, Hot key Control, Front Panel Push Button and Auto Scan Control.

  • Page 28: Technical Specifications

    Technical Specifications Model No. PC Port Console Port PC Port Connector PS/2 Keyboard mini Din 6 pin (All Female Type) PS/2 Mouse Mini Din 6 pin VGA HDDB 15pin Console Port Connector PS/2 Keyboard mini Din 6 pin (All Female Type) PS/2 Mouse Mini Din 6 pin VGA HDDB 15pin Daisy Chain Port Connector...

  • Page 29: Cable Diagrams

    Computer side Cable Diagrams PS/2 Cable: Mini Din 6 pin Male to Male VGA Cable: HDB15 pin Male to Male AT to PS/2 keyboard adapter: (Optional) Din 5 pin Male to Mini Din 6 pin Female PS2 to DB9 adapter (Optional) Mini Din 6 pin Female to DB 9 pin Female www.i-techcompany.com 16 HDB 15 pin male to male VGA cables...

  • Page 30: Hardware Installation

    Switching Indication Hardware Installation Step 1 Connect the monitor to the BHK-117-16e. Using the attached cable, or the one included with your monitor, connect it to the HD DB-15 female port on the back of the KVM unit labeled with the monitor symbol at the CONSOLE port connector.
  • Page 31 Step 5 Connect the first computer’s mouse cable to the BHK-117-16e. If using a PS/2 cable, connect one end to the PS/2 mouse port on the computer, and the other end to the PC1 PS/2 mouse port on the back of BHK-117-16e. If using a serial mouse cable (optional), connect one end to a DB-9 serial port on the computer, and the other end to the PC1 DB-9 serial mouse port on the back of the BHK-117-16e.

  • Page 32: Usage

    Now you will see the LED for Port 1 light up, and you will hear a beep. Switch on your monitor. OTICE Please be remind to plug in power adapter. Although the PCs connected to BHK-117-16e are able to support enough power to the stand alone switch, BHK-117-16e still needs a power adapter for daisy chain more banks.
  • Page 33 Operation System control state. Below are the different hot key commands: within 2 seconds Scroll Scroll Lock Lock Scroll Scroll Lock Lock Scroll Scroll Lock Lock Scroll Scroll Lock Lock To select PC port: Scroll Scroll Lock Lock Scroll Scroll Lock Lock Scroll...

  • Page 34: Daisy Chain Connection Diagram

    Scroll Scroll Lock Lock Scroll Scroll Lock Lock Example： a. To access a computer attached to Port 6 of the fifth Bank. You can press through hot key as below: Scroll lock + Scroll lock + “5” + “0” “ 6” b.
  • Page 35 bank is eight levels. Before chaining the slave bank up to six banks, you need a VGA extender (Model No. VGA-100, Max. 100 feet ) between the fifth bank and the sixth bank to enhance the VGA signal. BHK Series Manual www.i-techcompany.com...

  • Page 36: Hot Plug

    Hot Plug The BHK-117-16e supports “Hot Plug“ function for easy addition or removal of PCs. The user can arrange or maintain PCs as follows: c. A PC can be disconnected and reconnected to the same or different port of the KVM unit without having to power it off as long as it is not the Daisy-chain port or pass through port.

  • Page 37: Troubleshooting

    Troubleshooting 1. Ensure that all cables are well seated. Label all of cables with the number for each respective computer to avoid confusion. 2. The recommended VGA cable distance is 5 meters maximum without ghosting and degradation. Normally, the cable length is based on driver capacity of your VGA card. If you need longer VGA cable, please use VGA extender (Model No.

  • Page 38: Www.i-Techcompany.com Bhk Series Manual

    Accessories Ordering information: 1. VGA-100 VGA Extender (DB15 Female to DB15 Female) VGA-100 - HDDB 15 pin to HDDB 15 pin, • All female, Max 100 feet • PS2-100 - Two PS/2 Mini Din 6 pin to two • PS/2 Mini Din 6 pin, all female, Max 100 feet 2.
  • Page 39 CERTIFICATES This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received. Including interference that may cause undesired operation.
