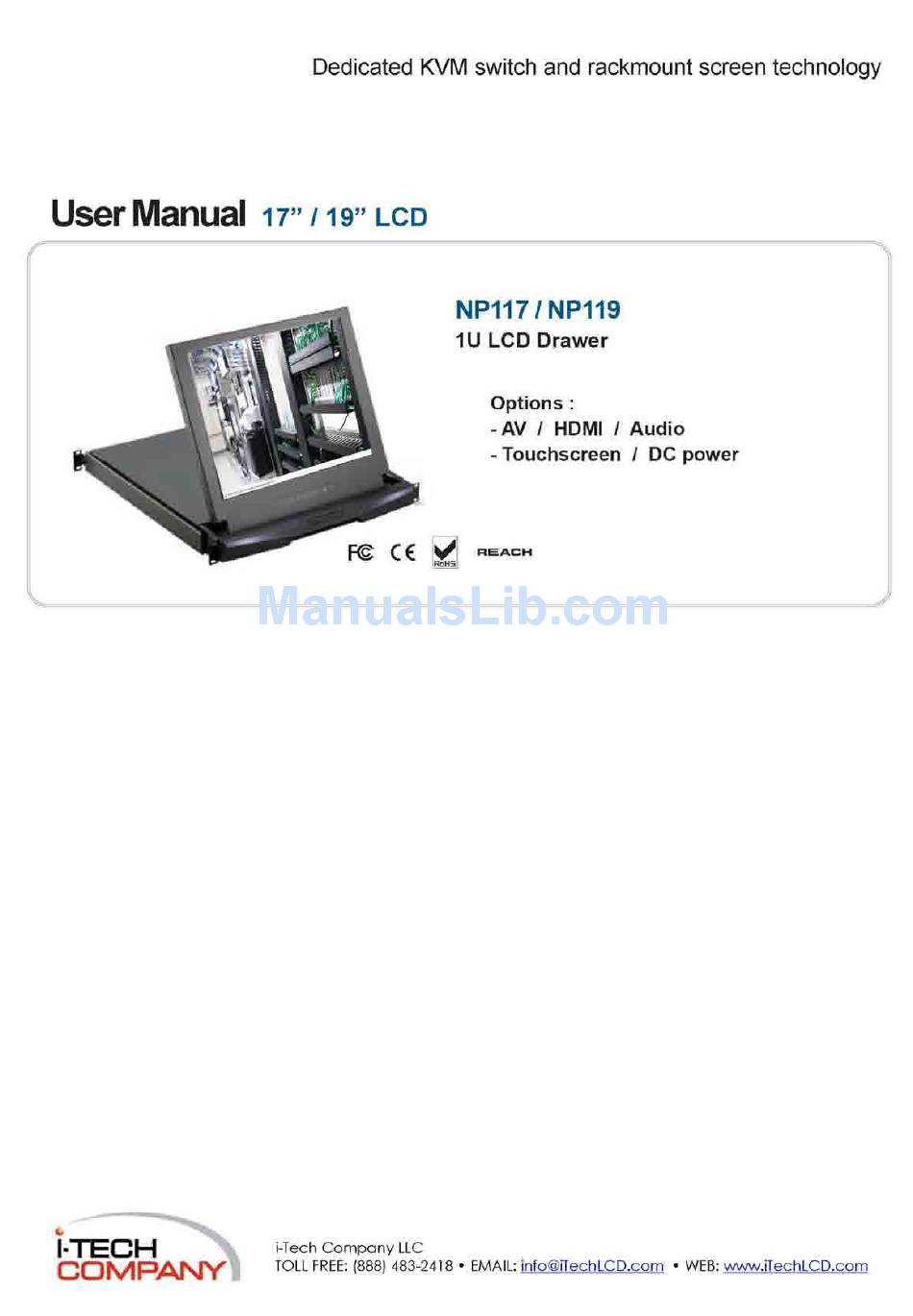

- Page 1 Dedicated KVM switch and rackmount screen technology User Manual 17” / 19” LCD NP117/NP119 1U LCD Drawer Options : -AV / HDMI / Audio - Touchscreen / DC power m C€ i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents <Part. 1 > NP117/NP119 Package Content P. 1 Structure Diagram & Dimension Installation < Part. 2 > Specifications / OSD Product Specifications On-screen Display Operation (OSD ) < Part. 3 > Options HDMI, S-Video + BNC & Audio 17" /19" Touchscreen : Resistive, Capacitive...
-
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. - Page 5 < Part 1 > < 1.1 > Package Content NP117/NP119unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 6 (W x D x H) (W x D x H) Weight Weight 441.6x500x44 mm 588 x758 x120 mm 10.5 kg 16.5 kg NP117 series 17.4x18.9x1.73" 23.1 x 29.8x4.7" 23 lb 36 lb 441.6x500x44 mm 588 x758 x120 mm 12.5 kg 18.5 kg...
- Page 7 nstall Installation Slides Step O Insert the left and right rear mounting brackets into the display drawer. Step O Measure the depth of the front and rear mounting rails. Align each rear mounting bracket to a suitable length. Step O Complete the installation ■...
- Page 8 < Part 2 > < 2.1 > Product Specifications NP117 NP119 Manufacturer Panel Size ( diagonal) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280x1024 1280x1024 Brightness (typ. ) Contrast Ratio (typ. )
- Page 9 -5to60°Cdegree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5-500Hz 1G RMS random NP117 NP119 Product ( W x D x H ) 441.6x500x44 mm 441.6x500x44 mm 17.4x19.7x1.73 inch 17.4x19.7x1.73 inch Packing ( W x D x H )
- Page 10 < 2.3 > On-screen Display Operation ( OSD ) t> Membrane Switch Function Turn the monitor on or off DCZI Display the OSD menu □ □ D l = l Act as an Enter key to select screen setting options A V <...
- Page 11 < 2.3 > On-screen Display Operation ( OSD ) Ver: G56SN20SSTD701 1024x768 59.8Hz Image Brightness Contrast Color Temp User I ^ ^ M Green Blue Adjust: Select: ♦ + Set: ®/i=i Exit: t OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video:...
- Page 12 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) ( 1 ) Either HDMI or DVI-D can be selected.
- Page 13 < 3.2 > Options : Touchscreen & driver 17" /19" USB Touchscreen Specification 19" 17" 19" Model Model Model Model Model Model Model Model Model Model Model Model Model Model e-Resistive e-Capacitive Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology...
- Page 14 < 3.3 > Options : DC Power Model Input rating 24-Volt 48-Volt Input voltage: 12-Volt Input range: 9 - 1 8 V 1 8 - 3 6 V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA...
- Page 15 I-TECH i-Tech C o m p a n y LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: w w w . i T e c h L C D . c o m C O M P A N Y...
