Data Retrieval - Bodystat QuadScan 4000 Operating Document

Waist/Hip
IMPEDANCE 5 kHZ
IMPEDANCE 50 kHz
IMPEDANCE 100 kHz
IMPEDANCE 200 kHz
RESISTANCE 50 kHz
REACTANCE 50 kHz
PHASE ANGLE 50 kHz

10. Data Retrieval

10.1 Reading data from device
10.1.1 After successful measurements, results are displayed as selected by user.
10.1.2 Top line displays Estimated Measure Results.
10.1.3 Bottom line displays Recommended or Normal Level for participant

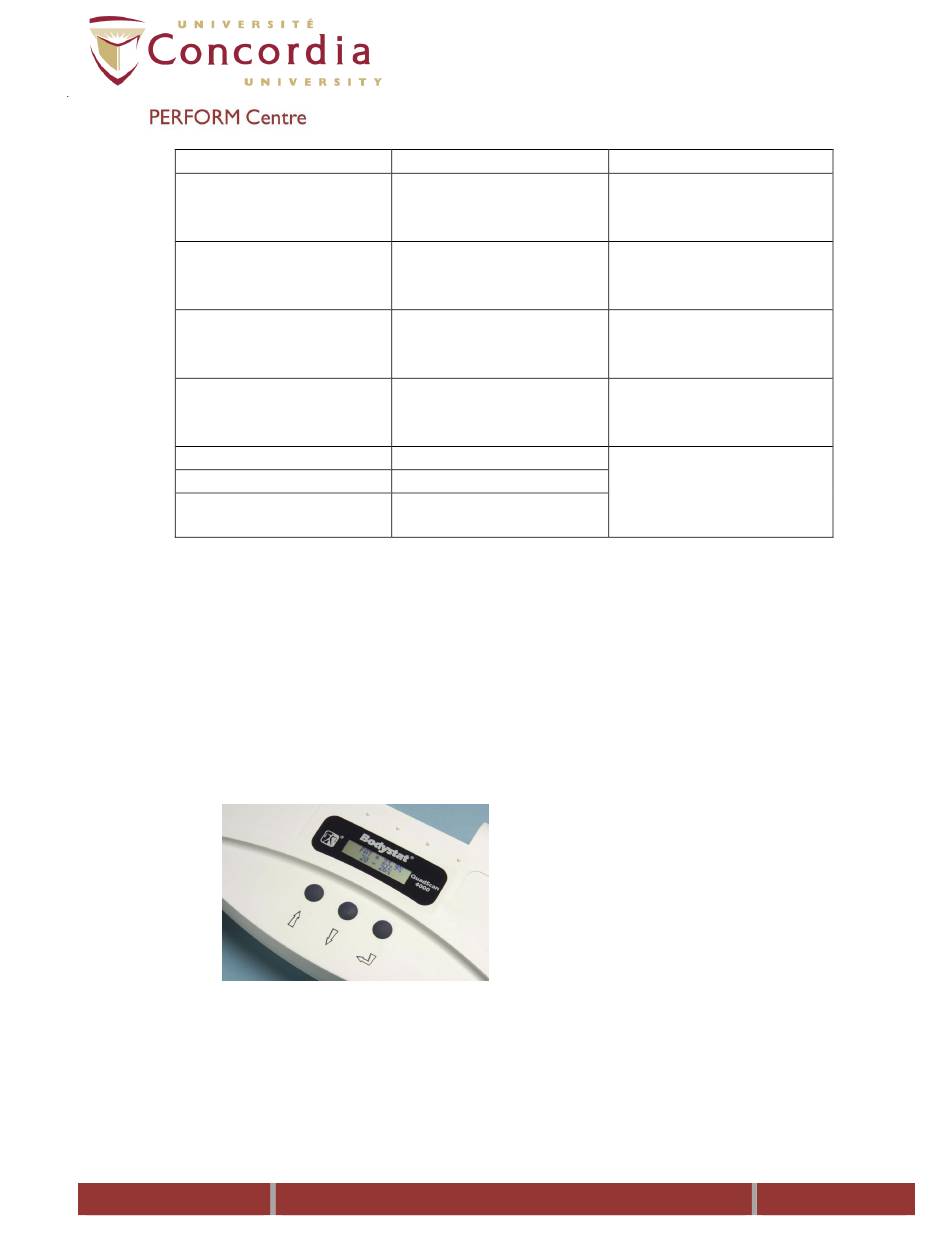

measured. See image below.
Use buttons ← or ↓ to display next screen.
10.1.4
Use ↑ to scroll back to previous screen.
10.1.5
10.2 Recall Participant Data
NOTE: Data is not lost after the unit is switched off or during battery replacement.
Hold down ← key while switching unit ON.
10.2.1
PC-POD-CP-012-v01
Waist/Hip ratio
The resistance to the
flow of the current at 5
kHz
The resistance to the
flow of the current at 50
kHz
The resistance to the
flow of the current at
100 kHz
The resistance to the
flow of the current at
200 kHz
Printed copies are not controlled.
PC-POD-CP-012-v01
These values are required
by certain types of BIA
users for subject
assessment
