PERFORM Operating Document
Use and Cleaning Procedures for Bodystat
Revision History
Version
Reason for Revision
01
New POD
1. Introduction
The content of this PERFORM Operating Document (POD) provides guidelines for use
and the cleaning procedure for the Bodystat
impedance analysis unit. This unit assesses body composition measuring at 5, 50, 100,
and 200 kHz. This POD applies to all users of the unit.
PC-POD-CP-012-v01
QuadScan 4000
PC-POD-CP-012-v01
®
QuadScan 4000 multi-frequency bio-
Printed copies are not controlled.
PC-POD-CP-012-v01
Date
June 18, 2020
Page 1 of 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QuadScan 4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Bodystat QuadScan 4000

Summary of Contents for Bodystat QuadScan 4000

  • Page 1 1. Introduction The content of this PERFORM Operating Document (POD) provides guidelines for use ® and the cleaning procedure for the Bodystat QuadScan 4000 multi-frequency bio- impedance analysis unit. This unit assesses body composition measuring at 5, 50, 100, and 200 kHz. This POD applies to all users of the unit.

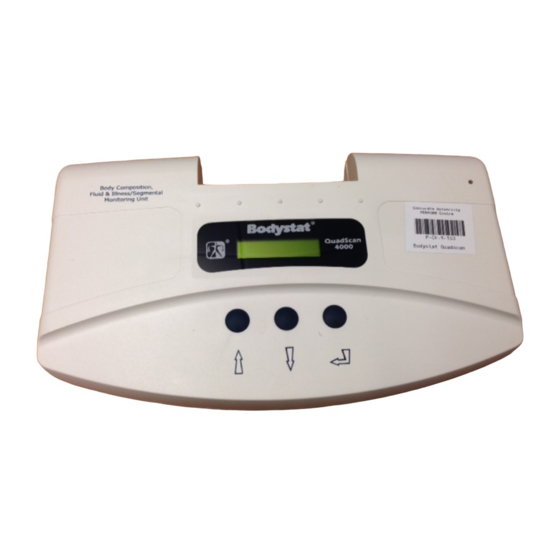

  • Page 2 PC-POD-CP-012-v01 2. Device Components and Accessories a. Multi-Frequency Impedance b. 2 Red and Black 1.2m Cable Measuring Unit Leads with White Port c. 2 Red and Black 1.2m Cable d. Disposable Electrodes Leads with Black Port e. Calibrator f. Measuring Tape 3.
  • Page 3 PC-POD-CP-012-v01 4. Calibration 4.1 Prior to each test, check battery life by turning on the device (power switch on left side). Six black squares will appear on the LCD screen representing battery life. As power is consumed, fewer black squares will appear. NOTE: Change all six batteries when only 1 square of battery life is shown.
  • Page 4 PC-POD-CP-012-v01 4.9.1 Check lead connections. 4.9.2 Replace all six batteries. 5. Setup 5.1 Equipment Setup Press ← until “Press enter for new test” appears. 5.1.1 Press ← to see the following: 5.1.2 Test Number = 12 NOTE: QuadScan automatically allocates the next available test number. This number is used to identify the participant’s data during recall and should be noted on the data intake sheet.
  • Page 5 PC-POD-CP-012-v01 (5-6 mph/8-10 kph), walking 6 mph/8-10 kph). Very High Vigorous Consistent job activity and Aerobic (high-intensity), Exercise at Competitive vigorous exercise cycling (15-20 mph/24-32 4 times per week. Level kph), circuit weight training, calisthenics, field hockey, gymnastics (heavy), squash, ice hockey, handball, racquetball, rope skipping (120-140 rpm), soccer, running (7-9...
  • Page 6 PC-POD-CP-012-v01 5.3.2.4 Lie participant on their back on table, for 3-4 minutes before measurement, with feet shoulder width apart. 5.3.2.5 Extend their arms by their side with palms down, legs slightly apart (if necessary, place towel between participant’s legs or arms and torso in order to prevent skin-to-skin contact).

  • Page 7: Understanding Results

    8.5 The QuadScan 4000 utilizes the following Regressions Equations, however further equations can be found in the software program such as children’s equation for age groups 6 to 17 years old.

  • Page 8: Display Results

    PC-POD-CP-012-v01 9. Display Results Fat as % of total body FAT (%) weight FAT (kg) Estimated fat weight Determines Health Risk Lean muscle mass as % LEAN (%) of total body weight Includes muscle, bone & water Estimated lean muscle LEAN (kg) mass TOTAL...

  • Page 9: Data Retrieval

    PC-POD-CP-012-v01 Waist/Hip Waist/Hip ratio The resistance to the IMPEDANCE 5 kHZ flow of the current at 5 The resistance to the IMPEDANCE 50 kHz flow of the current at 50 The resistance to the IMPEDANCE 100 kHz flow of the current at 100 kHz The resistance to the IMPEDANCE 200 kHz...

  • Page 10: Safety, Care And Maintenance

    PC-POD-CP-012-v01 10.2.2 Recall Data will appear on screen, release button. Press ← to select test number. 10.2.3 Select Test Number 10.2.4 Input data is displayed first, followed by output data. 10.2.5 To exit from this program, switch unit OFF. 10.3 Exporting data from device 10.3.1 Switch Quadscan ON.

  • Page 11: Troubleshooting

    PC-POD-CP-012-v01 11.2.1.2 Avoid exposure to water, impact and excessive heat or direct exposure to sunlight. 11.2.2 Care of the leads: 11.2.2.1Clean leads with a damp cloth if required. 11.2.2.2 Cables should not be wrapped around the unit, tangled or tightly rolled when not in use.
