4. Calibration
4.1 Prior to each test, check battery life by turning on the device (power switch on left
side). Six black squares will appear on the LCD screen representing battery life. As
power is consumed, fewer black squares will appear.
NOTE: Change all six batteries when only 1 square of battery life is shown. Turn off
device before replacing with 6 non-rechargeable AA batteries (only Duracell or
Procell recommended).

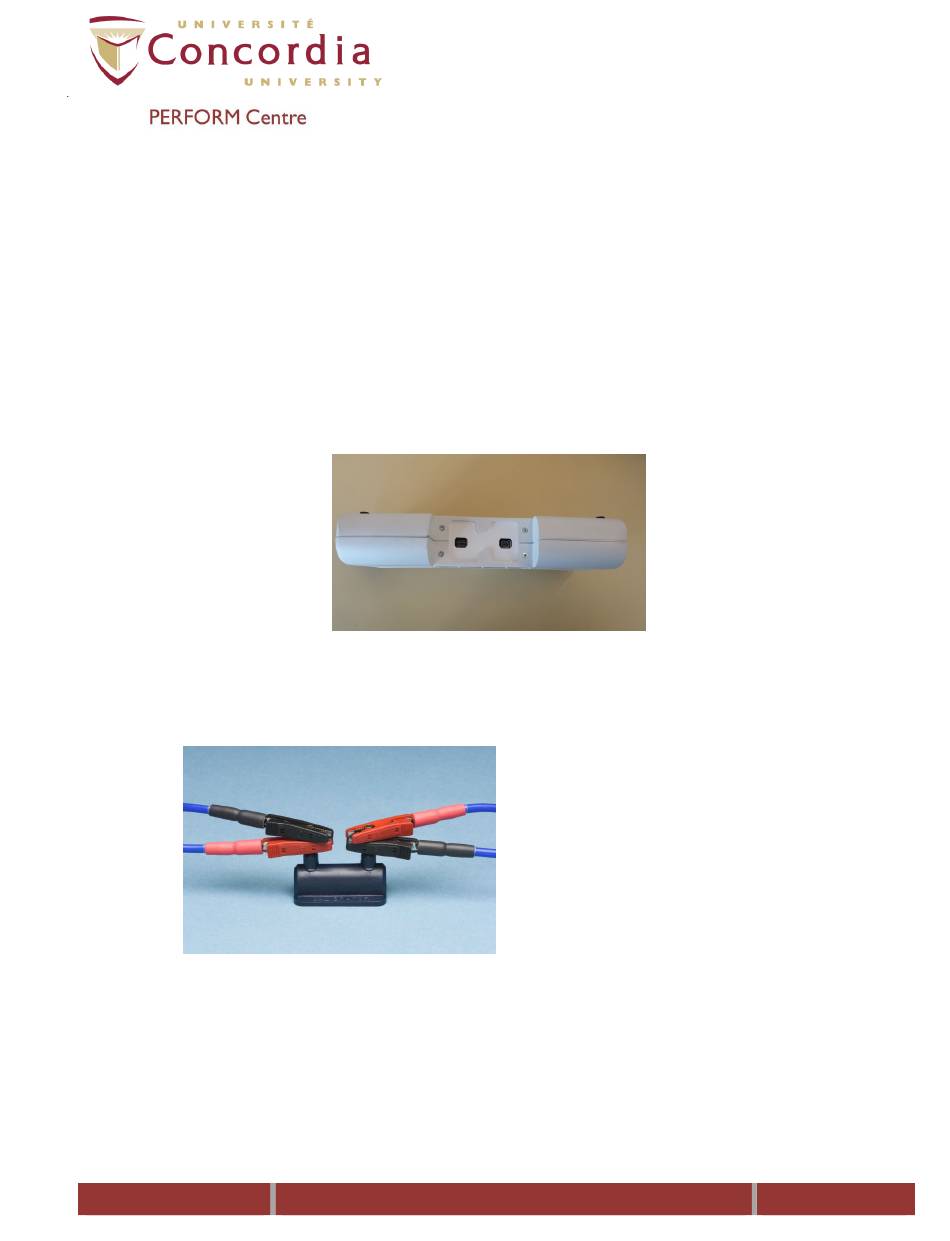

4.2 Connect "Red and Black 1.2m Cable Leads with White Port" to connector inputs at
top of unit.
4.3 Attach a pair of red and black leads to any one terminal of calibration unit.
4.4 Attach other pair of red and black leads to other terminal of calibration unit.
4.5 Accept default settings
4.6 Press ←.
4.7 Using the ↓ arrow, scroll through calibration results. Select "impedance".
4.8 Results at 5, 50, 100 and 200 kHz should reflect readings between 496 and 503.
4.9 If calibration results are outside of range:
