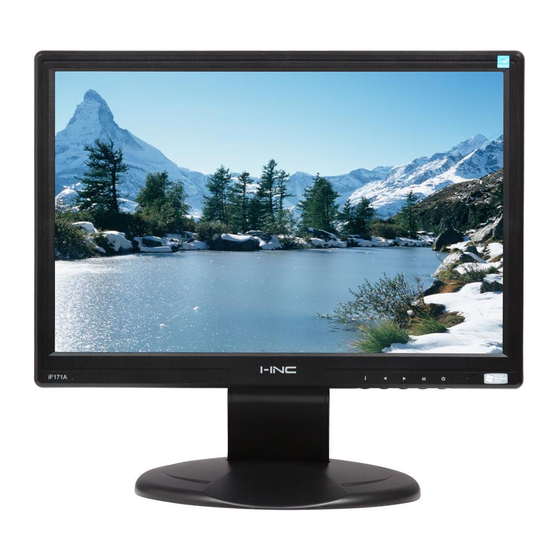

- Page 1 17 inch Wide Screen TFT LCD Monitor iF171A USER’S MANUAL...
- Page 2 User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
SAFETY NOTICE ...4 PRECAUTIONS...4 SPECIAL NOTES ON LCD MONITORS ...5 BEFORE YOU OPERATE THE MONITOR ...6 FEATURES...6 CHECKING THE CONTENTS OF THE PACKAGE ...6 INSTALLATION INSTRUCTIONS ...7 POWER...7 MAKING CONNECTIONS...8 ADJUSTING THE VIEWING ANGLE...9 OPERATING INSTRUCTIONS ...10 GENERAL INSTRUCTIONS...10 FRONT PANEL CONTROL ... 11 HOW TO ADJUST A SETTING ...12... -
Page 4: Safety Notice
• swimming pool or in a wet basement. Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a • person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. -
Page 5: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the • Power Switch and then turn it on again to make sure the flicker disappears. -
Page 6: Before You Operate The Monitor
User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 17” Wide screen TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions: 1440 X 900 @60Hz • ® EPA ENERGY STAR • Ergonomic Design • Space Saving, Compact Case Design •... -
Page 7: Installation Instructions
3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly. 4. Verify that the monitor is securely attached to the base by looking at the bottom of the base and making sure that the clips are fully engaged in the base. -
Page 8: Making Connections
CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2. Plug one end of the AC power cord to the LCD monitor’s AC input socket, and the other end to Wall outlet. -
Page 9: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust the • monitor’s angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor’s angle. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. -
Page 11: Front Panel Control
(The Auto Adjustment function is used to optimized the H-Position, V-Position, Clock and Phase.) NOTES: Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a • place subject to direct sunlight, or excessive dust or mechanical vibration or shock. -
Page 12: How To Adjust A Setting
User’s Manual HOW TO ADJUST A SETTING FUNCTION DESCRIPTION Select the「Brightness」option on the「Main Menu」. Enter the option by Brightness pressing the 「Menu」 button again, and adjust the level. Select the 「 Contrast」 option on the 「 Main Menu」 . Enter the option by pressing Contrast the 「Menu」... - Page 13 FUNCTION DESCRIPTION 5500K/6500K/ Move the cursor to one of the preset options and select it. 9300K Move the cursor to the User option and select it 1. To adjust the red, enter the「R」option and adjust the level. User 2. To adjust the green, enter the「G」option and adjust the level. 3.
-
Page 14: Function Description
Select the「Sharpness」option to adjust the sharpness of the display. Set the Sharpness value from 0 to 6. Select the「DOS mode」option to set the monitor for use with PC. Enter the DOS mode option and select 720 × 400 or 640 × 400. -
Page 15: Plug And Play
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. -
Page 16: Technical Support (Faq)
*Computer Video Card should be snugly seated in its slot *Make sure monitor’s video cable is properly connected to the computer. *Inspect monitor’s video cable and make sure none of the pins are bent. *Make sure computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. -
Page 17: Error Message & Possible Solutions
ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. -
Page 18: Appendix
User’s Manual APPENDIX SPECIFICATIONS Driving system LCD Panel Size Pixel pitch Video H-Frequency V-Frequency Display Colors Maximum Screen Size Max. Resolution Plug & Play ON Mode ® EPA ENERGY STAR Power Saving Mode OFF Mode Input Terminal Power Source Environmental Considerations Dimensions Weight (NW)
