Summary of Contents for I-Inc IX191APB

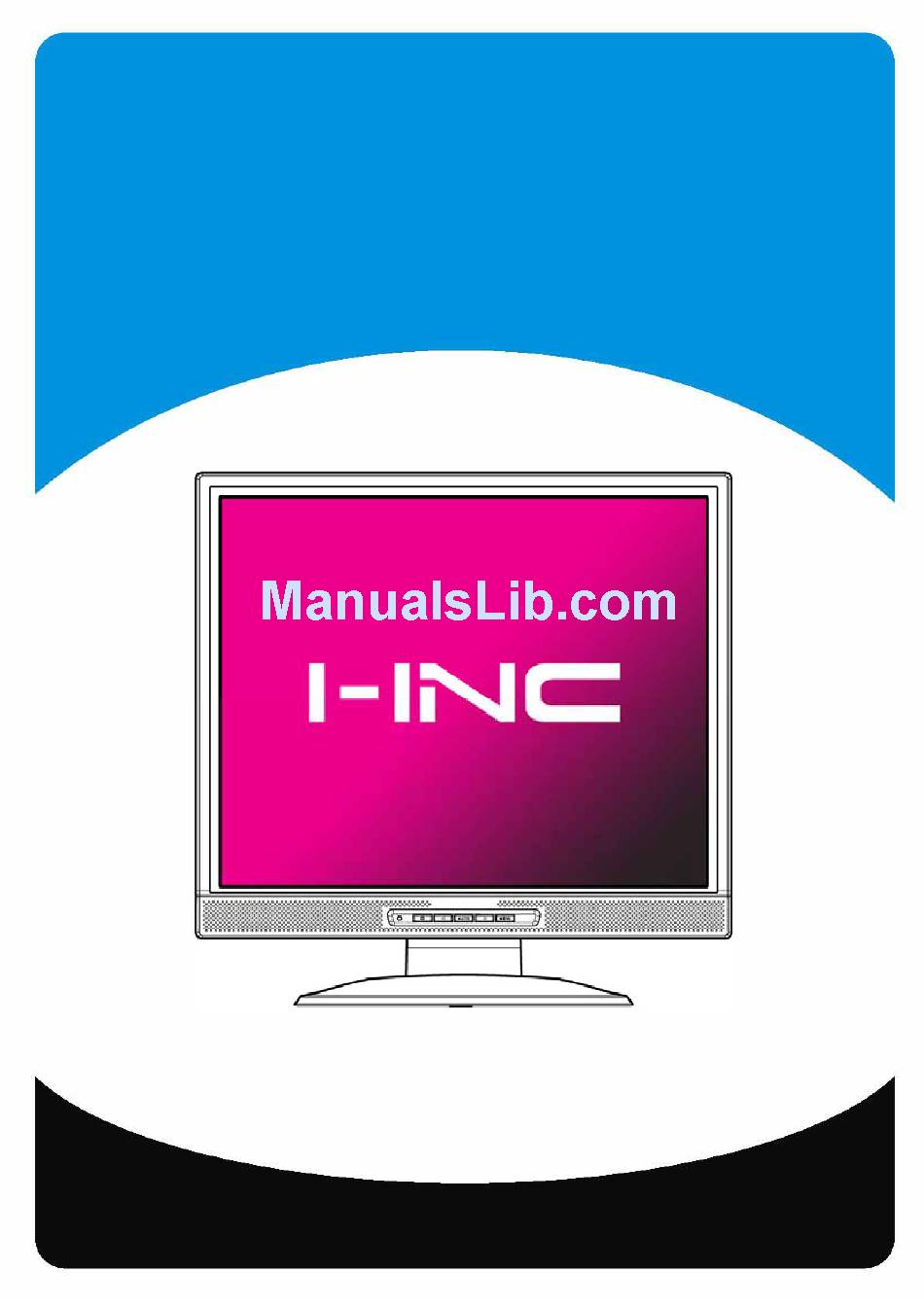

- Page 1 19 inch TFT LCD Monitor iX191 USER’S MANUAL...
- Page 2 User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
-
Page 4: Table Of Contents
User’s Manual SAFETY NOTICE ...5 PRECAUTIONS...5 SPECIAL NOTES ON LCD MONITORS ...6 BEFORE OPERATING THE MONITOR ...7 FEATURES...7 CHECKING THE CONTENTS OF THE PACKAGE ...7 INSTALLATION INSTRUCTIONS ...8 POWER...8 MAKING CONNECTIONS...9 ADJUSTING THE VIEWING ANGLE...10 OPERATING INSTRUCTIONS ... 11 GENERAL INSTRUCTIONS... 11 FRONT PANEL CONTROL ...12... -
Page 5: Safety Notice
• swimming pool or in a wet basement. Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a • person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. -
Page 6: Special Notes On Lcd Monitors
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the •... -
Page 7: Before Operating The Monitor
BEFORE OPERATING THE MONITOR FEATURES 19” TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions:1280 X 1024@60Hz • ® EPA ENERGY STAR • Ergonomic Design • Space Saving, Compact Case Design • CHECKING THE CONTENTS OF THE PACKAGE... -
Page 8: Installation Instructions
3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly. 4. Verify that the monitor is securely attached to the base by looking at the bottom of the base and making sure that the clips are fully engaged in the base. -
Page 9: Making Connections
CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2. Connect one end of the DVI-D cable (Dual input mode optional) to the back of the monitor and connect the other end to the computer’s DVI-D port. -
Page 10: Adjusting The Viewing Angle
User’s Manual ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, and then adjust the • monitor’s angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor’s angle. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preference. -
Page 12: Front Panel Control
(The Auto Adjustment function is used to optimized the H-Position, V-Position, Clock and Phase.) NOTES: Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a • place subject to direct sunlight, or excessive dust or mechanical vibration or shock. -
Page 13: How To Adjust A Settings
HOW TO ADJUST A SETTINGS iX191A FUNCTION DESCRIPTION Select the「Brightness」option on the「Main Menu」. Enter the option by Brightness pressing the 「Menu」 button again, and adjust the level. Select the 「 Contrast」 option on the 「 Main Menu」 . Enter the option by pressing Contrast the 「Menu」... - Page 14 User’s Manual Select the 「Clock Adjustment」option to reduce the vertical flicker of Clock Adjustment characters on the screen. Enter the option and adjust the level. Select the「Phase Adjustment」option to reduce the horizontal flicker of Phase Adjustment characters on the screen. Enter the option and adjust the level. Exit Exit the OSD menu function.
-
Page 15: Function Description
Select the「Sharpness」option to adjust the sharpness of the display. Set the value from 0 to 6. DOS mode Select the「DOS mode」option to set the monitor for use with PC. Enter the option and select 720 × 400 or 640 × 400. Factory Preset Select the 「Factory Preset」... -
Page 16: Plug And Play
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. -
Page 17: Technical Support (Faq)
*Computer Video Card should be snugly seated in its slot *Make sure monitor’s video cable is properly connected to the computer. *Inspect monitor’s video cable and make sure none of the pins are bent. *Make sure computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. -
Page 18: Error Message & Possible Solutions
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED: 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT: Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. -
Page 19: Appendix
APPENDIX SPECIFICATIONS Driving system LCD Panel Size Pixel pitch H-Frequency Video V-Frequency Display Colors Max. Resolution Plug & Play ON Mode ® EPA ENERGY STAR Power Saving Mode OFF Mode Audio output Input Terminal Maximum Screen Size Power Source Environmental Considerations Dimensions Weight (NW)
