DELIVERY, UNPACKING
Water Requirements: 12 gallons of DISTILLED water.
Requires a doorway larger than 32" to the installation room
15395 Roosevelt Blvd.
Clearwater FL. 33760
www.hydromassage .com
AND SETUP
INSTRUCTIONS
Class I, Type B, IPXO, Equipment
Revised Jan 15, 2021
Specifications

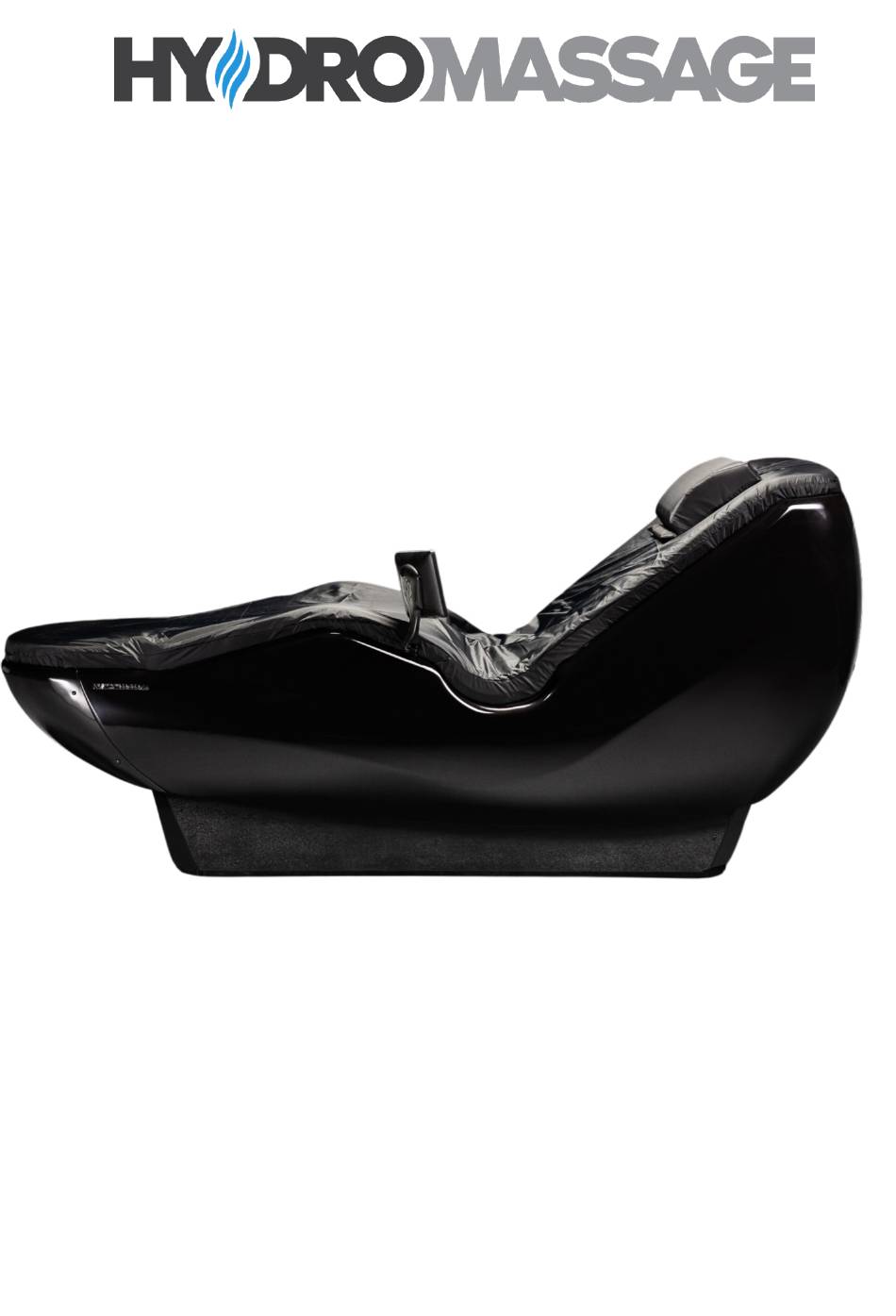

Model HM200
Demensions: Length 91" Width 32" Height 46"
Weight: 285lbs w/o water / 370lbs with water
PH 727-536-5566 Ext 1014
Fax 727-536-6633
salessupportteam@hydromassage.com
Advertisement
Related Manuals for HydroMassage HM200
Summary of Contents for HydroMassage HM200
- Page 1 Class I, Type B, IPXO, Equipment Revised Jan 15, 2021 Water Requirements: 12 gallons of DISTILLED water. Specifications Model HM200 Demensions: Length 91” Width 32” Height 46” Weight: 285lbs w/o water / 370lbs with water Requires a doorway larger than 32” to the installation room 15395 Roosevelt Blvd.
-
Page 2: Unpack Unit
Unpack Unit 1.0 Unpacking Unit The following instructions explain how to unpack and move your HydroMassage® unit to desired location. CAUTION Use caution when removing plas- tic wrap, DO NOT USE utility knife or sharp instruments that can scratch or damage top cover and panels. - Page 3 • To begin, remove the back panel by Step removing the 6 screws (3 on each side). Gently pull the panel away from the unit IMPORTANT: Place all panels and thumb screws in a secure location (finished side up) • Remove the foot panel by removing the 4 screws (2 on each side).
- Page 4 • Starting at the foot end of the unit, re- Step move the 2 screws as shown at each corner of the base panels. Remove the head and foot panels, • NOTE: Be sure the front base panel with the filter is reinstalled on the front when reassembling.
- Page 5 • Remove the 2 lag bolts securing the Step Lounge to the plywood skid on both sides for a total of 4 using a 7/16 socket or wrench as shown in Figure 1. Figure 1. • Place the unit on a 4 wheel dolly or similar Step device as shown.
- Page 6 2.0 Move Unit & Setup The following instructions explain how to safely move and setup your HydroMassage® unit. • Use two people when moving unit, use caution not to CAUTION scratch or marr the flooring. • Move and position the HydroMassage® unit Step in the desired location and remove from dolly.
- Page 7 Remove the Touchscreen from the shipping box and proceed • Pulling down on the grey Step tabs, unhook the top cover from around the knobs to the right of the knee area and fold back the cover. • Remove Touchscreen Mount- Step ing knobs from either side of the notch in the flat bar as...
- Page 8 3.0 Test Unit & Reinstall Panels Step • Locate the 220 volt power cord and plug the unit in. Wait for the initialization to complete. Step • While laying on the unit, press the START button. The unit will start and begin a massage session.
- Page 9 Step • Reinstall the foot end base panel and secure with 2 screws as shown at each foot corner of the base panels. IMPORTANT: Be sure the front base panel with the filter is reinstalled on the front when reassembling.. •...
- Page 10 For any issues during installation, contact HydroMassage® technical support BEFORE LEAVING: Email: support@hydromassage.com Phone: 727-536-5566, option 1 at the prompt For complete maintenance documentation and resources for your HydroMassage® visit www.myhydromassage.com IMPORTANT PRIOR TO LEAVING THE SITE ****GET CUSTOMER ACCEPTACE SIGNED**** ENSURE THAT ALL PANELS ARE...
- Page 11 Optional User Right Hand Touchscreen Installation Only Per form the following steps if you are switching Touchscreen from the user left side. Tool needed, 7/16” wrench, Phillips Screwdriver Step • Using a Phillips Screwdriver, remove the center screw holding the back cover in place.
