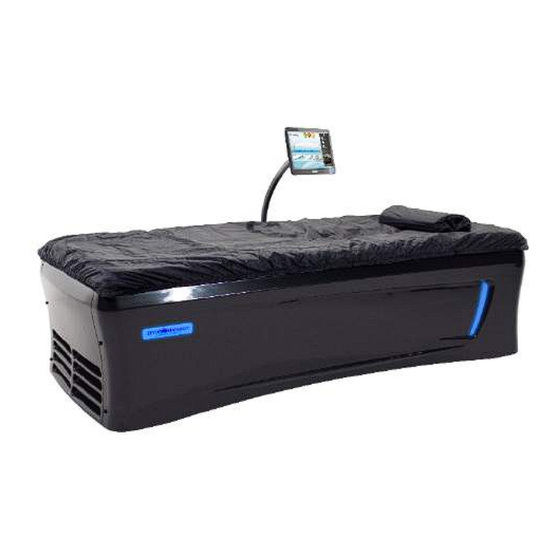

L-300 Bed Quick Start Manual
Bluetooth Models
Class I, Type B, IPXO, Equipment
Revised March 23, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-300 Bed and is the answer not in the manual?

Questions and answers

Related Manuals for HydroMassage L-300 Bed

Summary of Contents for HydroMassage L-300 Bed

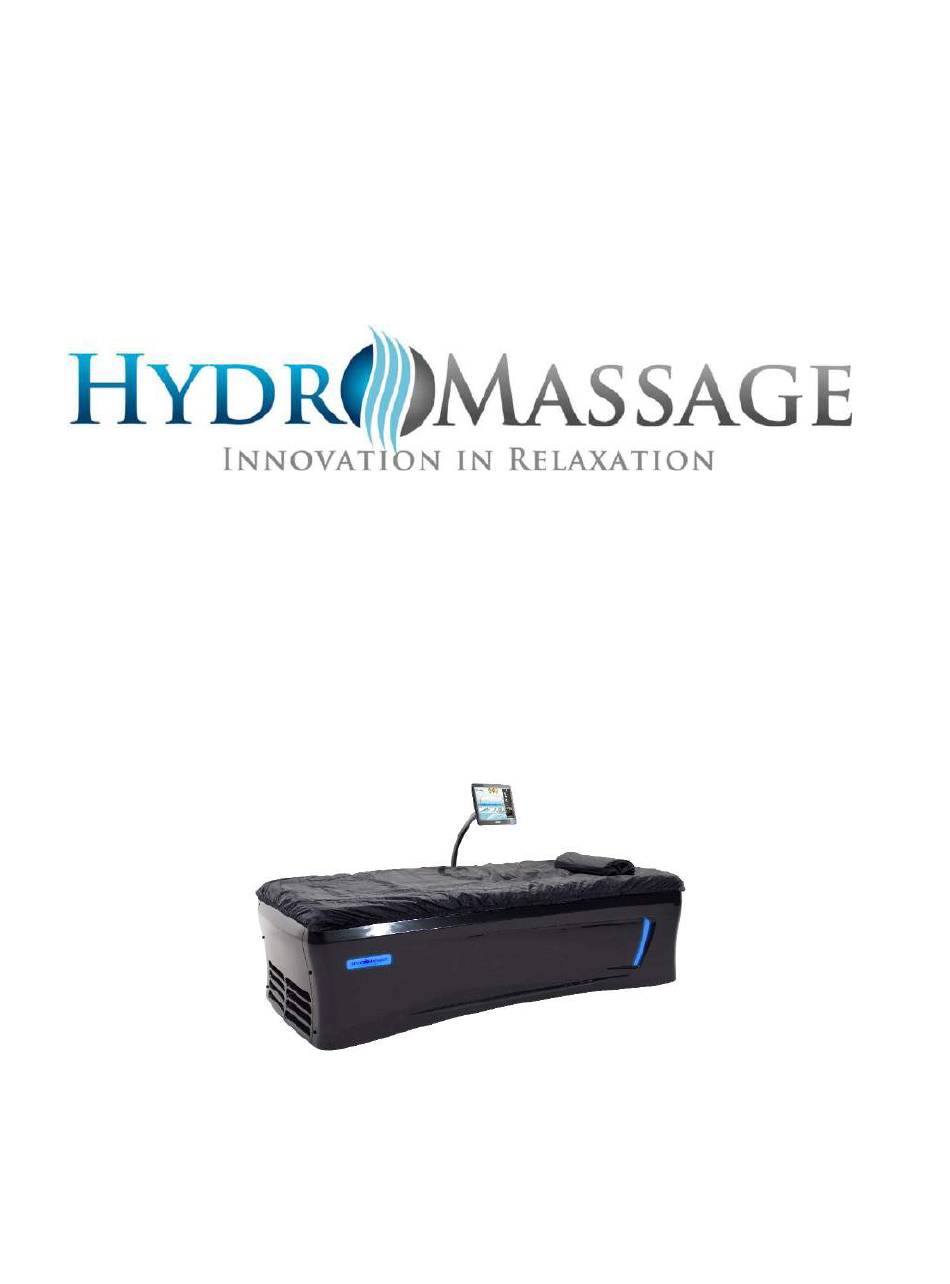

  • Page 1 L-300 Bed Quick Start Manual Bluetooth Models Class I, Type B, IPXO, Equipment Revised March 23, 2018...

  • Page 2: Introduction To Hydromassage

    Please visit http://hydromassage.com/Maintenance-Tips.cfm for additional marketing, technical support, and installation resources. L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 1 of 36...

  • Page 3: Table Of Contents

    Table of Contents (Complete manual found online at www.HydroMassage.com) Contents Introduction to HydroMassage® Table of Contents HydroMassage® Limited Warranty Disclaimers HydroMassage® Precautions and Contraindications HydroMassage® Safety Considerations HydroMassage® Specifications Installation/Room Preparations Delivery/ Unpacking Instructions Delivery / Moving Bed to Desired Location Touchscreen Installation HydroMassage®...

  • Page 4: Hydromassage® Limited Warranty

    Specific legal rights: This limited Warranty gives you specific legal rights which may vary from state to state. L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 3 of 36...

  • Page 5: Disclaimers

    This writing constitutes the final expression of the parties' agreement and is the complete and final statement of the terms of the agreement. L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 4 of 36...

  • Page 6: Hydromassage® Precautions And Contraindications

    *IMPORTANT: Any person with a specific medical condition upon which heat or massage might have an adverse effect should consult a physician prior to use. L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 5 of 36...

  • Page 7: Hydromassage® Safety Considerations

    • If the External Cooling System is to be installed anywhere other than on the ground, check to ensure it is securely mounted. L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 6 of 36...

  • Page 8: Hydromassage® Specifications

    Max Resolution 1920 x 1080 pixels, 60 Hz Temperature Parameters Operating: 41°F-95°F/5°C-35° Weight 3.95 lbs./1.79 kg Input Requirements Index finger or soft object L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 7 of 36...

  • Page 9: Installation/Room Preparations

    / For International installations: please have your electrician install an appropriate plug and receptacle according to code • Requires a 110 Volt outlet within 5’ of the center of the HydroMassage bed. • CAT 5 or Cat 6 Internet / Network connection at least 6’ from bed Please be sure your electrical installation is completed before the unit arrives.

  • Page 10: Delivery/ Unpacking Instructions

    Adjustable Phillips Screw Small Scissors Tin-Snips Crescent Wrench Driver Follow the steps below when unpacking HydroMassage® Bed Shipping Crates. Step 3: Remove box (sleeve) by Step 2: Remove Lid Step 1: Using Tip-Snip snip lifting up packing bands Step 6: Unsnap and remove...
  • Page 11 Continued: Follow the steps below when unpacking HydroMassage® Bed Shipping Crates. Step 7: Remove both side panels then both end panels by lifting up the top edges off Velcro fasteners. NOTE: As shown in figure(s) 1 and 2 Figure 1...

  • Page 12: Delivery / Moving Bed To Desired Location

    Continued: Follow the steps below when unpacking HydroMassage® Bed Shipping Crates. Step 9: Slide bed off the shipping skid. IMPORTANT: Ensure to carefully place on the ground. Step10: Inspect for External Cooling System as shown below in figure 4. If included, snip packing bands with the Tin-Snips and unpack unit.
  • Page 13 Follow the steps below when moving HydroMassage® Bed to desired location. Step 1: Move bed to desired location. NOTE: Ensure metal control box is facing toward the center of the room for easy access. NOTE: If you must stand the bed on its end •...
  • Page 14 • Ensure to include a T-Max controller (if applicable) • Any additional items as specified on the invoice. THIS IS THE END OF THE DELIVERY AND UNPACKING INSTRUCTIONS. L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 13 of 36...
  • Page 15 Allen Wrench to tighten touchscreen arm if necessary Found in bag attached to frame Power cord wiring to touchscreen (can be routed to either side) L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 14 of 36...

  • Page 16: Touchscreen Installation

    L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com...
  • Page 17 7. Users may plug headphones into headphone jack on back of touchscreen 8. If installing T-Max or other remote usage controls, make connection at this point. NOTE: Call HydroMassage® technical support at 727-536-5566 with question. L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 •...

  • Page 18: Hydromassage® Initial Start-Up

    HydroMassage® Initial Start-Up 1. Make sure HydroMassage® power cord is NOT plugged into 220V outlet. If the touchscreen is not turned on, the bed should never be plugged in at the 220V electrical outlet. 2. Underneath bed, check to ensure two PVC pump unions are tight.

  • Page 19: Bluetooth Setup

    Connecting Via Bluetooth **Important** HydroMassage® Touchscreen must be paired to Bluetooth Module 1. Hold the HydroMassage® Logo in the top left corner and type in 120700 and hit enter. Select the button for "Advanced Options" on the bottom of the app.
  • Page 20 Do not hit any buttons or do anything on this window as the Bluetooth chip will automatically connect itself to the tablet and this window will disappear. L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com...
  • Page 21 • Once all water is added remove the fill tube and reinstall the breather tube. 7. Press green START button on touchscreen to turn on HydroMassage® for the first time. • Check under unit for any visible signs of leaks.
  • Page 22 HydroMassage® Testing 1) Test touchscreen controls • Confirm the HydroMassage® is working properly by testing the pressure bars, change the massage speed, and launch the entertainment options at least 1X each. Massage Massage Area Pressure Limits Massage Travel Speed Entertainment 2) Test the cooling system (either external and internal) (For 440, 450 Models, Admin screen to view temperature settings).

  • Page 23: Final Assembly

    Cover Sheet Comfort Velcro opening for Touchscreen Pole 5. Contact HydroMassage® Techinical Support Department at 727-536-5566 to install HydroMassage® Desktop Software and Remote Access Sotware (if applicable) L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com...

  • Page 24: Hydromassage Post Installation Training

    HydroMassage® Post Installation 1) HydroMassage® Usage • Ensure all staff/ customers are familiar with basic HydroMassage® operation and functionality • The pillow should be positioned at the top of the user's shoulders to reduce noise. pillow may be removed to massage head and neck.

  • Page 25: Hydromassage Touchscreen Overview

    HydroMassage® Touchscreen Overview The HydroMassage® touchscreen is a feature that was designed to increase the functionality, ease of use, and overall level of enjoyment of a HydroMassage® Dry Hydrotherapy system. In addition to allowing the user to adjust the pressure, speed,...
  • Page 26 Time before beginning the massage, press either the Up or Down arrows directly to the right of the clock. To change the default time, see "Adjusting Defaults" under Advanced Features. L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 25 of 36...
  • Page 27 To access this menu, press and hold the HydroMassage® Logo on the main screen for 5 seconds then enter the HydroMassage® Administrator Code (120700). The Administrator Default windows will open.
  • Page 28 Click on the LED Color box to open the LED Color Picker Select desired color and close Default Blue is Green Blue Use the slide bar to adjust, then click close L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 27 of 36...
  • Page 29 HydroMassage External Timer Connection Diagram ® L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 28 of 36...

  • Page 30: External Temperature Control Unit Installation

    Above-the-Room Installation BENEFITS OF AN ABOVE-THE-ROOM INSTALLATION When the HydroMassage is installed in a closed room without a sufficient supply of cold air (300 CFM supply-and-return per machine), an external temperature control unit (ETCU) is required in order for the HydroMassage to be operated continuously without the risk of overheating.
  • Page 31 Two¾" conduits (separate conduit for water and power lines) are required within the wall adjacent to the HydroMassage unit, feeding a single gang box with a faceplate near the foot end of the HydroMassage Bed or rear of HydroMassage Lounge.
  • Page 32 HydroMassage Chimney / External Cooling System Heat Exhaust ® (Optional for 450 series) L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 31 of 36...

  • Page 33: Hydromassage® Maintenance Schedule

    2. Replace the rubber barrier. If assistance is needed, please call 727-536-5566. 3. Vacuum dust from external or cooling system intake (every 4-6 months if needed). L-300 Bed Quick Start Manual V2.0 20180312 JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com Page 32 of 36...
  • Page 34 Leave unplugged for 60 seconds. 3. Plug back in the 220v power and the touchscreen will power 4. Once the HydroMassage® software loads on the touchscreen, the HydroMassage® unit will start initializing 5. Wait approximately 45 seconds to finish initializing.

  • Page 35: Hydromassage® Installation Checklist

    IMPORTANT: For liability reasons, HydroMassage® technicians are not permitted to install or modify the External Cooling System above a customer’s room. Installation Follow the steps in the table below to professionally install HydroMassage® unit(s) at a customer site. NOTE: Refer to the appropriate HydroMassage® Quick Start Manual for full instructions.
  • Page 36 Provide staff training and guidance in the following area(s) prior to leaving site: • User Interface – Operation & Functionality IMPORTANT: Include a 1-3-minute HydroMassage® tour demo. • Cleaning and Maintenance • Basic Troubleshooting Confirm our goals of a Neat and Proper installation with authorized personnel prior to leaving premises.
