Cissell HF 234 Instruction Manual

Cissel washing machine with electronical timer models hf176, hf 234 instruction manual
Hide thumbs Also See for HF 234:
Table of Contents

Advertisement

Quick Links

See also: Spare Parts List
Part No. D0051

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF 234 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cissell HF 234

Summary of Contents for Cissell HF 234

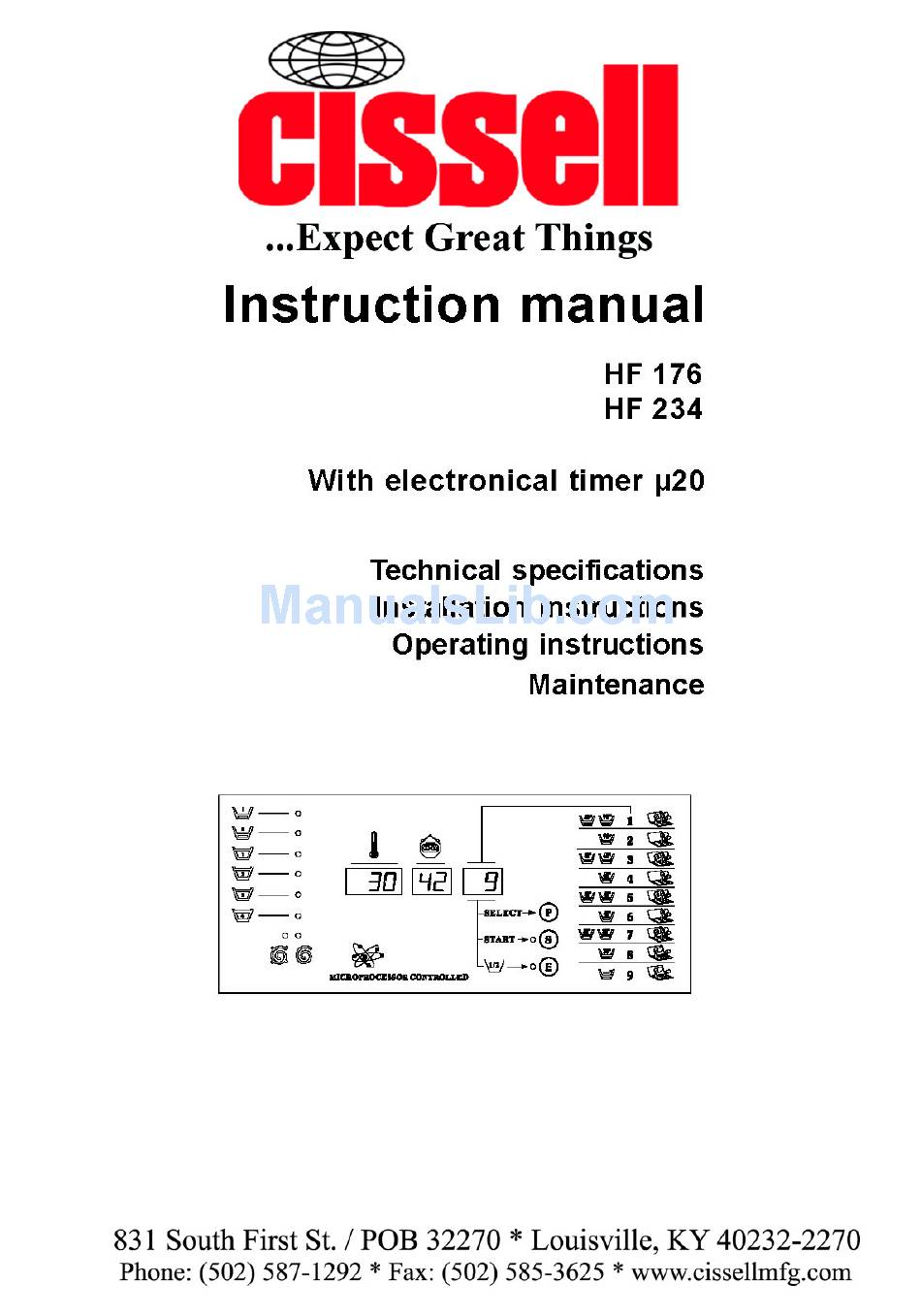

  • Page 1 Part No. D0051...

  • Page 2: Table Of Contents

    Contents 1 General safety instructions ... 3 2 Technical data and dimensions ... 4 Technical data ... 4 Dimensions ... 5 3 Installation and connection ... 6 Ground ... 6 Removing the transport brackets ... 6 Water connection ... 6 Water drain ...

  • Page 3: General Safety Instructions

    General safety instructions Remark: These instructions surely cannot prevent all risks of accidents. It is up to the user to act with the utmost precaution. Do not hesitate to contact the dealer in case of a problem. Ignoring any of the safety instructions can cause serious personal injury and can also cause damage to the linen or the machine Read the installation and instruction manual carefully before connecting the...

  • Page 4: Technical Data And Dimensions

    Electric 220/380 V Electric 380 V Steam Boiler fed Boiler fed (with auxiliary heating) (H x W x D) Gross HF 176 HF 234 16,0 kg 21,3 kg 17,6 kg 23,4 kg 19,5 kg 26,0 kg 750 mm 750 mm...

  • Page 5: Dimensions

    Dimensions A. Hard water connection 3/4" B. Warm water connection 3/4" C. Soft water connection 3/4" D. Electrical connection E. Electrical connection clamps F. Output steam valve G. Water drain H. Steam connection I. Ventilation soap dispenser...

  • Page 6: Installation And Connection

    Installation and connection Ground Removing the transport brackets Water connection The machine must be placed on a flat, solid surface (metal base, concrete or solid ground). It is recommended that the machine be anchored on the provided places base, especially (see Dimensions 2).

  • Page 7: Water Drain

    Water drain Main power connection Power of the breaker plugs: The machine is equipped with a drain valve with 3" outer diameter (80 mm). This drain valve should be connected to the drain by means of the drain elbow which is delivered with the machine. The diameter of the main drain should be adapted to the water flow and the number of machines.

  • Page 8: Electrical Connection Of Liquid Soap Pumps

    Liquid soap connection (option) Connection of the liquid soap hoses Electrical connection of the liquid soap pumps A rubber connection has been placed over the air break opening at the back of the machine. There are 5 holes in this rubber connection, through each of which a liquid soap hose can be driven (S1...S5).

  • Page 9: Steam Connection

    Steam connection The manufacturer is not responsible for damage or accidents caused by not following the installation instructions! With direct steam injection into the machine 1. Steam pipe 2. Steam cut-off valve 3/8" 3. Pipe coupling 3/8" 4. Steam filter 3/8" 5.

  • Page 10: Operating Instructions

    Operating instructions Machine with start button Opening the door Fill the drum Close the door Select program Add detergent Economy Wash Push the red button on the door handle to open the door. Sort the linen according to the type and required temperature of the linen. Empty all pockets of the garments so that no garments can be damaged and no left articles can cause damage to the machine.

  • Page 11: Start The Machine

    Start the machine Start the wash-cycle by pressing the Start button (S) and releasing it immediately. The door is sealed and the cycle-LED lights up. During the first 2 minutes after starting, the program number is blinking and you can change the program in case of a possibly wrong selection. To do so, select another program with the SELECT button (P).

  • Page 12: Manual Interventions During Program

    Manual interventions during the program During final spin, both the left spin-LED (intermediate spin) will light up together with the right spin-LED (final spin). - Functioning of the spin-LED’s during final spin: drain/distribution low spin Interm. spin blinking rapidly continuously Final spin continuously continuously...

  • Page 13: Description Of The Functions

    Description of the Function F1 (Time stop) functions During the wash cycle: The wash time is stopped. The temperature, water level and wash action remain the same as programmed. During the wash cycle, this function remains active until the START button (S) is pressed again.
  • Page 14 Function F3 (reduced wash action): By selecting F3, the wash action time and pause time will be reversed; unless the wash action time was programmed to be shorter than the pause time. Example: 12 sec. action/3 sec. pause becomes: 3 sec. action/12 sec. pause 6 sec.

  • Page 15: End Of A Program

    End of a program At the end of a program, while the door is being released, the left display shows End; and the Start-LED is switched off. After that only the right display will continue to show the program number. This is the end of the program.
  • Page 16 Remarks: Freely programmable stop-function Before starting a program it is possible to preprogram a time stop in every program segment. This function permits special additional functions like adding bleach or extra detergent to the wash bath. Programming: After selecting the program, press the ECO-button (E) and keep it depressed. Now push the START-button (S) simultaneously and release same.
  • Page 17 Linking 2 programs It is possible to run 2 programs automatically in sequence. This can be handy to perform very special functions (like waterproofing outerwear) and add these to the wash program. Programming: First select the program which will be run last. Now, press the START-button (S) and keep it depressed for at least 5 seconds.

  • Page 18: Standard Programs

    Standaard programma's The machine is standard equipped with 10 programs (0+9). These have been designed in cooperation with specialized detergent manufacturers to obtain the best possible wash results using the most frequently used detergents. Program 0 (starching) is mostly used in very special applications and is therefore not displayed on the front panel.

  • Page 19: Technical Remarks

    Technical remarks Internal connections of the electrical heating B = Black Br = Brown Gy = Grey Bu = Blue R = Red W = White PU = Purple W/B = White/black Y/Gr = Yellow/green W/R = White/red Tilt switch Window Probe Heating...

  • Page 20: Error Messages

    Error messages When one of the following malfunctions occurs during a program, the central display will communicate the appropriate error message at the end of the cycle. E3 (Eprom) The Eprom is wrong, replace it by another. Remark : For coin op machines, it is possible that a program number appears on the right display in combination with E3.
  • Page 21 E9 (motor protection) The thermo-magnetic protection was activated 5 times. EA (tilt) The tilt switch was activated 15 times during final spin and the final spin was therefore skipped. Eb (tilt switch) The tilt switch is blocked. Mot 2 ( rotation sensor) The speed detection is not operating properly.

  • Page 22: Maintenance Of The Machine

    Maintenance of the machine General maintenance Periodical maintenance Repair and after-sales service Data distributor: Data machine: The manufacturer reserves the right to change the content of this instruc- tion manual, at all times and without previous notice. Clean the entire cabinet of the machine regularly and remove all traces of soap, etc...

This manual is also suitable for:

Hf 176
