Playhouse Wood Roof Instructions
PA-MAN-RFWPH-03

Advertisement

loading
Need help?

Need help?

Do you have a question about the PA-MAN-RFWPH-03 and is the answer not in the manual?

Questions and answers

Summary of Contents for WOODPLAY PA-MAN-RFWPH-03

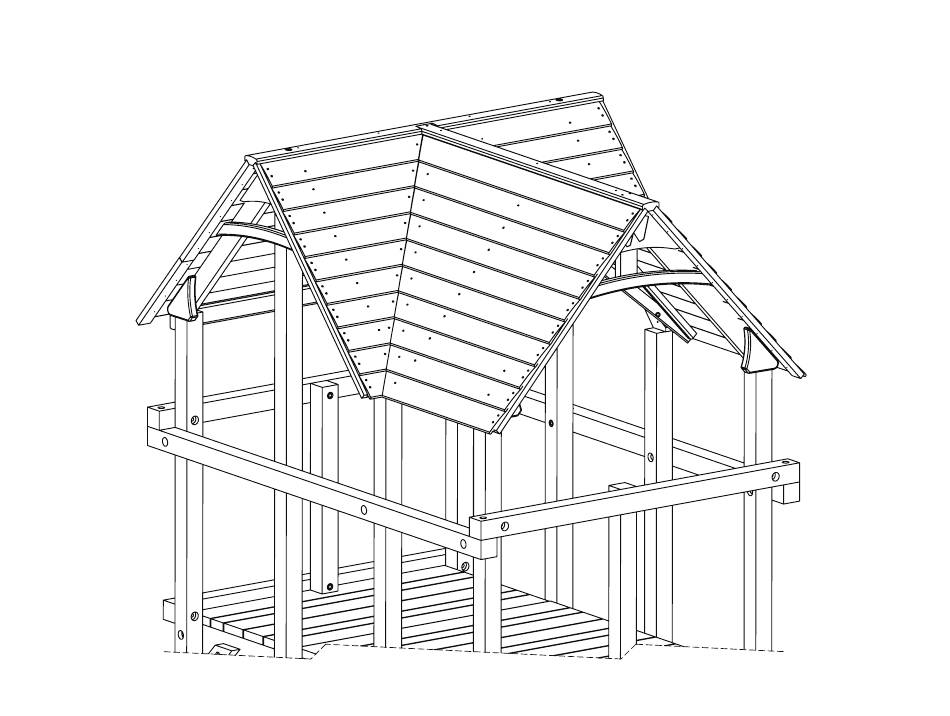

  • Page 1 Playhouse Wood Roof Instructions PA-MAN-RFWPH-03...
  • Page 2 RW-4X4-090-VRS 89-7/8" Vertical Roof Support NOTE: Ends of Horizontal Roof Support should be flush with outside of Vertical Roof Support RW-2X4-061-HRS Horizontal Roof Support 60 5/8" 3/8" Flat Washer 3/8" X 5 1/2" LAG SCREW 3/8" X 5 1/2" LAG SCREW 3/8"...
  • Page 3 NOTE: NOTCH 3/8" X 4 1/2" LAG SCREW DIRECTION RW-CAP-073-SGL-GAB 3/8" Flat Washer 73 1/4" Single Gable Roof Cap #10X4" PH FLAT HD WDSCR RW-RFT-GAB-SGL-L RW-RFT-GAB-SGL-R Gable Rafter Assembly Left Gable Rafter Assembly Right Set Roof Cap on top of Vertical Roof Support.
  • Page 4 #10X4" PH FLAT HD WDSCR RW-CAP-065-GAB 65 3/8" Gable Roof Cap RW-RFT-GAB END Gable End Rafter Assembly Attach Roof Cap to Gable End Rafter Assembly...
  • Page 5 #10X2-1/2 PH FLAT HD WDSCR Set assembly from last step into place and attach as shown. #10X4" PH FLAT HD WDSCR...
  • Page 6 End With Flat at Top 1/4" X 2 1/2" LAG SCREW 1/4" Flat Washer RW-RFW-074-029-T 74-3/4 X 28-13/16 ROOF PANEL Insert Roof Panel RW-RFW-074-020 Completely into Cap 74-3/4 X 19 1/4" ROOF PANEL RW-2X3-045-RFT 2 x 3 x 45-1/8" Rafter Insert Top Roof Panel completely into Roof Cap and secure as shown.
  • Page 7 RW-RFW-035-048-V-R 1/4" X 2 1/2" LAG SCREW 47 5/8" "V" Roof Panel Right RW-RFW-035-048-V-L 47 5/8" "V" Roof Panel Left 1/4" Flat Washer Insert Roof Panel Completely into Cap Insert Top Right "V" Roof Panel completely into Roof Cap and secure as shown. Repeat for Left "V"...
  • Page 8 #10X2-1/2 PH FLAT HD WDSCR RW-RFW-064-048-G-R 47 5/8" "Gable” Roof Panel Right #10X2-1/2 PH FLAT HD WDSCR 1/4" Flat Washer 1/4" X 2 1/2" LAG SCREW Insert Top Left Gable Roof Panel completely into Gable Roof Cap and secure as shown. Repeat for Right Gable Roof Panel Attach center of Vertical...
  • Page 9 This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability or fitness for use. Woodplay does not assume or authorize any person to assume for us, any other liability in connection with the sale of our products.
