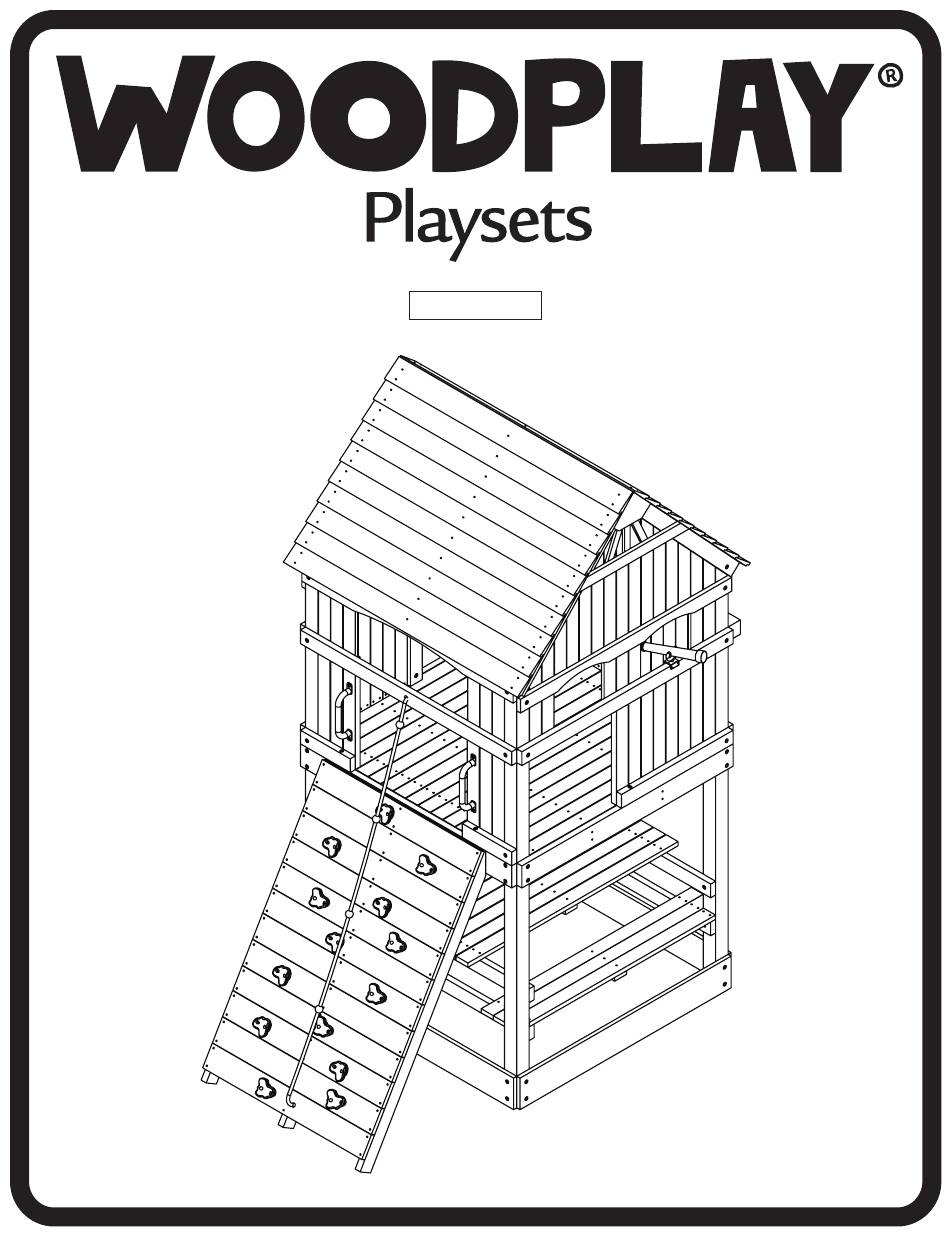

- Page 1 PG123MLW MONKEY LOFT PG-MA-0023-02 817 Maxwell Avenue • Evansville, IN 47711 • 1-800-GO-SWING • www.escaladesports.com • ©2016 Escalade Sports...
-
Page 2: Parts List
PARTS LIST ITEM NUMBER PART NUMBER DESCRIPTION QTY. PG-54-0011 ENCLOSURE WINDOW SIDE PG-54-0012 ENCLOSURE WINDOW FRONT PG-14-0015 47 ¼" ENCLOSURE SLAT PG-14-0017 69 ½" ENCLOSURE SLAT PG-14-0016 51 1/4" ENCLOSURE SLAT PG-14-0005 17 ½" ENCLOSURE SLAT PG-14-0006 21 1/4" ENCLOSURE SLAT PG-14-0008 24 3/4"... -
Page 3: Standard Parts
STANDARD PARTS 21 1/4" ENCLOSURE SLAT 25 ½" ENCLOSURE SLAT PG-14-0006 15 1/4" ENCLOSURE SLAT 17 ½" ENCLOSURE SLAT PG-14-0001 PG-14-0004 (18) PG-14-0005 26 1/4" ENCLOSURE SLAT 24 3/4" ENCLOSURE SLAT 22 ½" ENCLOSURE SLAT 28 ½" ENCLOSURE SLAT PG-14-0009 PG-14-0008 PG-14-0007 PG-14-0010... - Page 4 Measurement taken from bottom of bolt head to the bottom of bolt 5/16” x 2.5" Hex Lag Screw PG-HW-L003...
- Page 5 SAFETY RAIL WINDOW ENCLOSURE INSTALLATION SB SUPPORT BOARD PARTS NEEDED ENCLOSURE WINDOW SIDE-PG-54-0011 #02 ENCLOSURE WINDOW FRONT-PG-54-0012 HARDWARE NEEDED 5/16" FLAT WASHER 5/16" - 2.5" LAG SCREW ROOF NOT SHOWN SAFEY RAIL FLUSH SAFETYRAIL SAFETY RAIL 1. From the top of the Safety Rails and SB Support Board FLUSH measure up 11 3/8"...
- Page 6 PARTS NEEDED 41" ENCLOSURE SLAT PG-14-0012 15 1/4" ENCLOSURE SLAT PG-14-0004 25 1/2" ENCLOSURE SLAT PG-14-0001 HARDWARE NEEDED #8 X 1.5" SCREW (32) ROOF NOT SHOWN ROPE HOLE SIDE ENCLOSURE SLAT INSTALLATION 1. Arrange items #14, #15 and #18 on both sides of opening (AS SHOWN).
- Page 7 ROOF NOT SHOWN ENCLOSURE SLAT INSTALLATION PARTS NEEDED 1. Arrange items #14 on both sides of opening and 41" ENCLOSURE SLAT PG-14-0012 #18 and #19 under window (AS SHOWN) 25 1/2" ENCLOSURE SLAT PG-14-0001 HINT: TO ACHIEVE PROPER SPACING STAND BOARDS UP 27"...
-
Page 8: Parts Needed
PARTS NEEDED 47 1/4" ENCLOSURE SLAT PG-14-0015 ENCLOSURE SLAT INSTALLATION 69 1/2" ENCLOSURE SLAT PG-14-0017 51 1/4" ENCLOSURE SLAT PG-14-0016 17 1/2" ENCLOSURE SLAT PG-14-0005 21 1/4" ENCLOSURE SLAT PG-14-0006 24 3/4" ENCLOSURE SLAT PG-14-0008 28 1/2" ENCLOSURE SLAT PG-14-0010 ROOF NOT SHOWN 22 1/2"... - Page 9 PARTS NEEDED ENCLOSURE SLAT INSTALLATION 47 1/4" ENCLOSURE SLAT PG-14-0015 69 1/2" ENCLOSURE SLAT PG-14-0017 51 1/4" ENCLOSURE SLAT PG-14-0016 ROOF NOT SHOWN 17 1/2" ENCLOSURE SLAT PG-14-0005 21 1/4" ENCLOSURE SLAT PG-14-0006 24 3/4" ENCLOSURE SLAT PG-14-0008 28 1/2" ENCLOSURE SLAT PG-14-0010 22 1/2"...
- Page 10 This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability or fitness for use. Woodplay does not assume or authorize any person to assume for us, any other liability in connection with the sale of our products.
