Oriflow Rhino Operating Instructions Manual

Duct leakage tester metric
Hide thumbs Also See for Rhino:
Table of Contents

Advertisement

Quick Links

Download this manual

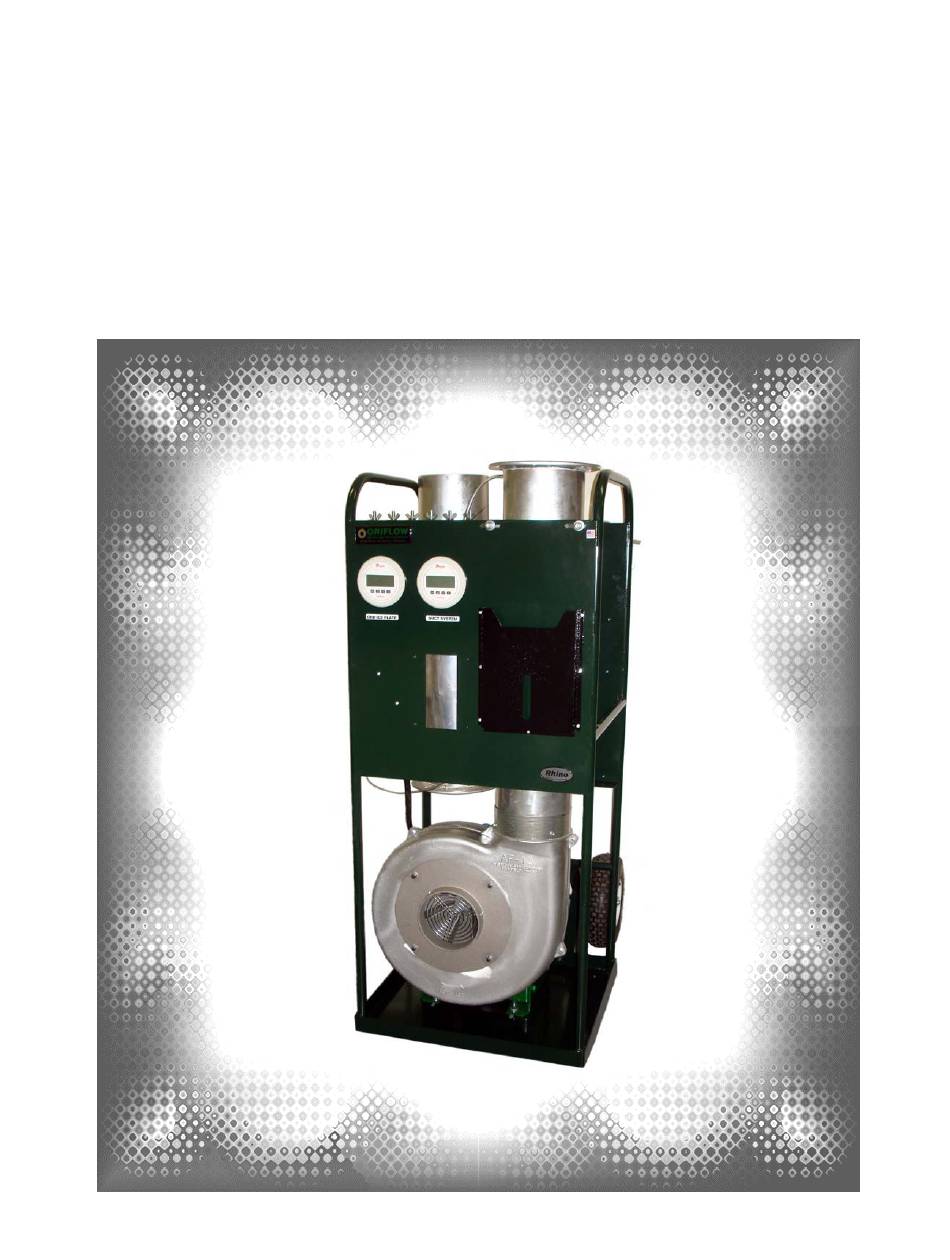

Operating Instructions for
Rhino
Duct Leakage Tester
(Metric)
© Copyright 2015 ORIFLOW LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rhino and is the answer not in the manual?

Questions and answers

Related Manuals for Oriflow Rhino

Summary of Contents for Oriflow Rhino

  • Page 1 Operating Instructions for Rhino Duct Leakage Tester (Metric) © Copyright 2015 ORIFLOW LLC...

  • Page 2: Table Of Contents

    Determining Leakage Rate……………………………… 17 - 19 Troubleshooting Zero reading on “DUCT SYSTEM” gauge …………..Zero reading on “ORIFICE PLATE” gauge …………….. Can’t obtain system test pressure ……………………… “ORIFICE PLATE” gauge reading maxed out………..© Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 3: Introduction

    These operating instructions are for ORIFLOW model RHINO air leakage tester. Take pride in knowing that you have purchased the best air leakage tester on the market. It is no secret that Oriflow manufactures the highest quality testers, and has unparalleled customer service and technical support.

  • Page 4: Prior To Testing

    Do you have an adequate power supply for your tester (see Table 1)? Table 1 – Tester Amp Draw Flow Tester Full Load Voltage Control Phase Model Amps Option Slide Gate Slide Gate Rhino Slide Gate Slide Gate © Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 5: Extension Cord Requirements

    If the specification uses leakage class, you will need to calculate the total duct system surface area. Oriflow has a free Adobe form available to our customers that will calculate duct surface area given the duct shape, dimensions and length.

  • Page 6: Determining Which Orifice Plate To Use

    After determining the allowable leakage at the system test pressure, refer to the following tables for the capacities of each orifice plate available for the RHINO model tester. Make sure you have an orifice plate that can measure the maximum allowable leakage.
  • Page 7 2000 2500 3000 3500 4000 Table 6 – Tester Capacities using the 100 mm Orifice Plate System Static Minimum Maximum Pressure Leakage* Leakage (L/s) (Pa) (L/s) 1000 1500 2000 2500 3000 3500 4000 © Copyright 2018 ORIFLOW LLC Rev: 03-2018...
  • Page 8 2000 2500 3000 3500 4000 Table 8 – Tester Capacities using the 159 mm Orifice Plate System Static Minimum Maximum Pressure Leakage* Leakage (L/s) (Pa) (L/s) 1000 1500 2000 2500 3000 3500 4000 © Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 9: Install Orifice Plate And Upper Tube Section

    Refer to Figures 1 through 4. Figure 1 – Install Orifice Plate and then Rotate Clockwise Figure 2 – Rotate Orifice Plate Clockwise until it Locks in Place © Copyright 2018 ORIFLOW LLC Rev: 03-2018...
  • Page 10 After the orifice plate is locked in place, place the upper tube section over the bolt/wing nut set, rotate clockwise, and tighten wing nuts (Figures 3 and 4). Figure 3 – Install Upper Tube Section and Rotate Clockwise Figure 4 – Tighten Wing Nuts after Rotation © Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 11: Connect Flexible Duct To Orifice Tube

    Make sure that the connection where you connect the flexible duct is a sturdy, sealed tight connection. You don’t want to create a leaky connection where the tester is supplying air into the system. Figure 7 – Connection to Duct System © Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 12: System Test Pressure Connection

    Note you will need an inlet transition to attach to the blower inlet when performing a return/exhaust test. The dimensions of the transition required depends on whether you have a Rhino model with an inlet slide gate or VFD for flow control. See Figure 11 and 12 for inlet transition dimensions required.

  • Page 13: Duct Leakage Test Setup (Supply)

    2. Insert tubing 150 to 300 mm Tap into existing 3. Seal penetration with putty outlet if possible Cap and seal all outlets Figure 9 – Duct Leakage Test Setup for a SUPPLY System © Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 14: Duct Leakage Test Setup (Return/Exhaust)

    Figure 10 – Duct Leakage Test Setup for a RETURN/EXHAUST System © Copyright 2018 ORIFLOW LLC Rev: 03-2018...
  • Page 15 Figure 11 - Inlet Transition Required for Rhino with Inlet Slide Gate Figure 12 - Inlet Transition Required for Rhino with VFD Speed Controller © Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 16: Zeroing Pressure Gauges

    6. Press MENU button two times to get back to the pressure reading. 7. Pressure should be reading zero or within +/- 5 Pa If not, repeat steps. © Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 17: Avoiding Over-Pressurization

    Turn the blower on and slowly open the inlet slide gate for models without the speed control option. If your tester has the VFD speed controller, rotate speed control knob slowly clockwise to obtain system test pressure. Figure 15 – Obtaining System Test Pressure © Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 18: Determining Leakage Rate

    Always refer to the calibration certificate(s) that came with your calibrated orifice plate(s). Figure 17 –ORIFICE PLATE Gauge Reading (analog on left, digital on right) © Copyright 2018 ORIFLOW LLC Rev: 03-2018...
  • Page 19 194 L/s using the calibration certificate shown in Figure 18 (see arrow). For an exact value, use the equation that comes with every calibration certificate. For the ORIFICE PLATE gauge reading shown in Figure 17: Leakage = 7.206 x © Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 20: Troubleshooting

    (for this example, the constant is "7.206"). The exact leakage is 7.206 x (square root of 725) = 194.0 L/s. Oriflow has FREE Adobe forms available that will calculate the leakage, leakage factor, allowable leakage, Pass/Fail criteria and duct surface area among other variables (www.oriflow.com/freeform).

  • Page 21: Zero Reading On "Orifice Plate" Gauge

    If you feel a lot of air coming out of the tube end, you should see a pressure reading on the gauge “ORIFICE PLATE”. © Copyright 2018 ORIFLOW LLC Rev: 03-2018...

  • Page 22: Can't Obtain System Test Pressure

    Hot water coils and electric heaters,  Open duct end that was supposed to be sealed/capped-off for the leak test. A non-toxic smoke machine is an excellent tool for locating significant sources of leakage. Call ORIFLOW at 727-400-4881 or online at www.oriflow.com for more information.
