Chapter 3. Instrument Description

This chapter describes the Auto T4 instrument components, device label and system specifications.

AUTO T4 COMPONENTS

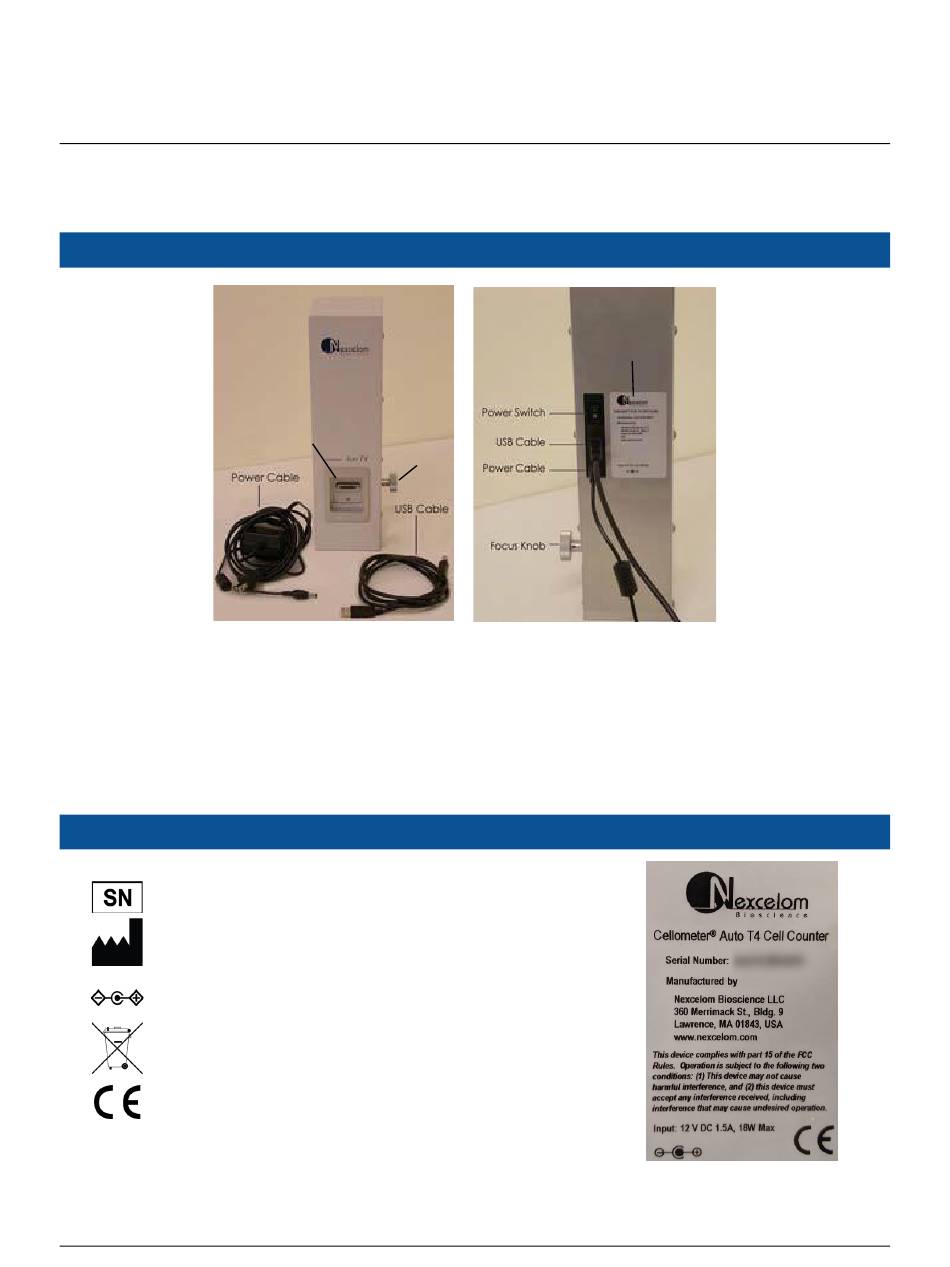

Front View
Auto Sample Slot: Chambered slides are inserted through this slot for viewing (accepts only one slide at a time).
Focus Knob: Radial dial used to focus the camera.
Power Switch: Controls power going to the instrument.
USB 2.0 Port: Port used to connect the Auto T4 to the Operating Computer.
Power Cord Connector Input: Port used to connect the power supply to the Auto T4.
Device Label: Lists the instrument serial number (SN), model, manufacturer and input power requirement.

DEVICE LABEL

Serial Number
Manufacturer
Polarity DC Power Connector
Waste Electrical and Electronic Equipment Directive
Conformité Européenne 93/42/EEC
8001009 Cellometer® Auto T4 User Manual Rev C
Auto Sample Slot
Focus Knob
Back View
Device Label
