Tyco RAVEN 5.6K Manual

RAVEN 5.6K Institutional Sprinklers
Pendent and Horizontal Sidewall
Quick Response, Standard and Extended Coverage
General
Description

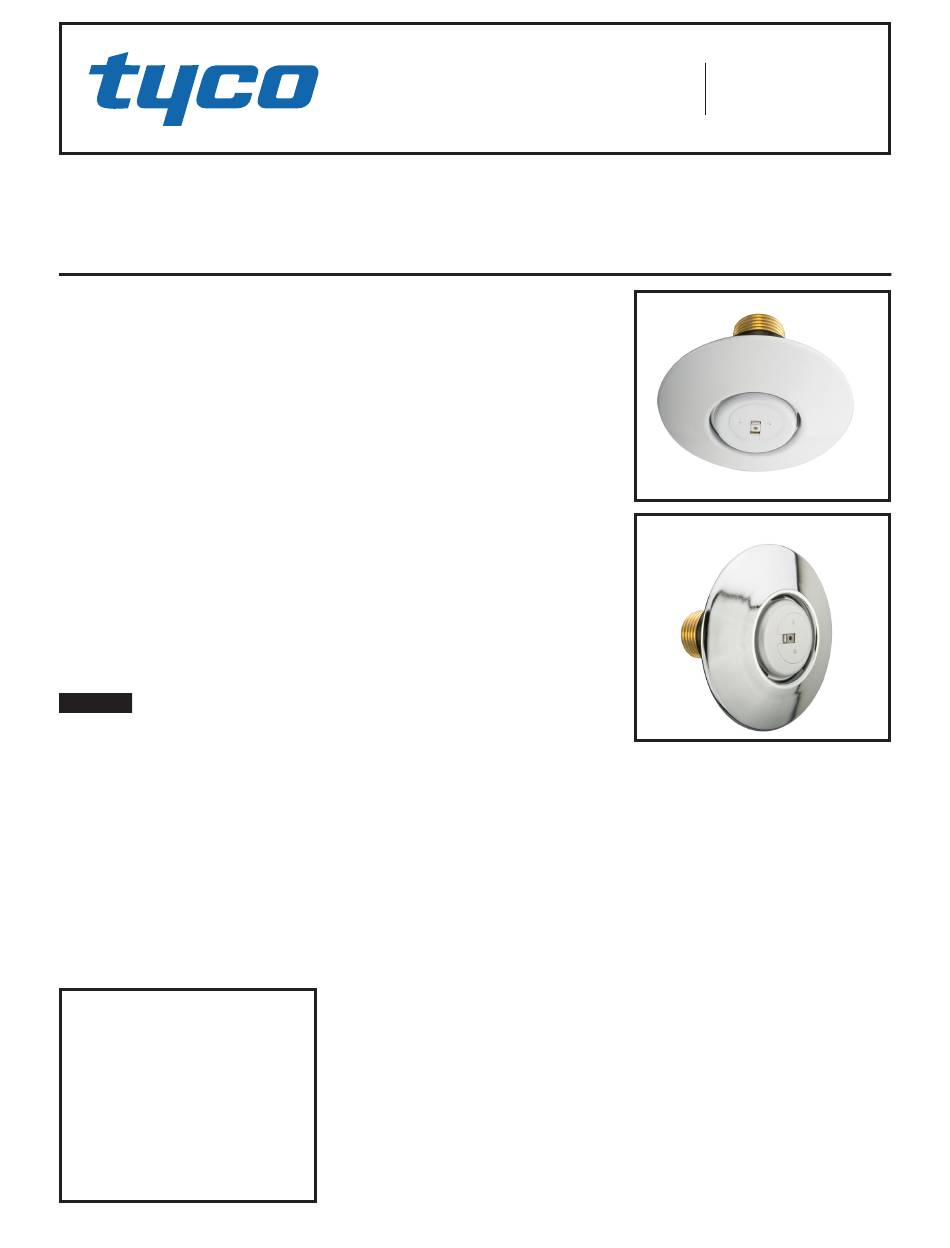

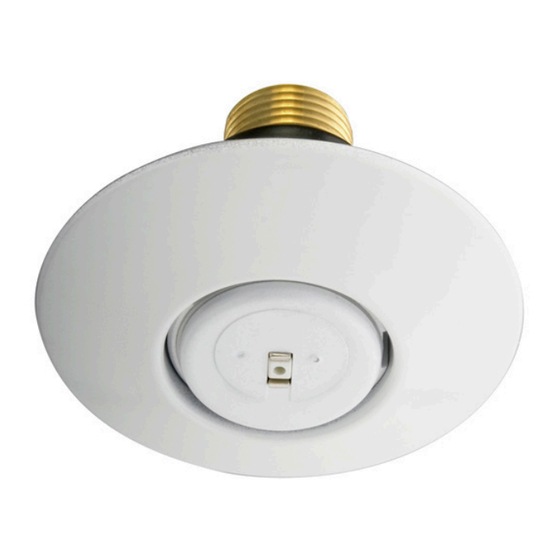

TYCO RAVEN 5.6K Institutional
Pendent and Horizontal Sidewall
Sprinklers are quick response spray
sprinklers designed for use in areas
such as correctional, detention, and
mental health care facilities as well as
other commercial buildings. Both the
pendent and horizontal sidewall styles
are available for standard or extended
coverage applications.
• The assembly is designed with tam-
per-resistant features.
• This protected, unobtrusive design
helps reduce the opportunity for indi-
viduals to injure themselves or others
with sprinkler components.
• The flush design is aesthetically ap-
pealing by concealing all operating
parts.
NOTICE
RAVEN Institutional Sprinklers de-
scribed herein must be installed
and maintained in compliance with
this document and with the appli-
cable standards of the National Fire
Protection Association, in addition to
the standards of any Authorities Having
Jurisdiction. Failure to do so may impair
the performance of these devices.
Tyco Fire Protection Products specifi-
cally disclaims any liability for damag-
es or injury (including death) arising out
of or caused by manipulation, disman-
tling, or misuse of RAVEN Institutional
Sprinklers or the use or attempted use
of the RAVEN Institutional Sprinklers or
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and
installation of sprinkler systems and
components. Improper handling and
installation can permanently damage
a sprinkler system or its components
and cause the sprinkler to fail to
operate in a fire situation or cause it
to operate prematurely.
Page 1 of 10
any component thereof as an instru-
ment unrelated to its intended function
as a fire protection device.
Owners are responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or manufac-
turer should be contacted with any
questions.
Sprinkler
Identification
Numbers (SINs)
SIN DOT APPLICATION
COLOR*
TY3281 Black Pendent
Standard Coverage
TY3282 Green Pendent
Extended Coverage
TY3381 Red HSW
Standard Coverage
TY3382 Purple HSW
Extended Coverage
* Refer to Figures 1 through 4 for SIN Color Dot
location.
Technical
Data
Approvals
UL and C-UL Listed
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connection
1/2 inch NPT
Discharge Coefficient
K=5.6 GPM/psi 1/2 (80,6 LPM/bar
JANUARY 2012
Technical Services
+1-401-781-8220
www.tyco-fire.com
Temperature Rating
165°F (74°C)
Finish
Sprinkler: Chrome or White
Escutcheon: Chrome or White
Physical Characteristics
Body . . . . . . . . . . . . . . . . . . . . . Brass
Deflector Assembly . . . . . . . . Bronze
Sealing Assembly. . . Beryllium Nickel
Link Assembly . . . . . . . . . . . . Copper
1/2 )
800-381-9312
with TEFLON
TFP651
